Aven Tools 26800B-373-12 SPZHT-135 Trinocular Microscope, 21x–135x, USB 6MP Camera & Ultra-Glide Stand
Aven Tools 26800B-373-12 SPZHT-135 Trinocular Microscope, 21x–135x, USB 6MP Camera & Ultra-Glide Stand

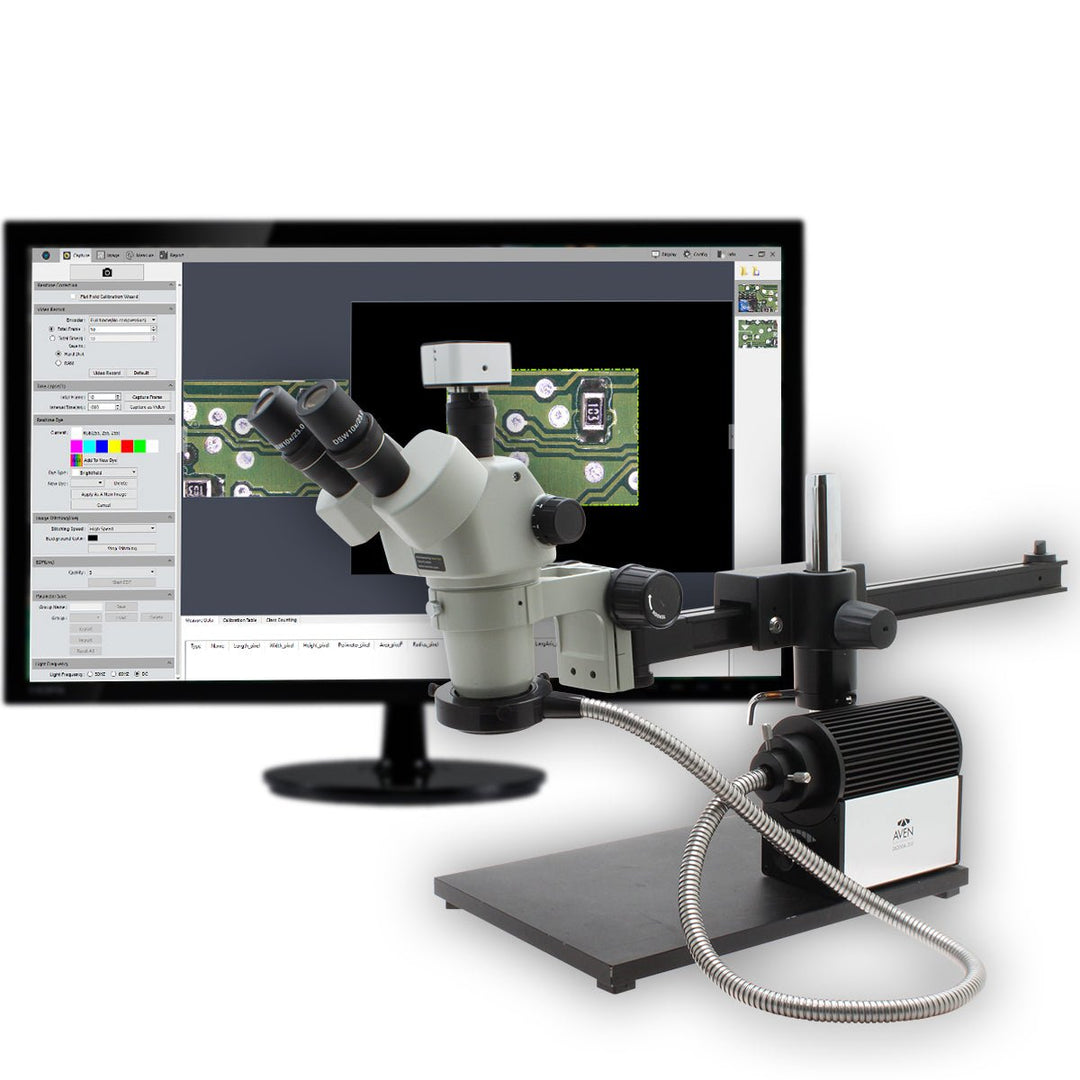

The Aven Tools 26800B-373-12 inspection system combines an SPZHT-135 trinocular stereo zoom microscope, Mighty Cam 3.0 USB 6MP color camera, Ultra-Glide boom stand, E-Arm focus mount and LED fiber-optic ring illumination. Its 21x–135x optical magnification and 84 mm working distance support detailed inspection, while the 23-inch gliding arm lets operators smoothly scan across larger workpieces.
Examine the assembly through the eyepieces, glide the microscope to the next inspection point, then capture images on a compatible Windows PC. Included imaging software supports annotations, measurement calibration, reports, panoramic stitching and real-time depth-of-field adjustment. This is a USB imaging bundle, not the Mighty Cam Pro autofocus/HDMI system; a monitor is not listed in this package.
Best Uses / Applications
- Electronics assembly and PCB visual inspection.
- Quality-control examination of larger parts and multiple inspection points.
- Precision assembly where optical stereo viewing and image documentation are both needed.
- Research, training and shared inspection through a PC display.
- Documenting surface features with annotated images and inspection reports.
- Calibrated dimensional measurements and panoramic imaging workflows.
Key Features
- SPZHT-135 trinocular Greenough stereo optics with click-stop zoom.
- 21x–135x optical magnification with the detailed specification's 15x widefield eyepieces.
- 45° inclined eyepieces, adjustable interpupillary distance and diopter adjustment on both eyepiece tubes.
- One-touch fine-focus adjustment at the trinocular camera port.
- 26100-244 USB 3.0 color camera with Sony 6MP CMOS sensor and 3072 × 2048 resolution.
- Included imaging software for capture, annotations, measurements, reporting and stitching.
- Ultra-Glide stand with locking adjustments, heavy metal base and safety collar.
- Separate adjustable LED fiber-optic illumination with ring light and adapter.
Microscope Specifications
| Manufacturer / MPN | Aven Tools / 26800B-373-12 |
|---|---|
| Microscope / Viewing Head | SPZHT-135 / trinocular |
| Optical System | Greenough stereo zoom |
| Included Magnification | 21x–135x |
| Eyepieces | 15x widefield, inclined at 45°, per detailed specifications |
| Optional Magnification | Up to 180x with optional 20x eyepieces |
| Working Distance | 84 mm / 3.3 inches |
| Interpupillary Distance | 50–74 mm |
| Diopter Adjustment | +5.6D to −7.2D on both eyepieces |
| Trinocular Port | One-touch fine-focus adjustment |
| Published Microscope Weight | 15 lb, component specification |
Manufacturer source note: The introductory copy mentions 10x eyepieces, while the detailed features, specifications and microscope package contents identify 15x eyepieces. The detailed 15x configuration is used here. Some section headings say binocular, but the product title and body specification identify a trinocular system. Confirm supplied eyepieces if configuration is critical.
USB Camera Specifications
| Camera | 26100-244 Mighty Cam 3.0 |
|---|---|
| Sensor | Sony 6MP color CMOS, 1/1.8-inch IMX178, as listed by Aven |
| Pixel Size | 2.4 × 2.4 µm |
| Resolution | 3072 × 2048 pixels |
| Published Frame Rate | 40 FPS at 6MP |
| Published Shutter Mode | Global, per manufacturer table |
| Automatic Settings | Exposure, color scale and white balance |
| Color Temperature Adjustment | 2000–15000 K |
| ADC Depth | 12 bit |
| Image Formats | JPG, PNG, TIFF |
| Data / Optical Interface | USB 3.0 / standard C-mount |
| Software / Operating System | Included / Windows |
| Published PC Configuration | Intel Core i5 or better, quad-core or more; 8 GB RAM or more; Windows 7/8/10 64-bit |
| Multiple Cameras | Software supports four cameras simultaneously; one camera listed in this bundle |
| Camera Dimensions / Weight | 68 × 68 × 44 mm / 330 g |
These are manufacturer-published specifications. Confirm software compatibility before deploying on an operating system not listed above. Calibrate measurements for the optical configuration and zoom setting before using them for acceptance decisions; the supplied source does not specify a measurement-accuracy tolerance.
Stand & Lighting Specifications
| Stand / Focus Mount | 26800B-556 Ultra-Glide / 26800B-518 E-Arm |
|---|---|
| Base Size / Weight | 15 × 10.5 inches / 35 lb, component specification |
| Vertical Post Length / Diameter | 13.5 inches / 37.2 mm |
| Extension Post Length | 225 mm / 8.85 inches |
| Horizontal Arm | 23 inches / 584.2 mm |
| Focus-Mount Hole | 5/8 inch / 15.875 mm |
| Illuminator | 26200A-310 LED fiber-optic illuminator |
| Input | 96–265 VAC, 50–60 Hz |
| Published Power | 20 W in details/specifications; 24 W in package list |
| Color Temperature | 5600 K |
| Published Illumination Intensity | Up to 1600 lx; test conditions not stated |
| Noise | Less than 30 dB |
| Ambient / Working Temperature | 5–45°C / less than 53°C |
| Expected Lamp Life | 10,000 hours |
| Ring Light / Adapter | 26200A-402 / 26800B-460 |
Lighting source discrepancy: Aven lists the same 26200A-310 illuminator as 20 W in the detailed specifications and 24 W in the package list. Confirm the supplied version if its power rating is important. This bundle uses a separate fiber-optic ring light, not an LED ring integrated into the focus mount. The illuminator's anti-static metal-construction claim does not establish an ESD-safe rating for the complete system.
Configuration Comparison
| Configuration | Best Fit / Distinction |
|---|---|
| This SPZHT-135 USB 6MP bundle | Optical stereo viewing plus PC-based capture, annotation, measurement and reporting. |
| Optical-only microscope setup | Eyepiece inspection without this bundle's included USB imaging workflow. |
| Mighty Cam Pro HDMI bundle | A separate configuration for autofocus and HDMI workflows; those features are not claimed for this USB camera. |
| Optional 20x eyepieces | Extend the published optical range to 180x; not listed as included here. |
Package Contents
- SPZHT-135 trinocular microscope body with 15x eyepieces, per detailed package specification.
- 26100-244 USB 3.0 camera with imaging software.
- 26800B-556 Ultra-Glide boom stand with metal base.
- 26800B-518 E-Arm focus mount.
- 26200A-310 fiber-optic illuminator.
- 26200A-402 fiber-optic ring light.
- 26800B-460 ring-light adapter.
Frequently Asked Questions
What magnification is included?
The system is listed at 21x–135x optical magnification. Detailed specifications identify 15x eyepieces; the introductory 10x mention conflicts with those details.
Is a computer required?
A compatible Windows PC is required for the USB camera and software workflow. Optical eyepiece viewing does not depend on a computer.
Is a monitor included?
No monitor is listed in the manufacturer's package contents for this configuration.
Does it have Mighty Cam Pro autofocus or HDMI?
This package lists the 26100-244 Mighty Cam 3.0 USB camera, not Mighty Cam Pro. Autofocus and HDMI are not established by the supplied specifications.
What is the working distance?
Aven lists 84 mm, approximately 3.3 inches, for this microscope configuration.
Can the software measure and stitch images?
Yes. Aven lists calibrated measurements, annotations, reporting, real-time panoramic stitching and depth-of-field adjustment. Measurement calibration is required.
Why choose an Ultra-Glide stand?
The 23-inch gliding arm makes it easier to scan a large work area, with locking adjustments and a heavy metal base for positioning.
Is the lighting 20 W or 24 W?
Aven's source conflicts: 20 W in the detailed specifications and 24 W in the package list. Confirm the supplied illuminator version if needed.
Can it reach 180x?
Aven lists up to 180x with optional 20x eyepieces. Those eyepieces are not listed in this bundle.
