ACL Staticide DMP2436LB Light Blue 24" x 36" Dualmat Kit
ACL Staticide DMP2436LB Light Blue 24" x 36" Dualmat Kit
MTE Solutions assembles this ESD workstation bundle around the ACL Staticide DMP2436LB light blue Dualmat. It combines a mat with listed grounding and care accessories for electronics assembly, inspection and repair. This is an MTE-assembled combo, not an ACL factory-packaged kit.

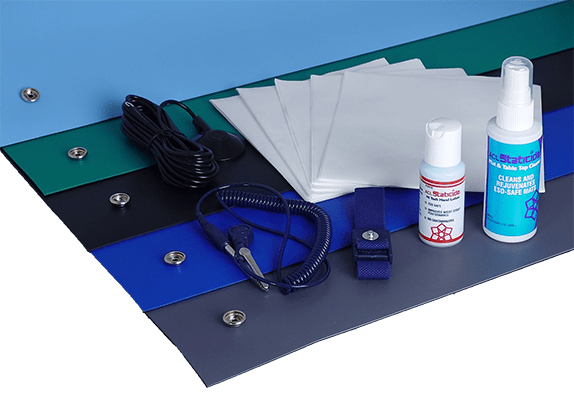

Bundle Contents
- DMP2436LB: light blue 24" x 36" x 0.080" Dualmat
- 8090: ground cord
- 6001S: mat cleaner
- 7001S: hand lotion
- 8150: wrist strap and cord combo
- LF50S: wipe sample
Best Uses / Applications
Suitable for setting up an electronics assembly, component-handling, repair or inspection bench with a 24" x 36" mat area. Connect the mat and personal grounding equipment according to your facility's ESD-control procedures, and use the listed care supplies for mat maintenance.
ACL Dualmat Specifications
| Mat part number | DMP2436LB |
|---|---|
| Color and size | Light blue; 24" x 36" x 0.080" |
| Material | Two-layer cross-linked rubber with static-dissipative top and conductive bottom |
| Surface and attachment | Embossed finish; two 10 mm female snaps on pre-cut mat |
| Manufacturer-stated resistance | Top: 10^6–10^8 ohms; bottom: less than 5 × 10^5 ohms |
These are ACL mat specifications, not certification of the MTE bundle or a finished workstation. Proper grounding and ESD-program requirements must be assessed after installation.
How to Choose
Choose this 24" x 36" combination when you need the listed mat, grounding and maintenance items together. A mat alone may suit a bench already stocked with those accessories; longer Dualmat formats are an option where more coverage is needed. Check each bundle's own contents before ordering.
Frequently Asked Questions
Is this an ACL factory kit?
No. MTE Solutions assembles the listed combination.
Does it include a wrist strap?
Yes, the listed 8150 wrist strap and cord combo.
What size and color is the mat?
Light blue, 24" x 36" x 0.080".
How does the mat attach to ground?
The pre-cut mat has two 10 mm female snaps; an 8090 ground cord is included. Follow your facility's grounding instructions.
Does this purchase certify my workstation to ANSI/ESD S20.20?
No. Installed grounding and overall ESD-program conformity must be evaluated separately.
