JBC Tools PHXL-SA, XL PCB Support
JBC Tools
SKU: PHXL-SA
JBC Tools PHXL-SA, XL PCB Support
JBC Tools
SKU: PHXL-SA
Regular price$2,100.00
$2,100.00
/
JBC Tools PHXL-SA, XL PCB Support

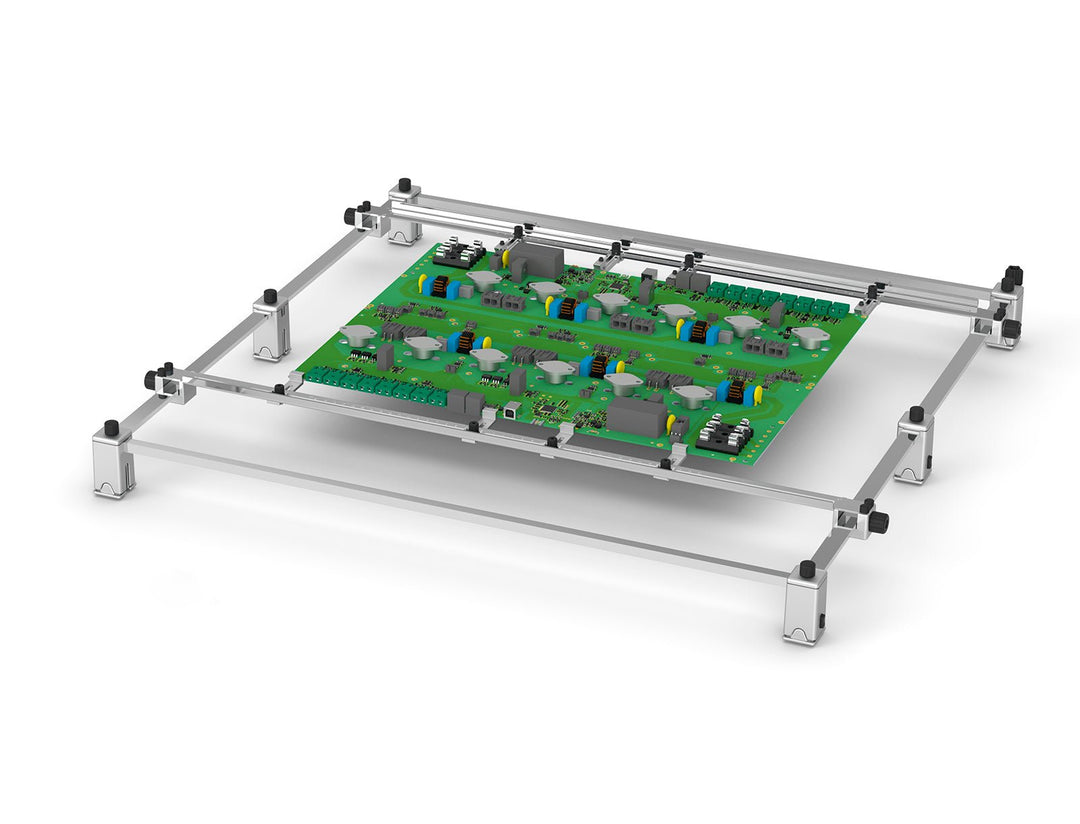

This support is perfectly adapted to any type of big-sized PCB up to 510 x 610 mm / 20 x 24 in. by means of its many adjustable elements.
It allows fast, easy and precise PCB changing, guaranteeing a proper positioning, ideal for repetitive soldering jobs which means saving time and optimizing workflow.
It can provide up to 3 height sizes.
When combined with the PHX XLPreheater its built in slots ensures a precise board-preheater alignment to always heat the same area. It is also possible to use the PSM Metallic PCB Supports for your working level. Arranging them between the board and the Preheater stabilizes and prevents the PCB deflection.
PRODUCT COMPOSITION
1 PSX XL PCB Support
SPECIFICATIONS
ESD safe connector
DIMENSIONS AND WEIGHT
Net weight: 4,42 kg (9.74lb)
MAX. DIMENSIONS
Low position
75.3 x 73.7 x 7.8 cm
29.65 x 29.02 x 3.07 in
High position
75.3 x 73.7 x 9.8 cm
29.65 x 29.02 x 3.86 in
Package
82 x 80 x 23 cm / 23 kg
