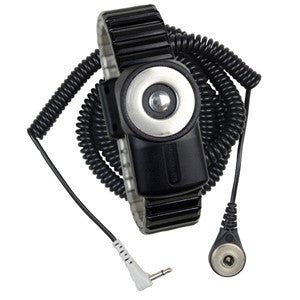

SCS 2231, Wrist Strap, Dual-Wire, Magsnap 360, Metal, Small Band, 12' Cord

SCS 2231, Wrist Strap, Dual-Wire, Magsnap 360, Metal, Small Band, 12' Cord

The SCS 2231 is a dual-wire ESD wrist strap with MagSnap 360° magnetic connection and a 12-foot coil cord, designed for electronics assembly operators who require continuous, reliable path-to-ground protection with resistance <3.5 x 10⁷ ohms per ANSI/ESD S20.20.

Sold individually.

• 360° Rotation Between Wristband and Coil Cord
  Designed to promote comfort, freedom of motion, and reduce strain on the operator's wrist.
• Magnetic Connection Between Wrist Band and Coil Cord
  Creates a superior electrical connection to eliminate intermittent failures that can occur in traditional snap connections using springs, extends lifespan of the wrist strap, and maintains a 1-5 pound perpendicular breakaway force to prevent accidental disconnects.
• Dual Wire Metal Expansion Wristband and Coil Cord
  Creates a path-to-ground for an operator with resistance <3.5 x 10⁷ ohms per the required limits of ANSI/ESD S20.20, tested per ANSI/ESD S1.1 or ESD TR53. If one conductor is damaged, the operator maintains the path-to-ground through the other conductor.
• Medical-Grade Stainless Steel Backplate and Links
  Creates a more reliable path-to-ground for the operator and is ideal for use with low-voltage style monitors.
• 3.5mm Right Angle Mono Plug Connector
  Works with standard dual wire monitors and grounding jacks.
• Relaxed Retraction Coil Cord
  Soft pull does not tug on the wearer's arm.
• Date Coded
  Provided so the lifespan of the product may be tracked and to ensure quality control.
• UL Listed
  Meets UL requirements to ensure operator safety.
• Made in the United States of America
  This item is made and stocked in Chino, CA.

Specifications

Frequently Asked Questions

What makes the MagSnap 360 connection better than a traditional snap?
The magnetic MagSnap 360 connection eliminates the intermittent failures common in spring-based snap connectors, provides 360° rotation to reduce wrist strain, and maintains a 1–5 pound breakaway force to prevent accidental disconnects while keeping a reliable path-to-ground.

Why does this wrist strap use dual wires instead of a single conductor?
Dual-wire construction provides redundancy — if one conductor is damaged or fails, the operator maintains a continuous path-to-ground through the second conductor, which is required for use with dual-wire workstation monitors per ANSI/ESD S20.20.

What monitors is the SCS 2231 compatible with?
The 3.5mm right angle mono plug connector is compatible with standard dual-wire workstation monitors and grounding jacks. It is tested per ANSI/ESD S1.1 and ESD TR53.

Is the SCS 2231 suitable for operators with small wrists?
Yes. The SCS 2231 features a small metal expansion band sized for smaller wrists, with a medical-grade stainless steel backplate and links for a secure, comfortable fit during extended use.

MagSnap 360™ Dual-Wire Coil Cord Data Sheet
