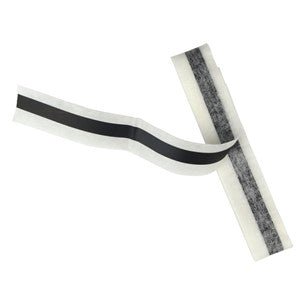

SCS 2209 Disposable ESD Wrist Strap, Individual, 5 ft
SCS 2209 Disposable ESD Wrist Strap, Individual, 5 ft
The SCS 2209 disposable ESD wrist strap provides single-use personnel grounding for visitors and temporary personnel in ESD protected areas. Individually packaged with a 5 ft lead, it is a practical option for occasional access or inclusion with an ESD-sensitive shipment so the recipient has a grounding strap available when opening the packaging and installing its contents.
A hypoallergenic adhesive provides contact around the wrist to minimize skin-to-band resistance. At the other end, conductive copper foil adhesive connects the strap to a suitable grounding point. Current-limiting resistance is built into the plastic ribbon below the wristband.
Best Uses / Applications
- Visitor grounding at electronics assembly and inspection workstations.
- Temporary personnel entering an ESD protected area.
- Single-use grounding during unpacking and installation of ESD-sensitive components.
- Including a disposable grounding option with an ESD-sensitive shipment.
Key Features
- Disposable non-woven fabric wristband for one-time use.
- Hypoallergenic adhesive provides 360° skin contact.
- Conductive copper foil adhesive grounding connection.
- Built-in current-limiting resistance.
- 5 ft lead and individual packaging.
- Existing product specifications identify ANSI/ESD S20.20 wrist strap system requirements tested per ESD TR53 and UL listing.
Technical Specifications
| Manufacturer / brand | SCS |
|---|---|
| Part number | 2209 |
| Product type | Disposable ESD wrist strap |
| Use format | Single-use |
| Wristband material | Non-woven fabric |
| Skin contact | Hypoallergenic adhesive, 360° contact |
| Lead length | 5 ft |
| Ground connection | Conductive copper foil adhesive |
| Current limiting | Resistance built into plastic ribbon below wristband |
| Packaging | Individual |
| Listed standards / testing | ANSI/ESD S20.20; ESD TR53 |
| Listing | UL Listed |
Disposable vs. Reusable Wrist Straps
| Selection consideration | SCS 2209 disposable strap | Reusable wrist strap system |
|---|---|---|
| Use pattern | One-time visitor or temporary access | Consider for personnel who need a repeat-use system |
| Wrist contact | Adhesive non-woven band | Band construction varies by model |
| Ground connection | Conductive copper foil adhesive | Choose the connector and cord appropriate to the workstation |
| Purchasing consideration | Individually packaged disposable format | Check replacement bands, cords, and testing requirements for the selected model |
Frequently Asked Questions
What is the SCS 2209 used for?
It is a disposable ESD wrist strap for grounding visitors and temporary personnel, including during unpacking and installation of ESD-sensitive items.
Is the 2209 reusable?
No. This listing is for a disposable, single-use wrist strap. Choose a reusable system for a repeat-use requirement.
How long is the lead?
The lead is 5 ft long. Confirm that this reach is suitable for the intended workstation before ordering.
How does it connect to ground?
Conductive copper foil adhesive provides the grounding connection. Use a suitable grounding point and follow the manufacturer's instructions and your facility's ESD procedures.
Does the wristband use adhesive?
Yes. Hypoallergenic adhesive provides contact around the wrist to minimize skin-to-band resistance.
Is it individually packaged?
Yes. This listing is for the individually packaged SCS 2209 disposable wrist strap.
Does it include current-limiting resistance?
Yes. Current-limiting resistance is built into the plastic ribbon below the wristband. Follow the manufacturer's use instructions rather than treating the strap as electrical protective equipment.
