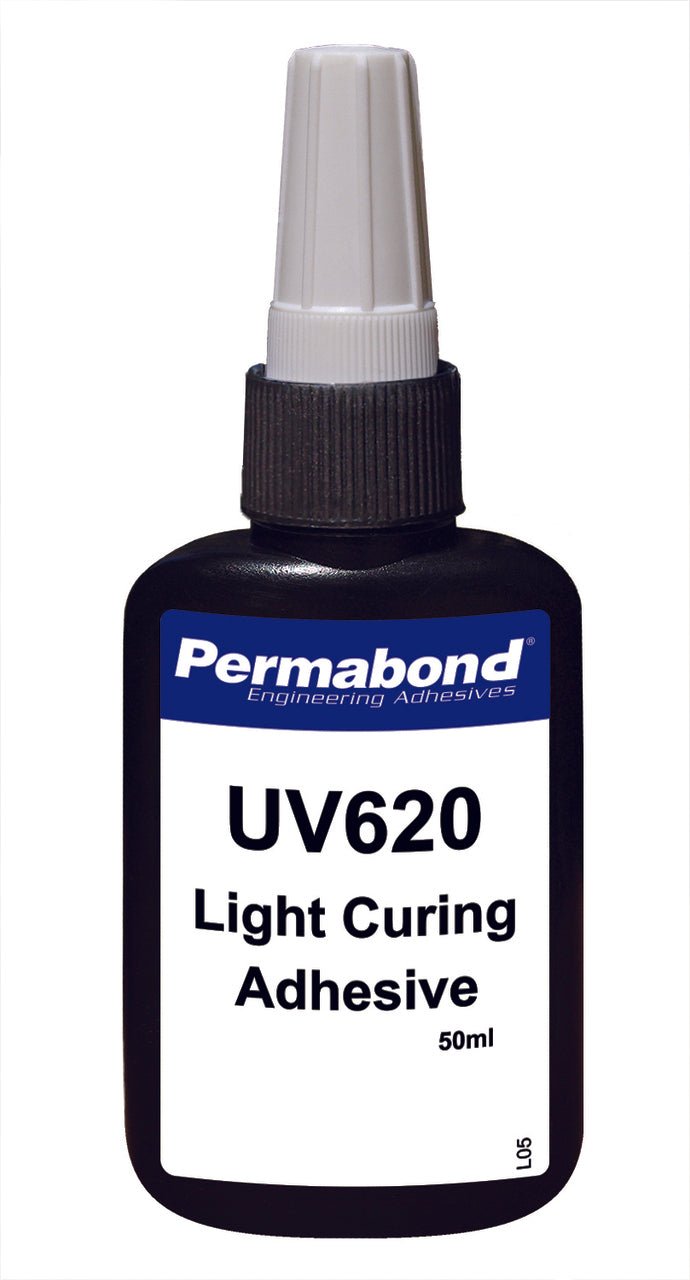

Permabond UV006200050B0101 UV620 UV-Cured Adhesive, 50ml Bottle, Case of 10
Permabond UV006200050B0101 UV620 UV-Cured Adhesive, 50ml Bottle, Case of 10
Permabond UV620 is a single-part UV-curable adhesive formulated for bonding, sealing, and coating applications requiring a flexible cured bond with excellent optical clarity. Unlike rigid UV adhesives, UV620 cures to a flexible elastomer — making it ideal for applications where differential thermal expansion, vibration, or substrate movement could stress a rigid bond. The 50ml bottle format is ideal for bench-level assembly, prototyping, and lower-volume production.
Sold in cases of 10 x 50ml bottles.
Specifications
| SKU | UV006200050B0101 |
|---|---|
| Brand | Permabond |
| Type | Single-part UV-curable adhesive |
| Grade | UV620 |
| Volume | 50ml bottle |
| Packaging | Case of 10 bottles |
| Cure Method | UV light cure (on demand) |
| Cured Appearance | Clear |
| Cured Properties | Flexible elastomer |
| Substrates | Glass, metals, plastics, ceramics |
| Key Property | Flexible cure, optical clarity, vibration and thermal cycling resistance |
| Application | Electronics, medical devices, optical assemblies, flexible bonding, sealing |
Frequently Asked Questions
How does UV620 differ from UV610?
UV610 cures to a rigid bond, while UV620 cures to a flexible elastomer. Choose UV620 when the bonded assembly will experience vibration, thermal cycling, or differential expansion between dissimilar substrates — conditions where a rigid bond could crack or delaminate over time. Choose UV610 for rigid structural bonds where maximum hardness and chemical resistance are the priority.
What UV light source is required to cure UV620?
UV620 cures on exposure to UV light in the 320–400nm wavelength range. Cure time depends on UV intensity, wavelength, and bond line thickness. Most applications achieve full cure in seconds to minutes under a suitable UV lamp or LED UV curing system. The adhesive remains workable until exposed to UV light, providing precise process control.
What substrates does Permabond UV620 bond?
UV620 bonds glass, metals, and many plastics including acrylic, polycarbonate, and flexible substrates. Its flexible cured properties make it particularly well-suited for bonding dissimilar materials or flexible substrates where a rigid adhesive would not accommodate movement or flex.
When should I choose the 50ml bottle over the 1L bottle?
The 50ml bottle (case of 10) is ideal for bench-level assembly, prototyping, and lower-volume production where smaller quantities minimize waste and allow easy management of multiple adhesive grades. For high-volume production and automated dispensing, the 1 liter bottle (UV006200001L0101) reduces changeover frequency and per-unit cost.
