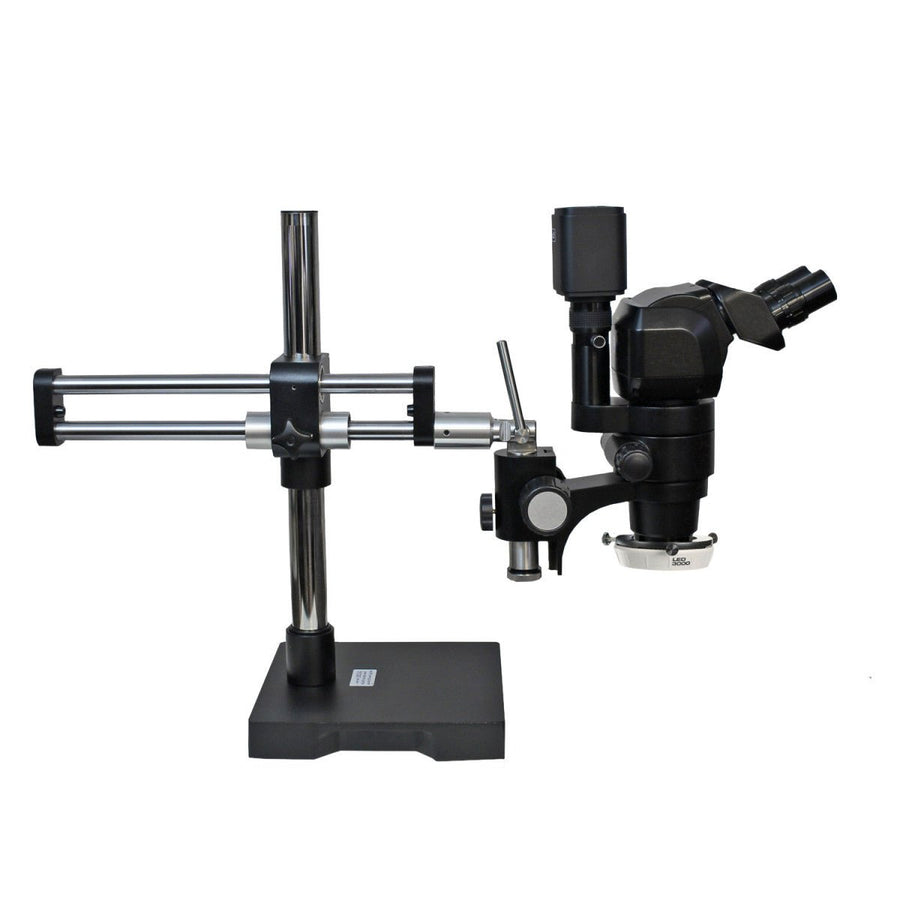

Unitron 23823RB-HDTRT-ESD System 373RB-LED3000-HOHDTRT WITH 0.5X LENS VIP-ESD ESD-Safe, VIP, TRU Trinocular, RB Stand, LED-3000 Ring Light, Excelis HD Camera, video adapter

Unitron 23823RB-HDTRT-ESD System 373RB-LED3000-HOHDTRT WITH 0.5X LENS VIP-ESD ESD-Safe, VIP, TRU Trinocular, Roller-Bearing Stand, LED-3000 Ring Light, Excelis HD Camera, video adapter

LX Microscopes by Unitron

Specifications

• ESD-safe. Body and stand are powder-coated with a metal-laced paint that measures 10⁵ Ω/sq. (static dissipative)
• TRU trinocular viewing head (ergonomic adjusting binocular eyetubes plus beam splitter camera port
• Excelis HD camera with 0.5X camera adapter
• LED-3000 ring light
• Super widefield 10x/23mm eyepieces with eyeshields
• High-quality achromat lenses with anti-reflective coatings
• 0.8X – 5.0X zoom magnification range controlled by graduated knobs on both sides of the viewing head
• Magnification range 4X-25X (with included 0.5X reducing lens)
• 8″ working distance (when used with included 0.5x reducing lens)
• Heavy duty cast aluminum housing
• Dual boom roller-bearing stand with 17.5″ vertical and 22″ horizontal reach (10″ x 10″ base); Focus mount angles to 45° to permit additional viewing and inspection perspectives.
• Shipping weight 63lbs.

5 YEAR WARRANTY

Technical Datasheet
