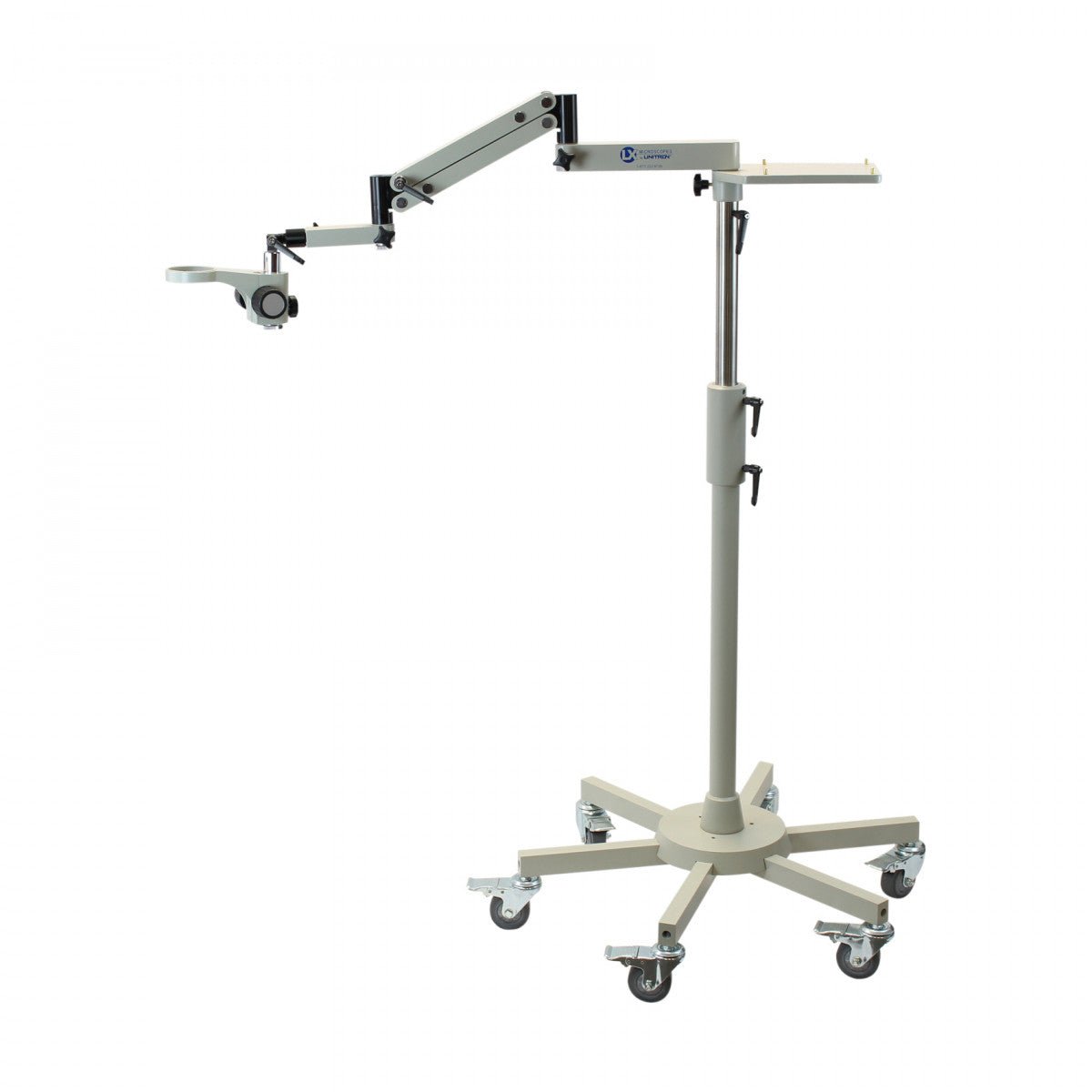

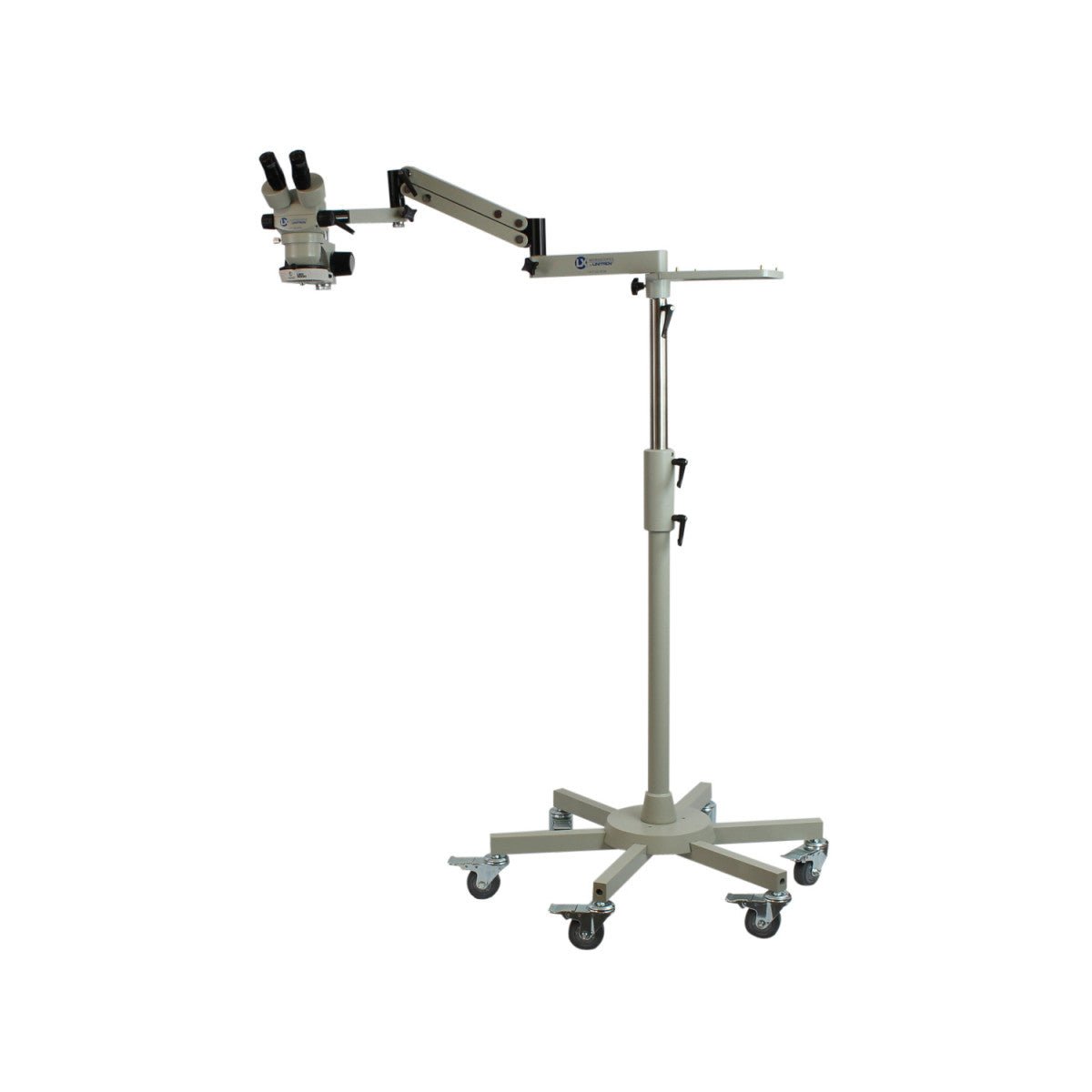

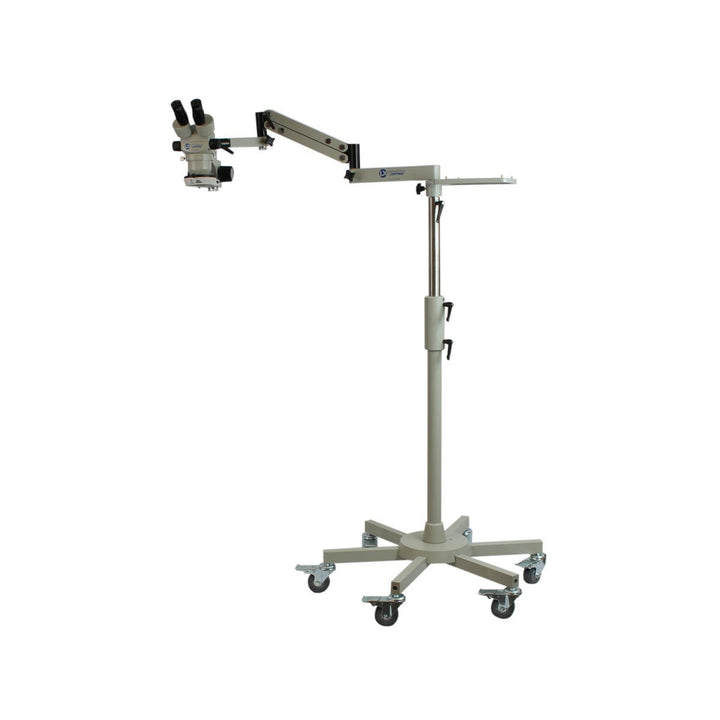

Unitron 23798 Floor stand with casters and articulated v7 arm with focus mount 23mm
Unitron 23798 Floor Stand with Casters and Articulated V7 Arm, Focus Mount 23mm
The Unitron 23798 is a heavy-duty rolling floor stand designed for stereo microscopes and inspection systems requiring flexible positioning across a production floor or lab. The articulating V7 arm provides 34" of horizontal reach and 12" of vertical range, while the vertical post adjusts from 30" to 60" to accommodate seated or standing operators. Six heavy-duty locking casters allow the stand to be repositioned easily and locked securely in place. The Ø76mm coarse focus mount accepts a wide range of Unitron and compatible microscope heads. An accessory tray and cable management clips are included.
Sold individually.
Specifications
| Parameter | Details |
|---|---|
| Part Number | 23798 |
| Brand | Unitron |
| Construction | Heavy-duty steel and cast aluminum, powder-coated finish |
| Vertical Post Height | Adjustable 30" to 60" |
| Arm Reach | 34" horizontal reach |
| Arm Vertical Range | 12" vertical range; maximum downward angle 0° (horizontal) |
| Focus Mount | Coarse focus mount with Ø76mm yoke |
| Casters | Six 2.25"H x 1.5"W non-marking polymer casters with brakes |
| Max Recommended Microscope Weight | 12 lbs |
| Optional Accessory Weight | 12kg weight (CAT# 23799) recommended for microscopes exceeding 14 lbs |
| Shipping Weight | 70 lbs (without accessory weight) |
| Included | Floor stand, brake casters, articulating arm, Ø76mm focal mount, accessory tray, cable management clips |
Frequently Asked Questions
What microscopes are compatible with the Unitron 23798 floor stand?
The 23798 uses a coarse focus mount with a Ø76mm yoke, which is compatible with a wide range of Unitron stereo microscope heads as well as other brands using the same focal mount diameter. Verify your microscope head's mounting diameter before ordering. Contact MTE Solutions if you need compatibility confirmation for a specific model.
When is the optional 12kg accessory weight (CAT# 23799) needed?
The stand is rated for a maximum recommended microscope weight of 12 lbs. For microscopes and attachments that exceed 14 lbs, the optional 23799 accessory weight is recommended to prevent tipping. The weight attaches to the bottom of the floor stand base and significantly improves stability with heavier configurations.
Can the articulating arm be positioned at any angle?
The V7 articulating arm provides 34" of horizontal reach and 12" of vertical range. The maximum downward angle is 0° (horizontal) — the arm cannot angle below horizontal. This is suitable for most overhead and angled inspection positions used in electronics assembly and quality control.
Does the 23798 include cable management?
Yes. Cable management clips are included with the stand to route illumination and accessory cables cleanly along the vertical post and arm, keeping the workspace tidy and reducing trip hazards on the production floor.
