Unitron 23720RB-TRT-ESD System 373RB-TRT-ESD ESD-Safe, S-Z 23mm TRU Trinocular, RB Stand

Unitron 23720RB-TRT-ESD System 373RB-TRT-ESD ESD-Safe, S-Z 23mm TRU Trinocular, Roller-Bearing Stand

LX Microscopes by Unitron

Specifications

• ESD-safe. Body and stand feature baked-on powder-coated with a metal-laced paint that measures 10⁵ Ω/sq. (static dissipative)
• TRU Trinocular viewing head allows operator to use camera port and both eyepieces simultaneously. Features a click-stop detent at each marking on the zoom knobs to help hold and find a specific magnification.
• Super widefield 10x/23mm eyepieces with eyeshields
• High-quality achromat lenses with anti-reflective coatings
• 0.7x – 4.5x zoom magnification range controlled by graduated knobs on both sides of the viewing head
• Click-stops on the zoom knob at 1.0, 2.0, 3.0 and 4.0 ensure repeatable magnification changes
• Magnification range 7x-45x (with 10x eyepieces)
• 8″ working distance (when used with optional 0.5x reducing lens)
• Heavy duty cast aluminum housing

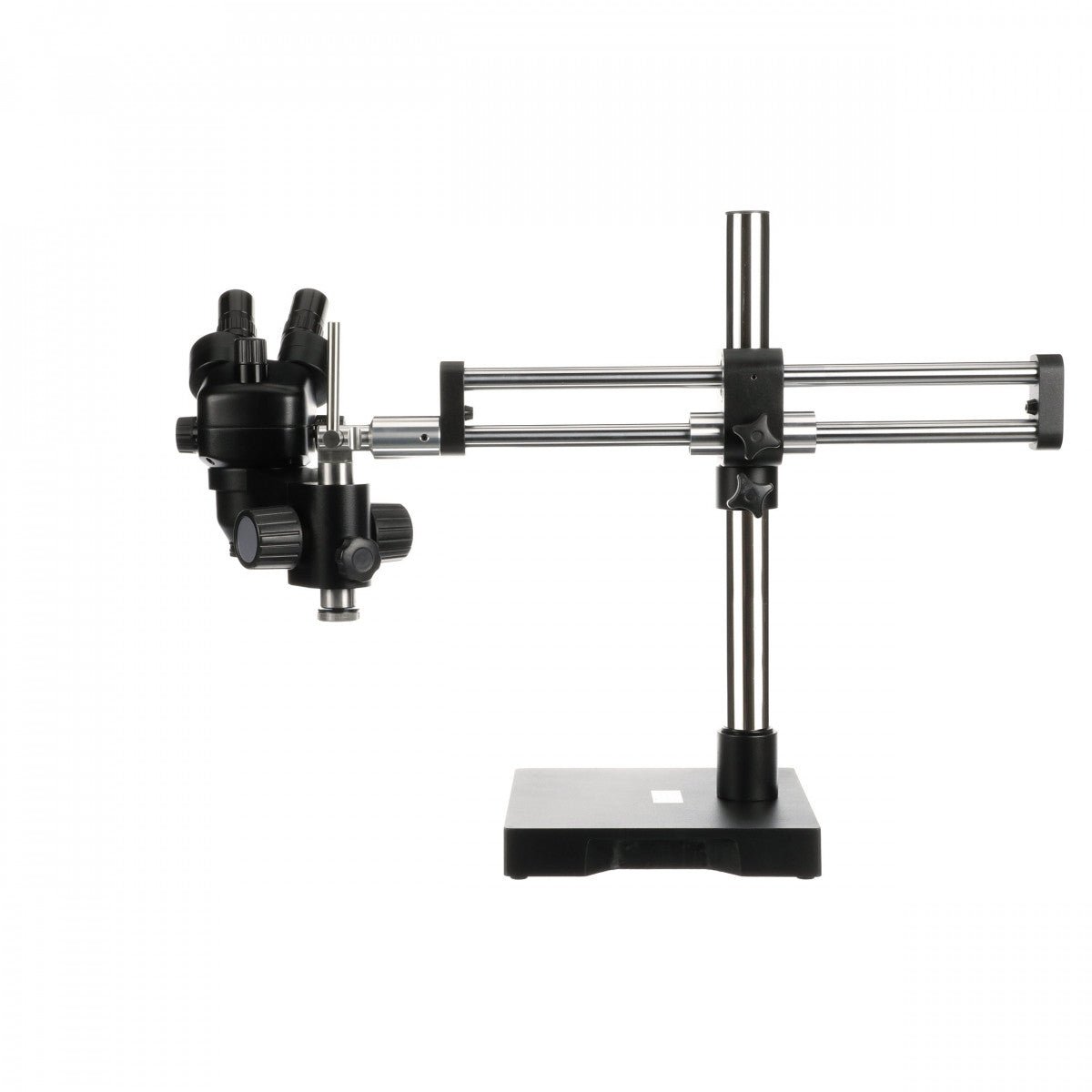

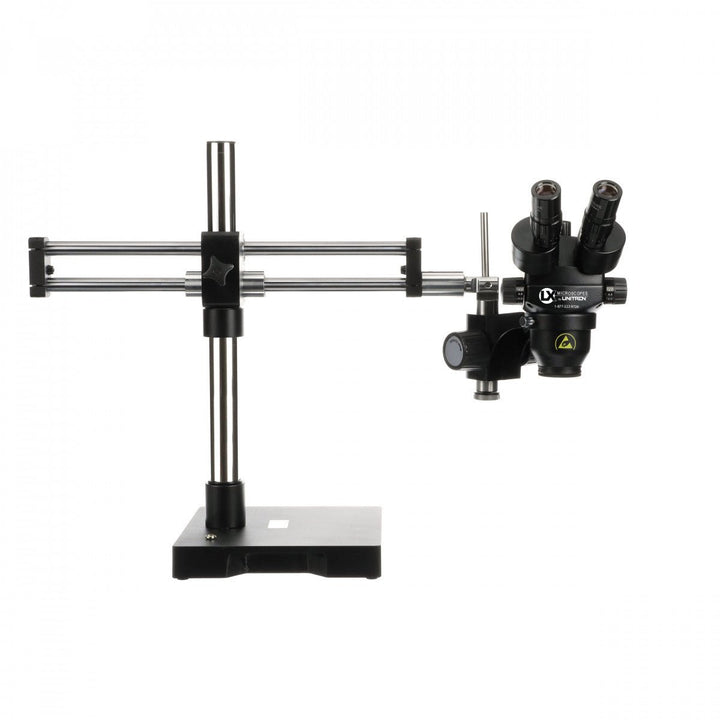

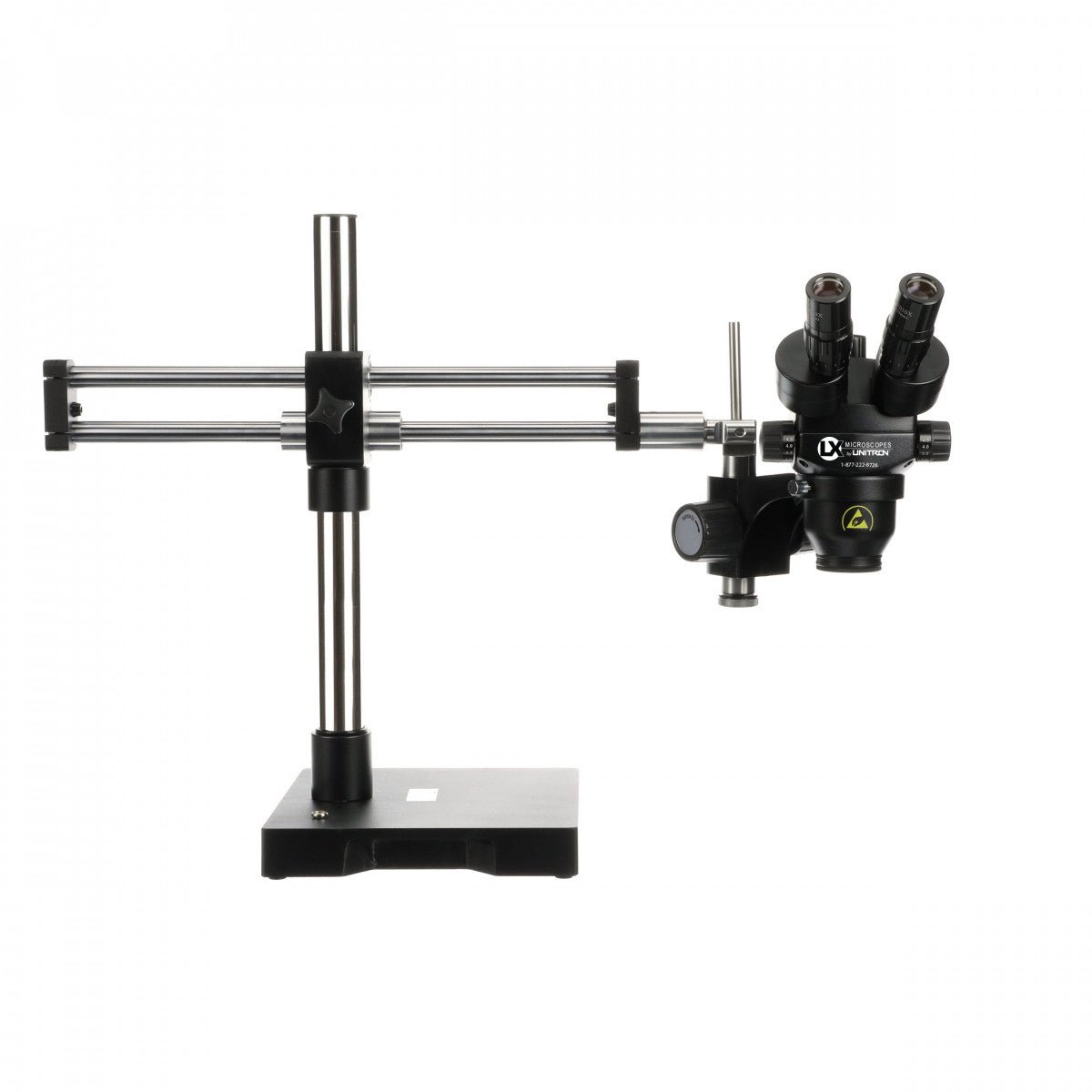

• Dual boom roller-bearing stand with 17.5″ vertical and 22″ horizontal reach (10″ x 10″ base); Focus mount angles to 45° to permit additional viewing and inspection perspectives.
• Shipping weight 61lbs.

5 YEAR WARRANTY

Technical Datasheet
