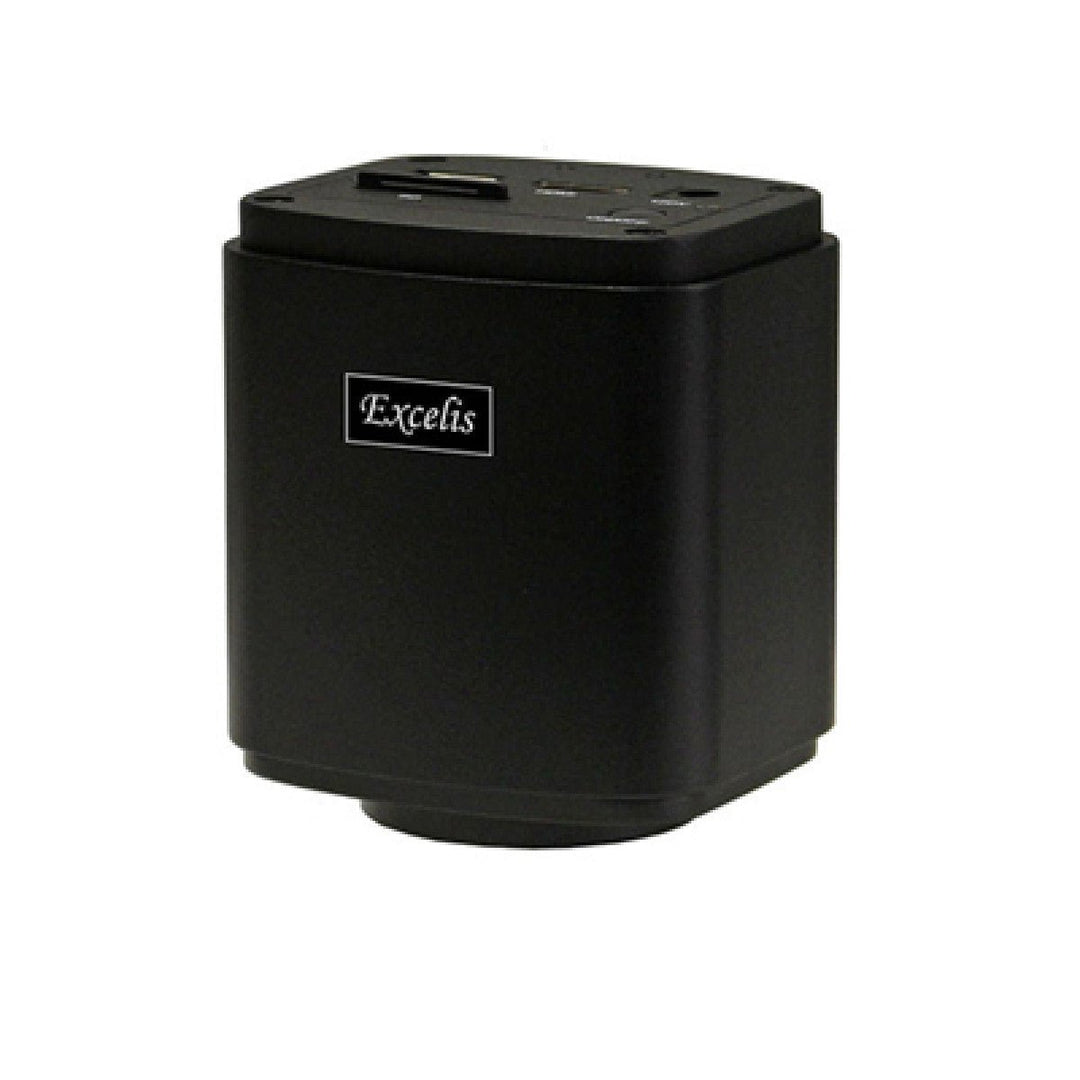

Unitron 18795-HD Excelis HD Camera 1080P 60FPS USB2.0 (HMDI output to monitor)

The Excelis HD for LX Microscopes by UNITRON is the only HDMI microscope camera in its class to offer simultaneous 1080p live image output to an HD monitor and to a computer via USB 2.0. Images can be saved directly to a PC or Mac or onto the included 8GB SD card. The USB microscope camera can be fully controlled without a computer as demonstrated in the video under the demo video tab. The free software allows for measurements, annotations, extended depth of focus, image stitching, and fluorescence.

Camera Specifications

	Excelis HD (18795-HD)
Sensor/Adapter	1/2.7″ / 0.5x C-mount recommended; SONY IMX236
Resolution	1920X1080
Frame Rate	HDMI:  60fps / USB 2.0:  30fps
Image Capture	Hi Speed SD Card (8GB)
Video Capture	HDMI: 1080p, 30fps to SD Card / USB 2.0: 1080p, 30fps to PC or Mac
Exposure Time	0.001 sec – 10.0 sec (8GB)
White Balance	Auto
Settings	Gain, Gamma, Saturation, Contraction
Built-in Software	Cloud 1.0 (With live image measurement)
PC Imaging Software	CaptaVision Imaging Software (for PC only; Mac OS not supported)   Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; fluorescence image settings; fluorescence multi-color channel mixer merge; HDR (High Dynamic Range) function Image Types: JPEG, BMP, TIFF, and RAW
Output Modes	Mode 1: USB 2.0 / Mode 2: HDMI
System Compatibility	Windows XP, Vista 7, 8 and 10 (32 or 64-bit) Mac OS X (for image transfer to Mac OS X only
System Requirements	Intel Processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port
Power Supply	DC12V/1A
Warranty	1 Year
What’s In the Box	Excelis HD Camera, HDMI Cable, USB 2.0 Cable, 12V Power Adapter, 8GB SD Card, USB Mouse, CaptaVision PC Imaging Software
