Unitron 18793VE microFOCUS 4K Digital Microscope-VE

Unitron 18793VE microFOCUS 4K Autofocus Digital Microscope, 1x–18x, Flex Arm Stand with Clamp

microFOCUS 4K Autofocus Digital Inspection System, Flex Arm VE – Item Number 18793VE

The Unitron 18793VE microFOCUS 4K is a standalone autofocus digital inspection system delivering full 4K live imaging with 1x–18x optical zoom. Built-in software provides image capture, processing, calibration, measurement, and annotation — no PC required. Operates in 4K/1080p auto-switching mode to accommodate monitor resolution. Mounted on a flex arm stand with C-clamp and bonder arm. Integrated LED ring light eliminates bench clutter. Saves images, video, and measurements to USB flash drive or SD card. Compatible with AccuView and AccuView Lite PC software for expanded analysis.

• Full 4K live imaging with 1x–18x optical zoom
• 4K/1080p auto-switching to accommodate monitor resolution
• Built-in measurement, annotation, and image capture software — no PC required

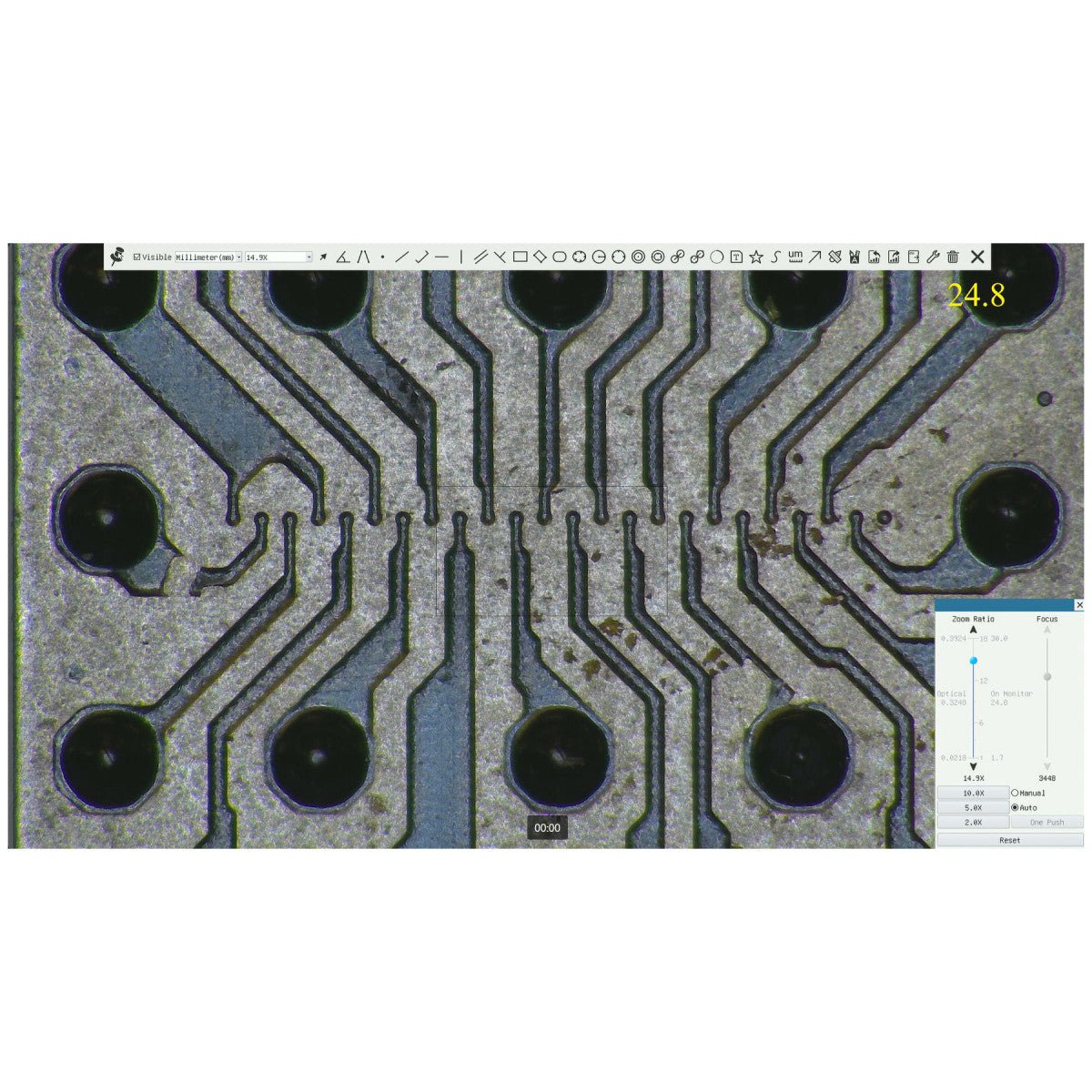

• Live measurement and annotation tools
• Split-screen: compare live with saved images
• Integrated LED ring light — eliminates bench clutter

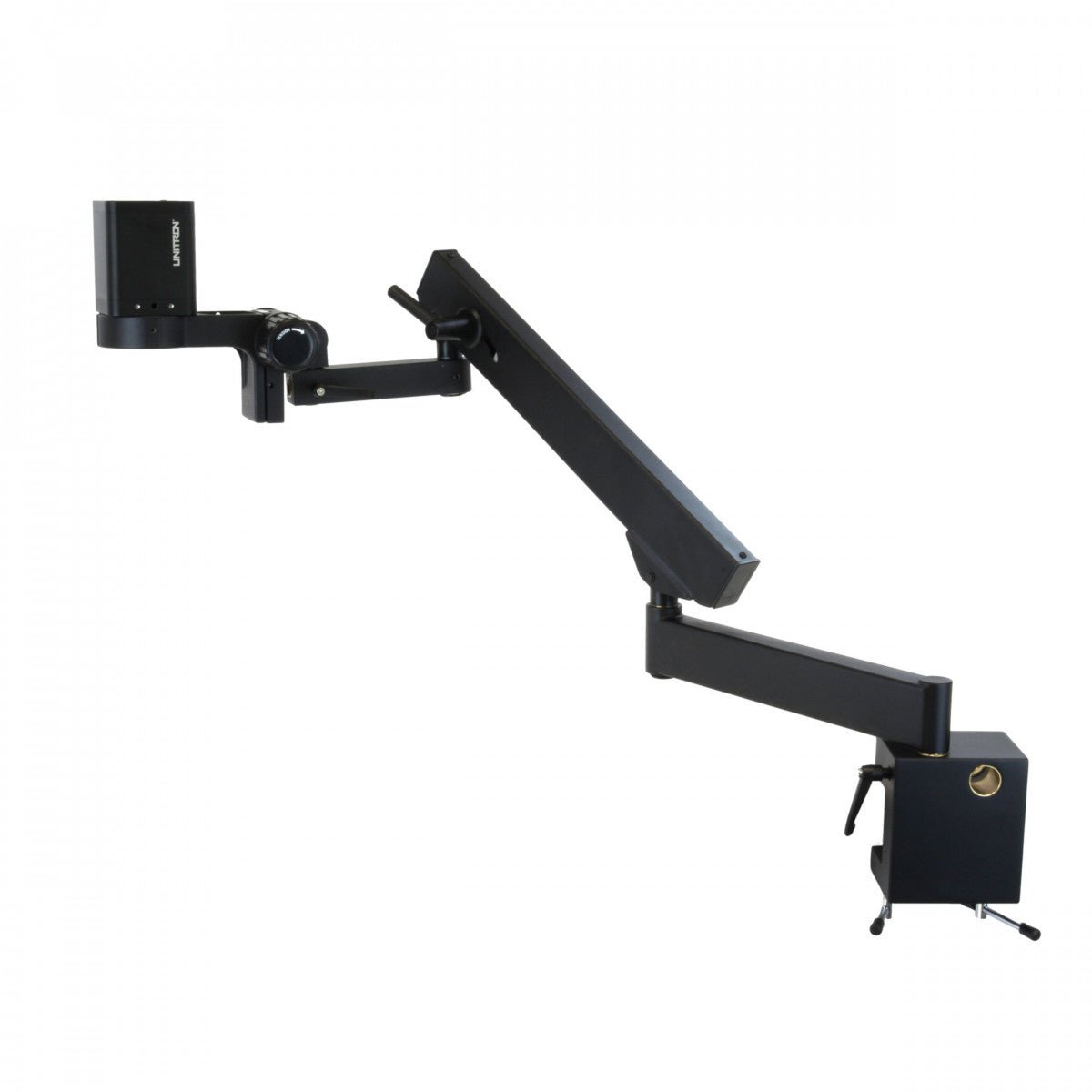

• Flex arm stand with C-clamp and bonder arm included

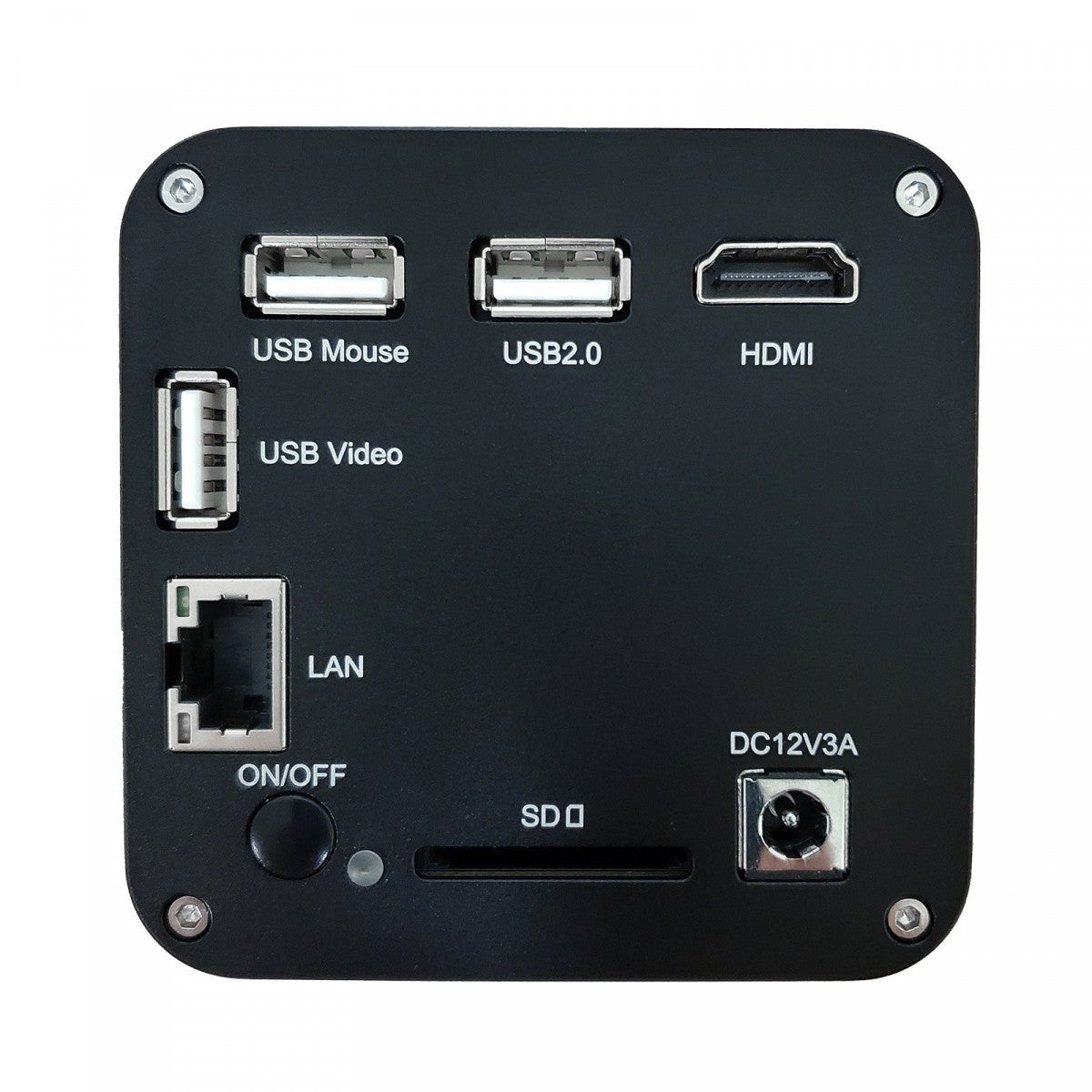

• Ports: HDMI, USB Video, LAN Ethernet, wireless USB mouse
• Saves to USB flash drive or SD card
• Ø76mm mounting ring — compatible with boom, pole, or flex arm stands with standard focus mounts
• Compatible with AccuView / AccuView Lite PC software (MacOS: AccuView Lite only)
