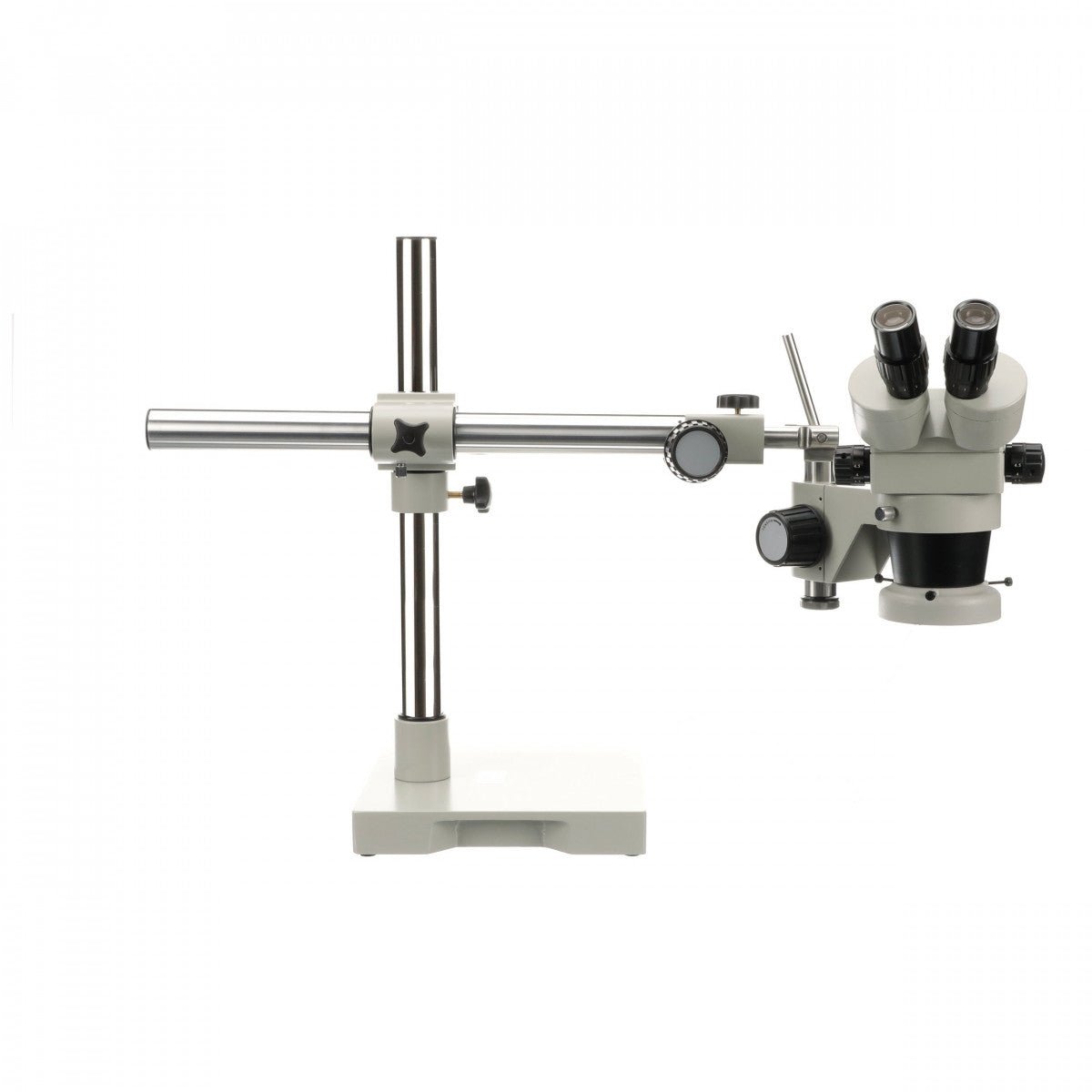

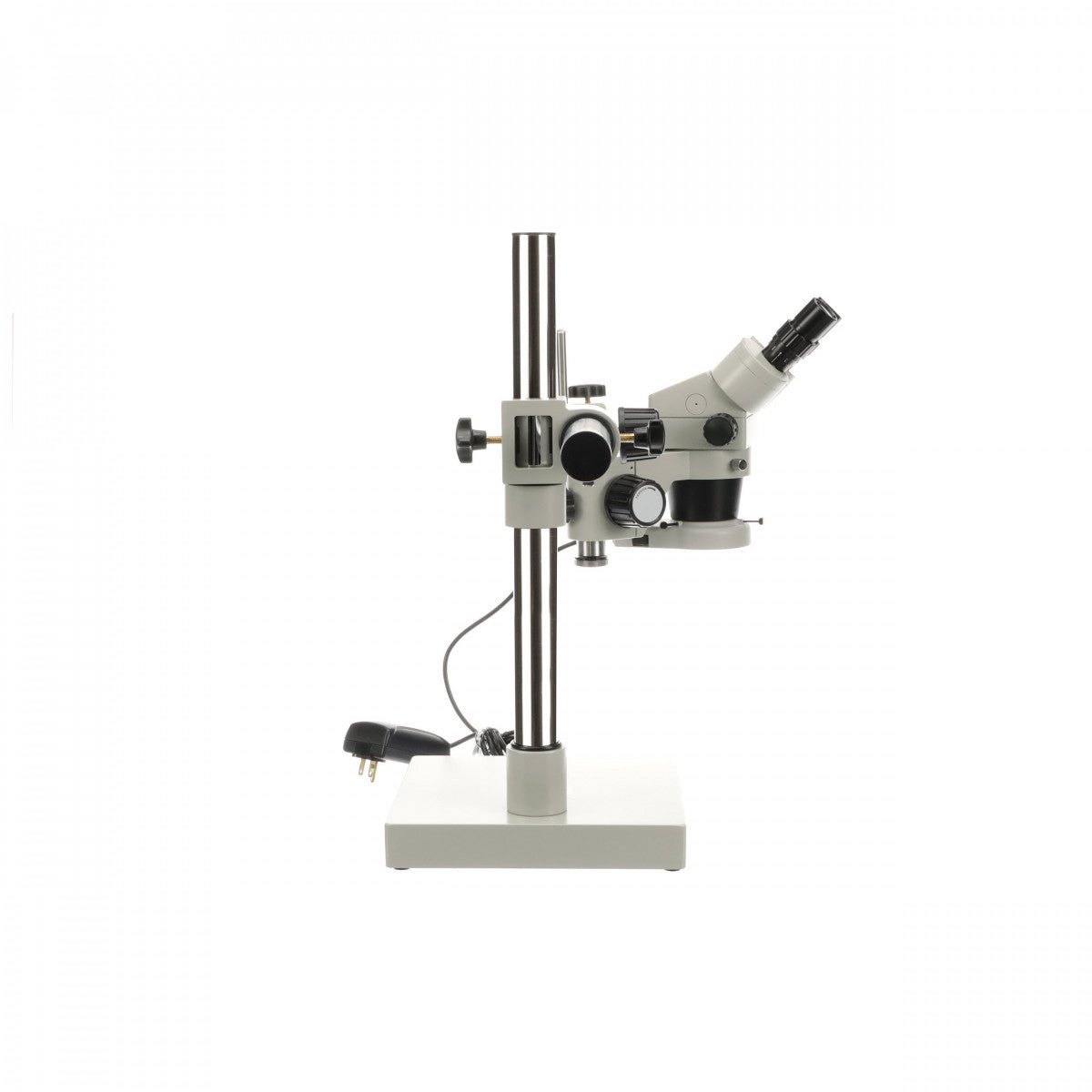

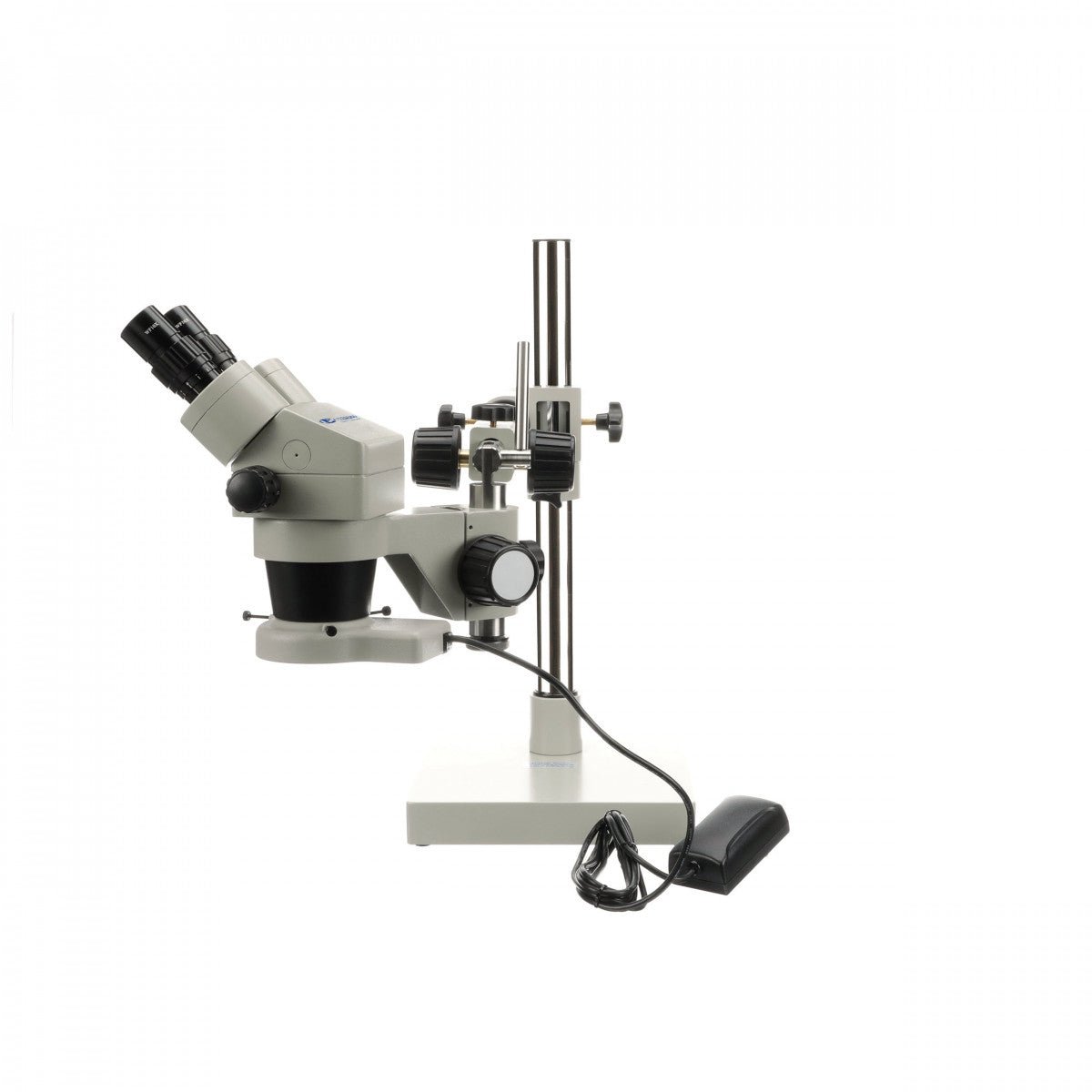

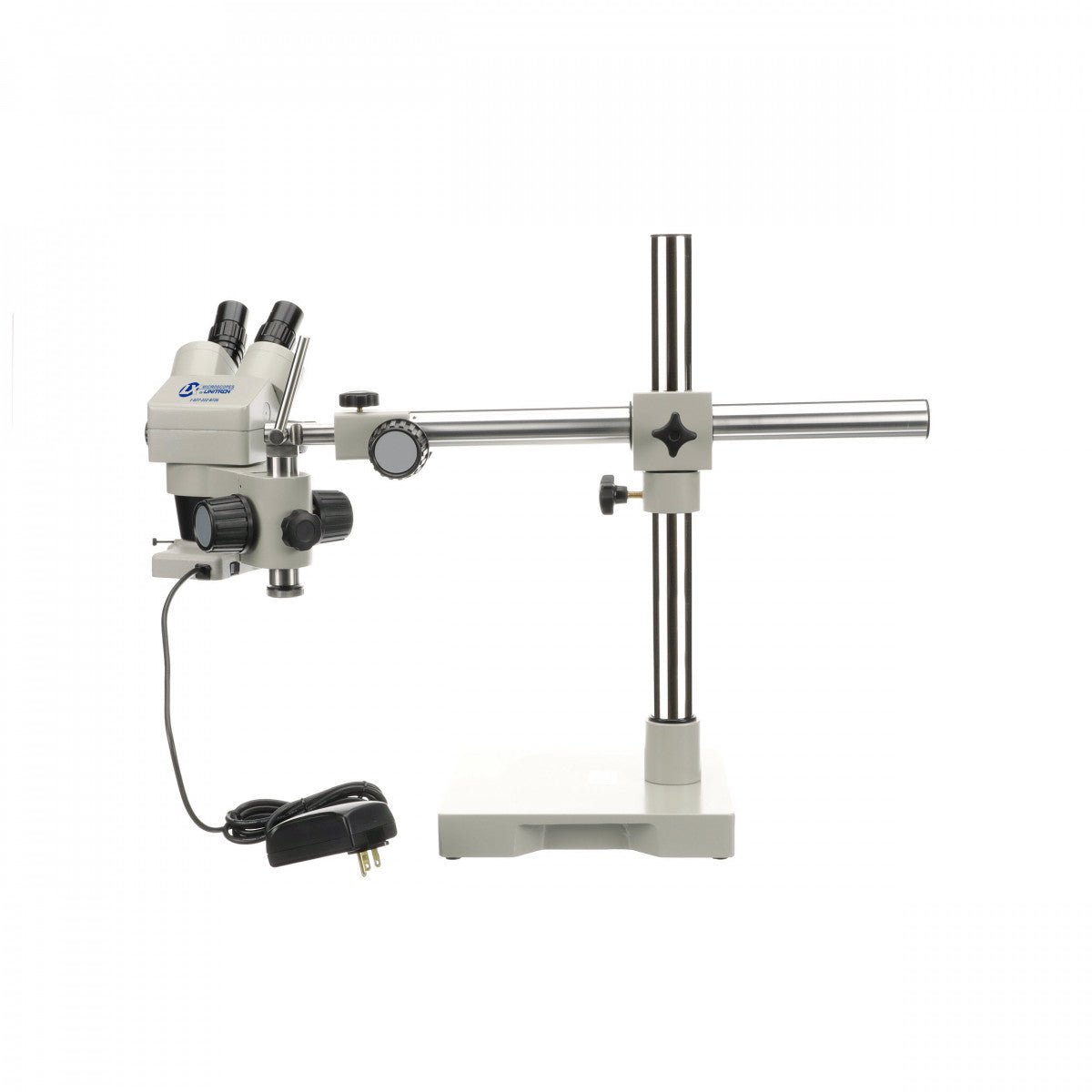

Unitron 18712 System 250-FL S-Z Binocular, Single Boom, FL Ring Light

Unitron 18712 System 250-FL S-Z Binocular, Single Boom, FL Ring Light

LX Microscopes by Unitron

Specifications

• Binocular viewing head
• Widefield 10x/20mm eyepieces with eyeshields
• High quality achromat lenses with anti-reflective coatings
• 0.65x – 4.5x zoom magnification range controlled by graduated knobs on both sides of the viewing head
• Magnification range 6.5x-45x
• 95mm working distance with 1.0x lens shield; optional 0.5x auxiliary objective increases the working distance to 150mm
• Heavy duty cast aluminum housing
• Single arm boom stand with 17.5″ vertical and 26″ horizontal reach (10″ x 10″ base); Focus mount angles adjust 45° to permit additional viewing and inspection perspectives.
• 17 watt Fluorescent Ring Light, 5600 Kelvin lamp with powder coated metal housing
• Fluorescent ring lamp has a rated lamp-life of 4,500 hours and produces 2,000 foot-candles at a 4.5" working distance.
• Single arm boom stand with 17.5″ vertical and 26″ horizontal reach (10″ x 10″ base); Focus mount angles adjust 45° to permit additional viewing and inspection perspectives.
• Shipping weight 58 lbs.

5 YEAR WARRANTY

Technical Datasheet
