ACL Staticide, ACL 306, Two-Point Resistance Meter with Case
ACL Staticide ACL 306 Two-Point Resistance Meter with Case

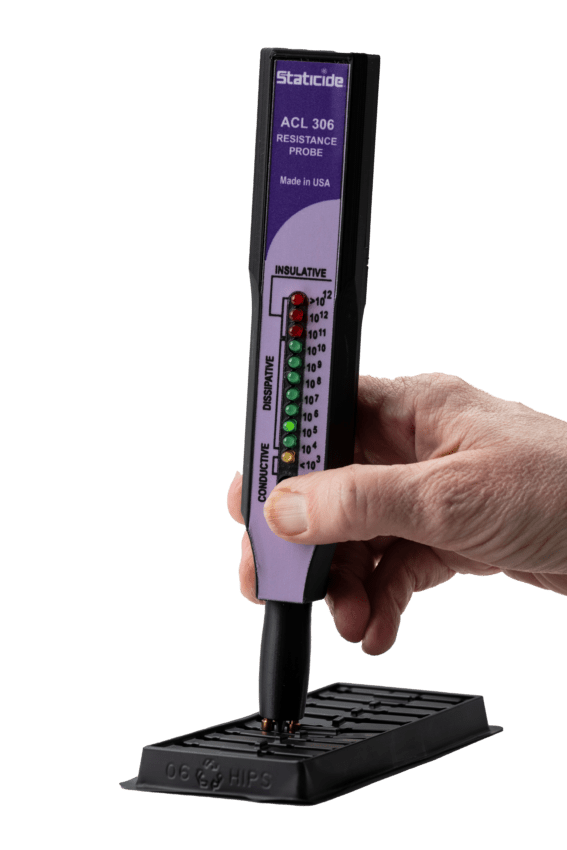

The ACL 306 handheld Two-Point Resistance Meter offers an all-in-one ESD resistance testing solution for applications where a full megohmmeter or bulky electrode setup is impractical. Portable and lightweight, it is ideal for testing ESD packaging with nooks and recesses, DIP tubes, trays, and small assembly line components. Metal spring-loaded pogo pins may be used with or without conductive rubber boots, and the color LED logarithmic scale provides quick, easy resistance readings across the full ESD-relevant range.
Verify each decade with the ACL 307 Checker Board. Made in USA. Includes calibration certificate.
Key Specifications
| Specification | Detail |
|---|---|
| Part Number | ACL 306 |
| Brand | ACL Staticide |
| Measurement Type | Two-point resistance |
| Measuring Range | 10³ – 10¹² ohms |

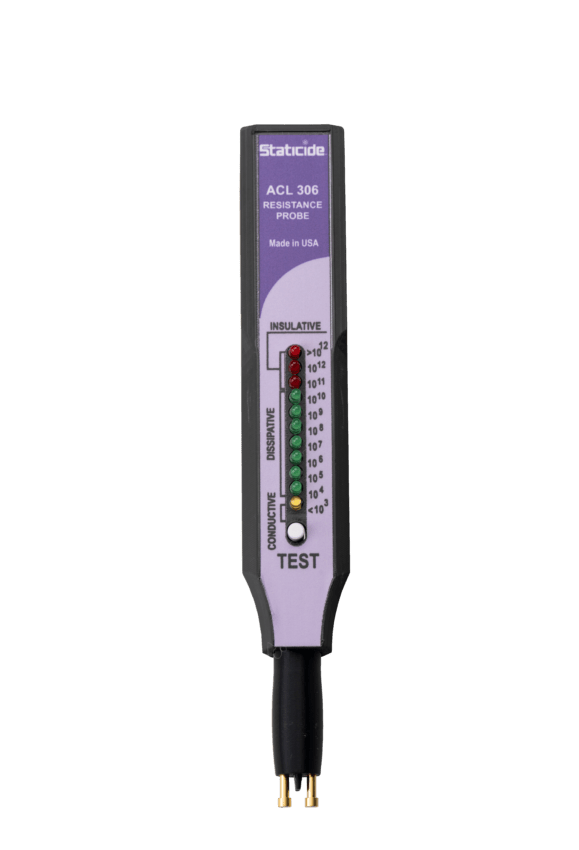

| Display | Color LED logarithmic scale |

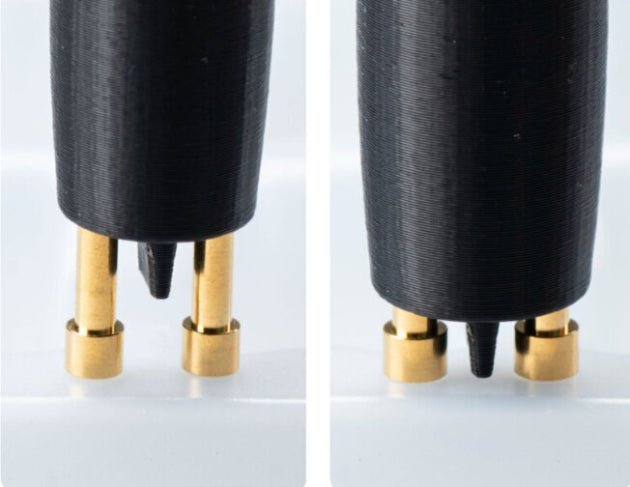

| Probe Type | Metal spring-loaded pogo pins (with/without conductive rubber boots) |
| Probe Width | 0.375" |
| Dimensions | 2.8" x 5.1" x 1.4" |
| Includes | Carrying case, calibration certificate |
| Origin | Made in USA |
Features & Benefits
- Replaces Accessory 2-Point Probes — self-contained unit eliminates need for separate probe cables and megohmmeter
- Wide Resistance Range — 10³ to 10¹² ohms covers the full ESD-relevant spectrum
- Color LED Display — logarithmic scale is fast to read and evaluate in the field
- Compact & Portable — 0.375" wide pogo pin tip accesses tight recesses in ESD packaging and small components
- Flexible Probe Tips — pogo pins usable with or without conductive rubber boots for surface adaptability
- Calibration Included — ships with calibration certificate for compliance and QC documentation
Applications
- ESD resistance testing of packaging, trays, and DIP tubes
- Assembly line QC and maintenance checks
- Incoming inspection of ESD-sensitive components and materials
- Spot-checking small or recessed areas where electrodes cannot reach
Technical Documentation
Frequently Asked Questions
What does the ACL 306 measure?
The ACL 306 measures surface and volume resistance across a range of 10³ to 10¹² ohms using two spring-loaded pogo pin probes. It is designed for ESD resistance verification of packaging materials, trays, DIP tubes, and small assembly line components.
Does the ACL 306 replace a megohmmeter?
For many routine ESD verification tasks, yes. The ACL 306 is a self-contained two-point checker that eliminates the need for separate probe cables or a full megohmmeter setup. For precision lab-grade measurements or surface resistivity per ANSI/ESD standards, the ACL 395 or ACL 800 megohmmeters may be more appropriate.
What is the ACL 307 Checker Board?
The ACL 307 is a verification board used to confirm the ACL 306 is reading accurately across each resistance decade. It is recommended for quality control programs that require documented meter verification.
Does the ACL 306 include a carrying case?
Yes — the ACL 306 ships with a carrying case and a calibration certificate.
Is the ACL 306 made in the USA?
Yes — the ACL 306 is manufactured in the USA by ACL Staticide.
