Transforming Technologies TTB2A-23GN Kit - CM1602, MT2436GN, WB7050, Grounding Hardware, Green, 2 ft x 3 ft
Transforming Technologies TTB2A-23GN ESD Workstation Kit — Green, 2 ft x 3 ft

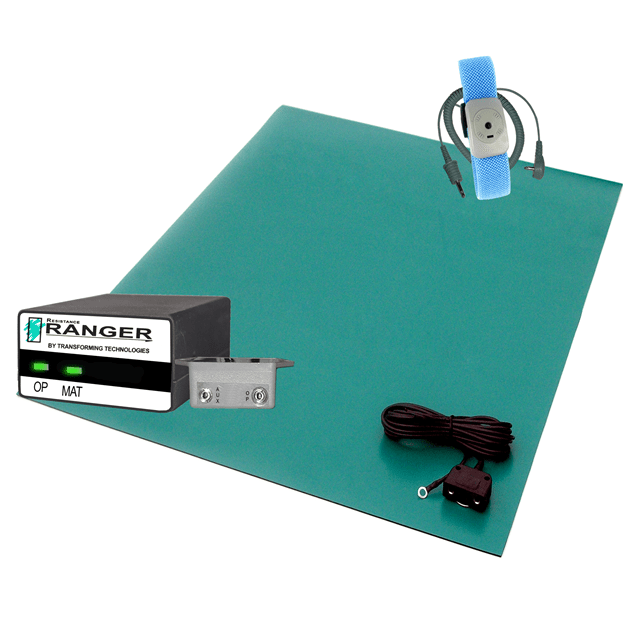

The Transforming Technologies TTB2A-23GN is a complete ESD workstation kit that includes everything needed to build a fully monitored, ANSI/ESD S20.20-compliant ESD control workstation. The kit combines the CM1602 RangerTWO dual wire constant monitor, MT2436GN two-layer rubber ESD mat (2 ft x 3 ft, green), WB7050 dual wire wrist strap set, and all required grounding hardware. The constant monitor continuously verifies both wrist strap and work surface integrity, eliminating the need for manual periodic testing.
Kit Contents
- CM1602 — RangerTWO Dual Wire Constant Monitor
- MT2436GN — 4500 Series Two-Layer Rubber ESD Mat, Green, 2 ft x 3 ft
- WB7050 — Dual Wire Wrist Strap Set
- Grounding hardware (10mm snaps, common point ground cord)
Key Specifications
| Specification | Value |
|---|---|
| Part Number | TTB2A-23GN |
| Monitor Model | CM1602 RangerTWO |
| Monitor Type | Dual Wire Resistance Monitoring |
| Monitoring Capability | 1 dual wire wrist strap + 1 work surface |
| Sensing Current | Max 0.1V (100mV) |
| Power | 100–240 VAC, 1A |
| Wrist Strap Alarm | Low: <1.8 MΩ / High: >35 MΩ |
| Mat Alarm Limit | >100 MΩ |
| Mat Size | 2 ft x 3 ft (24 in x 36 in) |
| Mat Color | Green |
| Mat Construction | Two-layer rubber (dissipative top / conductive bottom) |
| Mat Thickness | 0.080 in |
| Chemical Resistance | Excellent resistance to hot solders, soldering irons, and most solvents |
| Standard Compliance | Meets or exceeds ANSI/ESD S20.20 |
Frequently Asked Questions
What does the CM1602 RangerTWO monitor continuously check?
The CM1602 continuously monitors both a dual wire wrist strap and the ESD work surface mat simultaneously. It sends an ultra-low voltage pulse through each element and alarms immediately if resistance falls outside acceptable limits — eliminating reliance on periodic manual wrist strap testing.
Why is a dual wire wrist strap required for this kit?
The CM1602 constant monitor requires a dual wire wrist strap because it measures resistance through two independent conductors for redundancy and accurate monitoring. Standard single wire wrist straps are not compatible with the CM1602.
Is this kit available in other colors or sizes?
Yes — the TTB2A series is available in Green, Gray, Royal Blue, and Light Blue, and in 2x3 ft and 2x4 ft mat sizes. Contact MTE Solutions or browse additional TTB2A variants for other configurations.
Does this kit meet ANSI/ESD S20.20?
Yes — the TTB2A-23GN kit meets or exceeds the requirements of ANSI/ESD S20.20 for ESD workstation control when properly installed and operated.
