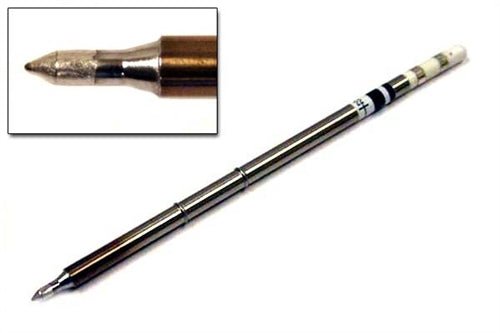

Hakko Tip,Conical,R0.2 X 14Mm,Fm-2021-2027

JBC Tools C245312 — Heat Staking Cartridge, Ø 3.2mm

The JBC Tools C245312 (SKU: C245312) is a heat staking cartridge with a Ø 3.2mm tip geometry, designed for use with JBC T245 series handles and compatible JBC soldering stations. Part of the JBC C245 cartridge series, the C245312 is specifically designed for plastic heat staking and threaded insert installation applications, where controlled heat is applied to deform thermoplastic material around a boss or insert for secure mechanical fastening without adhesives or fasteners.

Key Specifications

• Part Number / SKU: C245312
• Tip Style: Heat staking
• Tip Diameter: Ø 3.2mm
• Series: C245
• Compatible Handle: JBC T245 series
• Heating System: JBC Exclusive Heating System (heater and sensor integrated in cartridge)
• Application: Plastic heat staking, threaded insert installation

Applications

• Plastic heat staking for mechanical assembly without adhesives
• Threaded brass or steel insert installation into thermoplastic housings
• PCB standoff and boss staking in electronic enclosures
• Automotive, consumer electronics, and industrial plastic assembly
• Rework and repair of heat-staked plastic assemblies

Soldering Tip Care Guide

Proper cartridge maintenance extends tip life and ensures consistent heat staking performance. The four primary causes of tip failure are cracking, corrosion, dewetting, and wear.

Cracking: Caused by excessive pressure applied to the tip during use. Pressing harder does not improve heat transfer — it causes compression failure in the iron plating, which propagates to the copper core. Use the correct tip geometry for the boss diameter and allow heat to do the work. Never use the tip as a pry bar or strike it against hard surfaces.

Corrosion: Flux and thermoplastic residues can chemically attack the tip plating at operating temperatures. Clean tips regularly with a Hakko 599-style brass wire cleaner or a clean, damp sponge. Never use abrasive materials. Tin the tip with RMA solder before storing — never use no-clean, water-soluble, or acid flux core solders for tinning.

Dewetting: Caused by oxidation of the iron plating. Keep the tip tinned at all times, operate at the lowest effective temperature, and turn the iron off when not in use. Oxidation rate roughly doubles with every 10°C increase in temperature.

Wear: The expected end-of-life failure mode. Use the correct tip size for the application — larger tips have thicker plating and longer life. Do not scrub or drag the tip. Never use commercial tip tinners for routine maintenance; they contain abrasives that remove plating.

Tip Care Summary

• Always keep the tip tinned with RMA solder
• Use the lowest effective operating temperature
• Clean with brass wire cleaner or clean damp sponge only — never abrasives
• Turn the iron off when not in use
• Never use the tip as a pry bar or strike it against hard surfaces
• Use the correct tip diameter for the boss or insert size
• Do not use commercial tip tinners for routine maintenance

Frequently Asked Questions

What handle is the JBC C245312 cartridge compatible with?
The C245312 is compatible with JBC T245 series handles, including the T245-A general purpose handle. Verify compatibility with your JBC station before ordering. Contact MTE Solutions for handle and station compatibility assistance.

What is heat staking and when is the C245312 used?
Heat staking is a process where a heated tip is pressed into a thermoplastic boss or post, causing it to deform and flow around a mating component — such as a metal insert, PCB, or bracket — creating a secure mechanical joint without adhesives or fasteners. The C245312 Ø 3.2mm tip is suited for medium-sized bosses and standard threaded insert diameters.

What thermoplastics can be heat staked with the JBC C245312?
Common heat stakeable thermoplastics include ABS, polycarbonate (PC), nylon (PA), polypropylene (PP), and PBT. Each material has a different melt temperature and flow characteristic. Set your JBC station temperature appropriately for the specific thermoplastic being staked — consult your material supplier's datasheet for recommended processing temperatures.

What is the difference between the JBC C245312 and other C245 cartridge styles?
The C245312 is specifically designed for heat staking with its Ø 3.2mm flat-end geometry optimized for boss deformation and insert installation. Other C245 cartridges (conical, chisel, bevel, knife) are designed for solder joint formation. Use the C245312 exclusively for heat staking applications.

How does JBC's Exclusive Heating System benefit heat staking applications?
JBC integrates the heater and temperature sensor directly into the cartridge, enabling heat-up times under 2 seconds and precise temperature recovery after each staking cycle. This consistency is critical for repeatable heat staking results — preventing under-staking (weak joints) or over-staking (material burn or deformation) across production runs.
