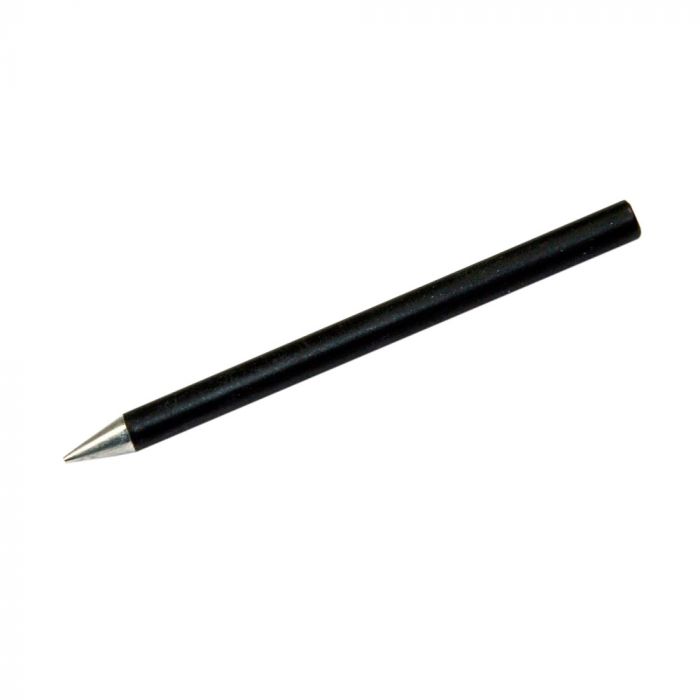

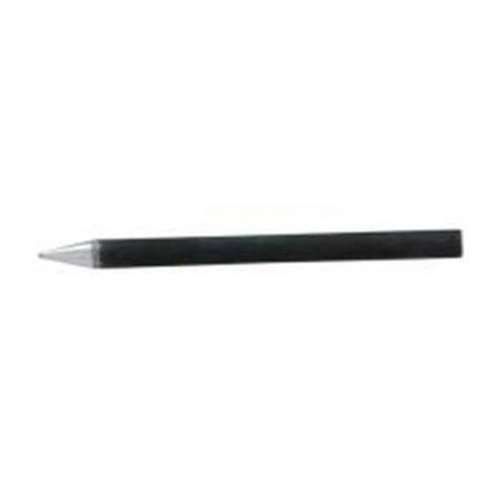

Hakko 503-T, Replacement Tip, B, BB6, Black

Hakko 503-T BB6 Replacement Solder Tip — Bevel 60°, 3.2mm (T17 Series)

The Hakko 503-T BB6 is a bevel-style replacement solder tip in the T17 Series, designed for use with Hakko FX-951, FX-952, and compatible stations. The 60° bevel at 3.2mm delivers excellent thermal transfer for drag soldering, surface mount component work, and general-purpose high-volume soldering tasks.

Compatible Stations

The 503-T BB6 is compatible with Hakko FX-951, FX-952, and other stations that accept T17 Series tips.

Key Specifications

Industries & Applications

• Surface mount technology (SMT) assembly
• Drag soldering of SOIC and QFP packages
• High-volume PCB production lines
• Rework and repair of SMD components
• Electronics manufacturing and contract assembly

Soldering Tip Care Guide

Proper tip maintenance is the single most important factor in tip longevity. Hakko T17 tips are precision-manufactured, but they are consumables — how you treat them determines whether they last weeks or months.

The Four Tip Failure Modes

1. Cracking
Caused by thermal shock from rapid heating or cooling, or by mechanical stress (dropping, forcing into connections). Always allow tips to heat gradually and never force a cold tip onto a stubborn joint.

2. Corrosion (Oxidation)
Oxidation occurs when the tip is exposed to air at operating temperature without solder on the surface. A bare, hot tip oxidizes rapidly and loses wettability. Always keep a coat of fresh solder on the tip when idle and power down promptly after use.

3. Dewetting
Dewetting happens when flux residue, contamination, or oxide build-up prevents solder from adhering to the tip. Clean the tip regularly with brass wool or a damp sponge, and re-tin immediately after cleaning.

4. Wear (Erosion)
The iron-clad layer on the tip wears down over time, especially at high temperatures or with aggressive flux. Use the lowest effective temperature for your application and avoid abrasive cleaning methods.

Tip Care Summary

• Tin before and after every session — coat with fresh solder to protect the tip from oxidation
• Clean with brass wool or damp sponge — never file or sand the tip surface
• Use the lowest effective temperature — excessive heat is the #1 cause of premature tip wear
• Store tinned — always apply fresh solder before powering down
• Use Hakko tip tinner/activator for oxidized tips before discarding — it can often restore wettability

Frequently Asked Questions

What stations is the Hakko 503-T BB6 compatible with?
The 503-T BB6 is compatible with Hakko FX-951, FX-952, and other T17 Series-compatible soldering stations.

What does BB6 mean in the Hakko tip naming system?
BB indicates a bevel tip style, and 6 refers to the 3.2mm size designation (approximately 6/64" equivalent). The bevel angle is 60°.

What is a bevel tip best used for?
Bevel tips are ideal for drag soldering, surface mount component attachment, and any application where a large, flat solder contact area is needed for fast heat transfer.

How do I restore a darkened or dewetted Hakko tip?
Apply Hakko tip tinner/activator (FS-100) to the tip while hot. The flux compounds in the activator chemically strip the oxide layer and restore the tinnable surface. If the tip is severely eroded or cracked, replace it.

Is the 503-T BB6 compatible with lead-free solder?
Yes — Hakko T17 Series tips are compatible with both leaded and lead-free solder alloys. Lead-free soldering typically runs at higher temperatures, so tip care is even more critical to extend tip life.
