Thermaltronics TMT-5000S-1 Soldering System with SHP-T, 100–110V
Thermaltronics TMT-5000S-1 Soldering System with SHP-T, 100–110V
Listed lead time: 3–4 weeks. Contact MTE Solutions to confirm current availability before ordering.

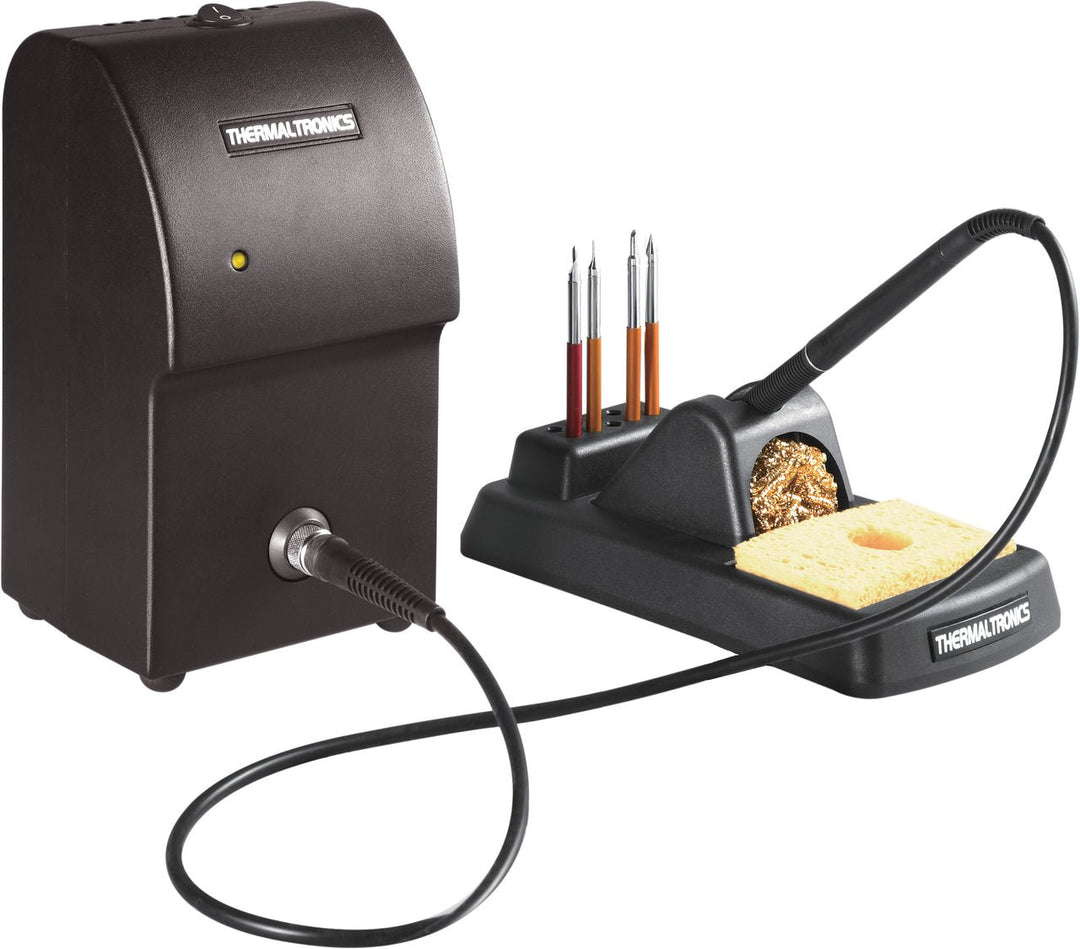

The Thermaltronics TMT-5000S-1 is a 100–110VAC soldering system featuring an SHP-T handpiece, SHH-2 sleep workstand and compatibility with Thermaltronics T Series tip cartridges. Curie Heat Technology operates at 13.56MHz and automatically adjusts power output in response to each solder joint's thermal demand. Its compact power supply provides a maximum 30W RF output for an organized electronics soldering bench.
Power cord is not included in this listing. Confirm the appropriate cord and required tip cartridge before ordering. This is the 100–110V configuration, not a universal-input 100–240V system.
Best Uses / Applications
- PCB assembly and through-hole soldering using an appropriate T Series cartridge.
- Electronics service and repair benches.
- Prototype assembly requiring tip geometries matched to different joints.
- Workstations standardizing on the SHP-T handpiece and T Series cartridges.
- Benches requiring a compact system with a sleep workstand.
Key Features
- Curie Heat Technology regulates power automatically in response to joint demand.
- 13.56MHz operating frequency and maximum 30W RF output.
- SHP-T soldering handpiece and SHH-2 sleep workstand.
- T Series tip-cartridge compatibility.
- Idle temperature stability of ±1.1°C / ±2°F.
- 100–110VAC, 50/60Hz input for the -1 configuration.
Technical Specifications
| Manufacturer | Thermaltronics |
|---|---|
| System model | TMT-5000S-1 |
| Power-supply voltage configuration | TMT-5000PS-1, 100–110VAC |
| Input frequency | 50/60Hz |
| Maximum output power | 30W RF |
| Output frequency | 13.56MHz |
| Technology | Curie Heat Technology |
| Handpiece / tip family | SHP-T / T Series |
| Tip-to-ground potential | 2mV, true RMS, 50–500Hz |
| Tip-to-ground resistance | Less than 2Ω DC |
| Idle temperature stability | ±1.1°C / ±2°F |
| Ambient operating temperature | 10–40°C / 50–104°F |
| Maximum enclosure temperature | 50°C / 122°F; not soldering-tip temperature |
| Fuse, -1 power supply | 125V, 1A |
| Dimensions, W × H × D | 112 × 205 × 117mm |
| Listed unit weight | 2.58kg; not shipping weight |
Package Contents
| Reference | Item |
|---|---|
| TMT-5000PS | Power supply; -1 voltage configuration for this system |
| SHH-2 | Sleep workstand |
| SHP-T | Soldering handpiece |
| RMP-1 | Tip removal pad |
| SG-1-BK | Black handpiece grip |
| SG-1-GR | Green handpiece grip |
| CC-1 | Connection cable |
| BC-1 | Brass curls |
| SPG-1 | Sulphide-free sponge |
The vendor packing list does not identify an included tip-cartridge part number. Confirm tip contents and select the required T Series geometry and temperature grade. The power cord is excluded according to this listing.
TMT-5000S-1 vs. TMT-5000S-2
| Consideration | TMT-5000S-1 | TMT-5000S-2 |
|---|---|---|
| Power-supply input | 100–110VAC | 220–240VAC |
| Power-supply reference | TMT-5000PS-1 | TMT-5000PS-2 |
| Fuse specification | 125V, 1A | 250V, 0.5A |
| Platform tip family | T Series | T Series |
Choose the voltage configuration for the installation and verify the equipment label before connection. Do not treat the -1 and -2 versions as interchangeable universal-voltage units. RF frequency and rated output alone do not establish how one system will perform on every joint.
Setup and Maintenance
Check supply voltage, power-cord suitability and cartridge compatibility before installation. Match T Series geometry and temperature grade to the alloy, joint and component. Follow the manufacturer's sleep-workstand, cartridge-change and shutdown instructions. Use suitable fume control, keep the working surface clean and tinned, and avoid excessive pressure or abrasive damage to plated tips. Automatic power regulation does not replace safe-handling training or process verification.
Frequently Asked Questions
What input voltage does TMT-5000S-1 require?
The manufacturer specifies 100–110VAC for the -1 power-supply configuration. Check the equipment label and installation supply before use.
Is this a universal 100–240V station?
No. Thermaltronics lists separate 100–110V and 220–240V power-supply configurations.
Which handpiece and tips does it use?
The supplied handpiece is SHP-T, and the platform uses Thermaltronics T Series cartridges. Select a suitable geometry and temperature grade.
Is the power cord included?
No. This listing specifies that the power cord is not included. Confirm the correct cord for your installation.
Is a tip cartridge included?
The manufacturer's packing list does not name an included cartridge part number. Confirm tip contents when ordering.
What workstand is supplied?
The vendor packing list specifies the SHH-2 sleep workstand.
What is the output power, and what does 50°C mean?
Maximum output is 30W RF at 13.56MHz. The separate 50°C figure is maximum enclosure temperature, not soldering-tip temperature.
What is the lead time?
This listing carries a 3–4 week notice. Contact MTE Solutions to confirm current availability and delivery expectations.
