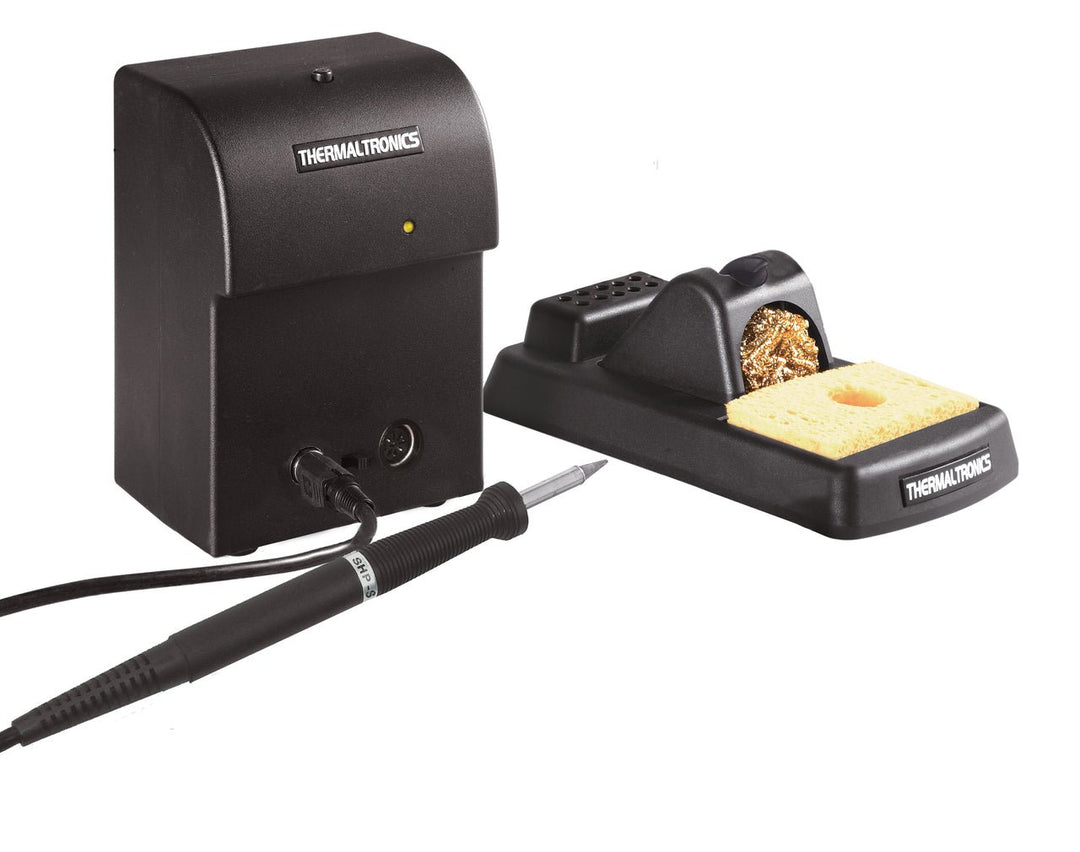

Thermaltronics TMT-2000S-SM Soldering System With SHP-SM Handpiece 100-240 VAC
Thermaltronics
SKU: TMT-2000S-SM
Regular price
$241.50
$241.50
Regular price
Sale price
$241.50
$241.50
/
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can be bought in quantity increments of .
3/4 Week Lead-Time
Thermaltronics TMT-2000S-SM Soldering System With SHP-SM Handpiece 100-240 VAC
Thermaltronics TMT-2000S-SM (S-Series Tip) is based on Curie Heat Technology which responds to the thermal demands of each solder joint by adjusting the power instantaneously, thereby meeting the exact requirements of the substrate component and solder material.
Curie Heat Technology operating at 470KHz.
Maximum flexibility, allows the use of K, P and S Series tips.
Extremely compact, weighs just 1.3KG.
No calibration or operator training required.
No additional coil assembly costs.
TMT-2000S SPECIFICATIONS
| Input Line Voltage: | 100-240 VAC, 55W |
| Tip to Ground Potential: | 2mV, true RMS 50-500Hz |
| Tip to Ground Resistance: | <2 Ohms DC |
| Idle Temperature Stability: | +/- 1.1°C (2°F) |
| Maximum Enclosure Temperature: | 50°C (122°F) |
| Fuse: | 250V 1A |
| Output Power (Maximum): | 50 Watts RF |
| Output Frequency: | 470 Khz |
| Size (W x H x D): | 110mm x 155mm x 92mm |
| Weight: | 1.3 KG |
| Input Line Frequency: | 50/60 Hz |
PACKING LIST
| TMT-2000PS | Power Supply |
| SHH-4 | Soldering Handpiece Holder |
| SHP-SM1 | Soldering Handpiece for S Series Tips |
| RMP-1 | Tip Removal Pad |
| CC-1 | Connection Cable |
| BC-1 | Brass Curls |
| SPG-1 | Sulphide Free Sponge |
| 1The handpiece will vary based on system configuration. | |
