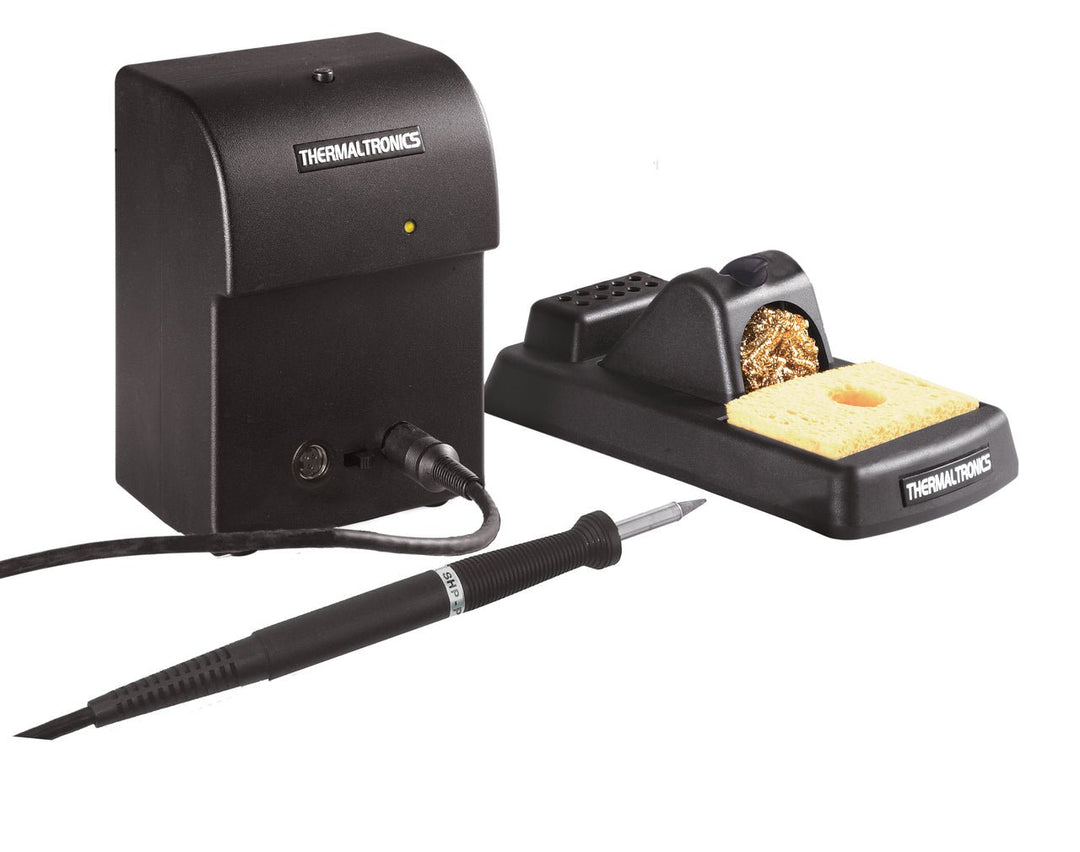

Thermaltronics TMT-2000S-PM P Series Soldering System, 100–240V
Thermaltronics TMT-2000S-PM P Series Soldering System, 100–240V
Listed lead time: 3–4 weeks. Contact MTE Solutions to confirm current availability before ordering.
The Thermaltronics TMT-2000S-PM is a P Series configuration of the compact TMT-2000S soldering system. Curie Heat Technology operates at 470kHz and automatically adjusts power output to respond to the thermal demands of each solder joint. With a maximum 50W RF output and 100–240VAC input, it supports electronics assembly, prototyping and repair on space-conscious benches.
The current MTE package listing specifies an SHP-PM handpiece for P Series tips. Thermaltronics confirms the PM system's P Series compatibility, but its shared online packing list uses a configuration-dependent handpiece reference. Confirm the exact supplied handpiece code and tip contents when ordering.
Best Uses / Applications
- Electronics assembly and PCB soldering using a suitable P Series cartridge.
- Prototype benches handling a variety of joint sizes and tip geometries.
- Service and repair work requiring responsive power delivery.
- Workstations standardizing on P Series tip cartridges.
- Compact benches where power-supply footprint matters.
Key Features
- Curie Heat Technology automatically regulates power in response to joint demand.
- 470kHz operating frequency.
- Maximum 50W RF output, distinct from 55W input consumption.
- 100–240VAC, 50/60Hz input.
- Idle temperature stability of ±1.1°C / ±2°F.
- Compact 110 × 155 × 92mm enclosure and listed unit weight of 1.3kg.
Technical Specifications
| Manufacturer | Thermaltronics |
|---|---|
| System configuration | TMT-2000S-PM |
| Tip family | P Series |
| Handpiece in current MTE package listing | SHP-PM; confirm current supplied configuration |
| Technology | Curie Heat Technology |
| Input voltage / consumption | 100–240VAC / 55W |
| Input frequency | 50/60Hz |
| Maximum output power | 50W RF |
| Output frequency | 470kHz |
| Tip-to-ground potential | 2mV, true RMS, 50–500Hz |
| Tip-to-ground resistance | Less than 2Ω DC |
| Idle temperature stability | ±1.1°C / ±2°F |
| Maximum enclosure temperature | 50°C / 122°F; not the tip operating temperature |
| Fuse | 250V, 1A |
| Dimensions, W × H × D | 110 × 155 × 92mm |
| Listed unit weight | 1.3kg; not shipping weight |
Package Contents
| Reference | Item |
|---|---|
| TMT-2000PS | Power supply |
| SHH-4 | Soldering handpiece holder |
| SHP-PM | P Series handpiece as specified in the current MTE listing; confirm supplied code |
| RMP-1 | Tip removal pad |
| CC-1 | Connection cable |
| BC-1 | Brass curls |
| SPG-1 | Sulphide-free sponge |
No tip-cartridge part number is identified in the shared manufacturer packing list. Confirm tip inclusion and select the appropriate P Series geometry and temperature grade before purchase.
Compare TMT-2000S Configurations
| Configuration | Vendor-listed tip family | Selection guidance |
|---|---|---|
| TMT-2000S-PM / TMT-2000S-P | P Series | Confirm the exact handpiece configuration required; the common tip family does not establish identical package contents. |
| TMT-2000S-KM / TMT-2000S-K | K Series | Select a K Series configuration if that cartridge family is needed. |
| TMT-2000S-SM | S Series | Select the S Series configuration for that tip family. |
K, P and S compatibility describes platform options using appropriate handpieces. It does not mean all three cartridge families fit the handpiece supplied with this PM package.
Setup and Maintenance
Choose a cartridge geometry and temperature grade suited to the solder alloy, joint and component. Follow Thermaltronics' connection, cartridge-change and shutdown instructions. Use a suitable holder and fume control, clean the tip gently, and keep its working surface tinned. Avoid excessive force, impact and abrasive damage to plated surfaces. Automatic power regulation does not replace operator training or your facility's process verification.
Frequently Asked Questions
What is the TMT-2000S-PM?
It is a P Series configuration of the Thermaltronics TMT-2000S soldering platform.
Which tips are compatible?
Thermaltronics lists P Series cartridges for TMT-2000S-P and TMT-2000S-PM. Choose the geometry and temperature grade appropriate to the work.
Does it include an SHP-PM handpiece?
The current MTE package listing names SHP-PM. The manufacturer's shared packing list states that the handpiece varies by configuration, so confirm the exact supplied code when ordering.
Can I use K and S tips in the supplied P Series handpiece?
Do not assume interchangeability. Those tip families require their appropriate configurations and compatible handpieces.
Are tips included?
A specific tip cartridge is not named in the shared manufacturer packing list. Confirm tip contents before purchase.
Is this a 50W or 55W system?
Maximum RF output is 50W. The 55W specification refers to input consumption.
Does the 50°C specification describe soldering temperature?
No. It is the maximum enclosure temperature. Select the appropriate cartridge temperature grade for soldering.
What is the expected lead time?
This listing carries a 3–4 week notice. Contact MTE Solutions to confirm current availability and delivery expectations.
