Thermaltronics T60Tz010B Tweezers Cartridge Pair - Chisel 1.00Mm (0.04")
Thermaltronics T60TZ010B Tweezers Cartridge Pair – Chisel 1.00mm (0.04")

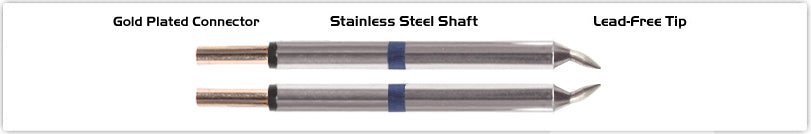

The Thermaltronics T60TZ010B is a matched pair of chisel-tip tweezer cartridges with a 1.00mm (0.04") tip width, designed for SMD component placement, removal, and rework using the Thermaltronics SHP-TTZ tweezer handpiece. These T Series cartridges are compatible with the TMT-5000S-1 and TMT-5000S-2 soldering stations and are rated for the 600 Series temperature range.
Sold individually as a matched cartridge pair — $40.14 per pair.
Specifications
| Specification | Value |
|---|---|
| Part Number | T60TZ010B |
| Tip Style | Chisel (Tweezers) |
| Tip Width | 1.00mm (0.04") |
| Tip Length | 8.20mm (0.32") |
| Temperature Series | 600 Series |
| Compatible Handpiece | Thermaltronics SHP-TTZ |
| Compatible Stations | TMT-5000S-1, TMT-5000S-2 |
| Sold As | Matched pair (2 cartridges) |
| Lead Time | 3–4 weeks |
Frequently Asked Questions
What is the difference between the T60, T70, and M80 Thermaltronics tweezer cartridges?
The T60TZ010B and T70TZ010B are both T Series cartridges for the SHP-TTZ handpiece and TMT-5000S stations, differing only in their temperature series designation (600 vs. 700). The M80TZ010B is an M Series cartridge for the SHP-MTZ handpiece and TMT-9000S/MX series stations in the 800 Series range. Always verify your station model and handpiece before ordering — cartridges are series-specific and not interchangeable across station families.
What is the lead time for this item?
The T60TZ010B carries a 3–4 week lead time as a special-order cartridge. Contact MTE Solutions at the time of order to confirm current availability and estimated ship date if your project timeline is critical.
What tip size should I choose for SMD rework?
The 1.00mm chisel tip is well-suited for mid-size SMD components such as 0402–0805 chip resistors and capacitors, SOT-23 transistors, and similar packages. For finer pitch work, a narrower tip may be more appropriate; for larger components such as SOICs, a wider chisel transfers heat more efficiently.
Are Thermaltronics tweezer cartridges sold as a pair?
Yes — tweezer cartridges are sold as a matched pair (two cartridges) to ensure both tips of the tweezer handpiece are replaced simultaneously, maintaining balanced heat transfer and tip geometry. Replacing only one tip can result in uneven heating and poor component pickup.
