Thermaltronics SHP-MTZ Tweezer Handpiece | For TMT-9000S, TMT-9000PS, MX-500, MX-5000, MX-5200 | RoHS ESD Safe
Thermaltronics SHP-MTZ Tweezer Handpiece | For TMT-9000S, TMT-9000PS, MX-500, MX-5000, MX-5200 | RoHS ESD Safe
⚠️ Lead Time: 3–4 weeks. Contact MTE Solutions at 651-600-3838 to confirm availability before ordering.

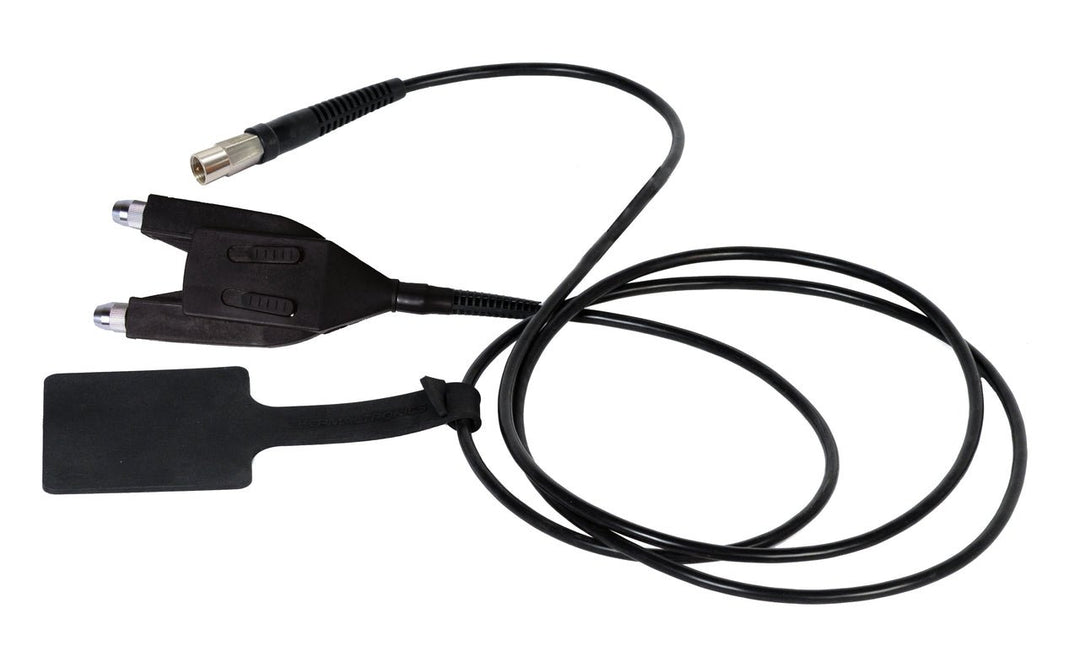

The Thermaltronics SHP-MTZ is the dedicated tweezer handpiece for Thermaltronics TMT-9000S-series and MX-series soldering systems. Designed for precision SMD component handling, placement, and soldering, the SHP-MTZ delivers dual-sided heat from tweezers cartridges directly to the component — essential for chip resistors, capacitors, SOT packages, and other two-terminal SMD components that require simultaneous heat on both leads. RoHS compliant and ESD safe for use in ESD-sensitive electronics assembly environments.
Key Specifications
| Specification | Value |
|---|---|
| Part Number / SKU | SHP-MTZ |
| Type | Tweezer Handpiece |
| Compatible Systems | TMT-9000S, TMT-9000PS, STSS, MX-500, MX-5000, MX-5200 |
| Application | SMD component soldering and rework with tweezers cartridges |
| ESD Safe | Yes |
| RoHS Compliant | Yes |
| Lead Time | 3–4 weeks (special order) |
| Brand | Thermaltronics |
Key Features
- Dual-sided simultaneous heating — tweezer cartridges deliver heat to both leads of SMD components simultaneously, enabling clean one-touch reflow of chip resistors, capacitors, SOT packages, and MELF components without disturbing adjacent parts
- TMT-9000S series and MX system compatible — designed for use with Thermaltronics TMT-9000S, TMT-9000PS, STSS, MX-500, MX-5000, and MX-5200 control stations
- ESD safe construction — safe for use in ESD-sensitive PCB assembly and rework environments; compatible with grounded ESD workstation setups
- RoHS compliant — meets RoHS material requirements for lead-free electronics manufacturing environments
- Precision SMD rework capability — tweezer form factor allows precise component manipulation, placement, and reflow in tight board areas where a standard iron cannot access both pads simultaneously
Frequently Asked Questions
What tweezers cartridges are compatible with the SHP-MTZ handpiece?
The SHP-MTZ uses Thermaltronics tweezer cartridge pairs (T60Tz and T70Tz series). Cartridges are sold separately. Contact MTE Solutions at 651-600-3838 to identify the correct cartridge pair for your component size and application.
What Thermaltronics stations is the SHP-MTZ compatible with?
The SHP-MTZ is compatible with Thermaltronics TMT-9000S, TMT-9000PS, STSS, MX-500, MX-5000, and MX-5200 systems. It is not compatible with all Thermaltronics stations — confirm your station model before ordering.
Why use a tweezer handpiece instead of a standard soldering iron for SMD work?
SMD chip components (resistors, capacitors, SOT transistors, MELF diodes) require heat applied simultaneously to both pads to reflow cleanly. A standard iron can only contact one pad at a time, increasing the risk of tombstoning, cold joints, or component movement. The SHP-MTZ delivers synchronized dual-tip heat for clean, consistent SMD reflow and removal.
Why is the lead time 3–4 weeks?
The SHP-MTZ is a special-order item not stocked on-shelf. It is sourced directly from Thermaltronics and typically ships within 3–4 weeks of order placement. Contact MTE Solutions at 651-600-3838 before ordering to confirm current lead time and availability.
Is the SHP-MTZ suitable for lead-free soldering?
Yes — the SHP-MTZ is RoHS compliant and suitable for use with lead-free SAC305 and other lead-free alloys. Ensure your Thermaltronics station is set to the appropriate temperature for the alloy and component being soldered.
