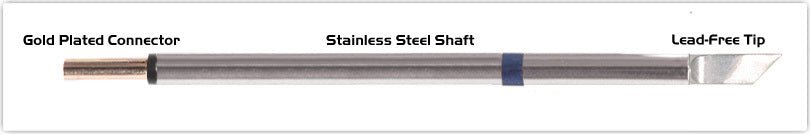

Thermaltronics Pm60Ds526 Knife 4.83Mm (0.19"), Increased Tin Area 5.84Mm (0.23")
Thermaltronics PM60DS526 — Knife Soldering Tip, 4.83mm, Increased Tin Area 5.84mm
The Thermaltronics PM60DS526 is a knife-style soldering tip with a 4.83mm (0.19") blade width and an increased tin area of 5.84mm (0.23"), designed for the Thermaltronics P Series soldering stations. The knife geometry is ideal for drag soldering, cutting solder bridges, and soldering larger SMD pads and connectors where a broad, flat contact surface is beneficial. Please note a 3–4 week lead time applies to this item.
Key Specifications
- Part Number: PM60DS526
- Tip Style: Knife
- Blade Width: 4.83mm (0.19")
- Tin Area: 5.84mm (0.23") increased
- Compatible Station: Thermaltronics P Series
- Lead Time: 3–4 weeks
Applications
- Drag soldering of SMD ICs and connectors
- Cutting and removing solder bridges on PCBs
- Soldering larger SMD pads and through-hole leads
- Rework and repair requiring broad tip contact
- High-volume production soldering with Thermaltronics P Series stations
Frequently Asked Questions
What soldering station is the PM60DS526 compatible with?
The PM60DS526 is designed for Thermaltronics P Series soldering stations. Contact MTE Solutions to confirm compatibility with your specific Thermaltronics station model before ordering.
What is a knife soldering tip used for?
Knife tips have a flat, angled blade geometry that is ideal for drag soldering rows of SMD pins, cutting solder bridges between pads, and soldering larger contact areas where a pointed or chisel tip would be less efficient.
What does "increased tin area" mean on the PM60DS526?
The increased tin area (5.84mm vs. the 4.83mm blade width) refers to the wetted surface area of the tip that holds solder. A larger tin area improves heat transfer to the joint and allows more solder to be carried on the tip during drag soldering operations.
What is the lead time for the Thermaltronics PM60DS526?
This tip has a 3–4 week lead time. Contact MTE Solutions for current availability and to discuss expedite options for urgent production needs.
Is the PM60DS526 compatible with lead-free soldering?
Yes. Thermaltronics P Series tips are compatible with lead-free solder alloys including SAC305. Ensure your station temperature profile is validated for lead-free processes.
