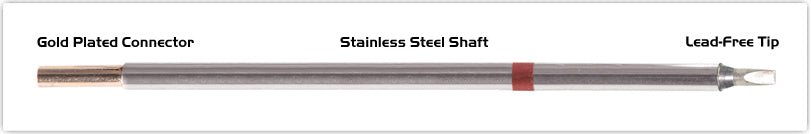

Thermaltronics M8CH175 — Chisel 30° 2.5mm (0.10") Soldering Tip
The Thermaltronics M8CH175 is a chisel soldering tip with a 30° angle and 2.5mm (0.10") working face, designed for use with Thermaltronics TMT-9000S series soldering stations. The chisel profile offers an excellent balance of contact area and precision, making it one of the most versatile tip styles for through-hole soldering, drag soldering, pad tinning, and general PCB assembly work.
Key Specifications
| Attribute | Detail |
|---|---|
| Part Number | M8CH175 |
| Brand | Thermaltronics |
| Tip Style | Chisel, 30° angle |
| Tip Width | 2.5mm (0.10") |
| Compatible Station | Thermaltronics TMT-9000S series |
| Series | M8 (standard) |
| Power Plus Version | M8CH175H (higher thermal mass) |
Chisel Tip vs. Other Tip Styles
| Tip Style | Best For |
|---|---|
| Chisel (this tip) | Through-hole leads, drag soldering, pad tinning, general assembly |
| Conical/Fine Point | Precision work, tight spaces, small SMT components |
| Bevel/Hoof | Drag soldering fine-pitch ICs, large pad work |
| Knife | Cutting solder bridges, accessing between closely spaced leads |
Tip Care Guide
Proper tip care maximizes tip life and maintains soldering performance. Thermaltronics tips are subject to the same four failure modes as all iron-plated tips:
- Cracking: Caused by thermal shock from rapid temperature cycling or dropping. Always allow the tip to heat gradually and cool slowly. Never quench a hot tip.
- Corrosion / Oxidation: Flux residue left on the tip between uses accelerates oxidation. Keep the tip tinned (coated with fresh solder) at all times when idle. Use tip tinner/activator to restore oxidized tips.
- Dewetting: The tip no longer holds solder evenly. Usually caused by oxidation or contamination. Clean with a brass wire tip cleaner (not wet sponge — thermal shock), re-tin immediately.
- Wear / Erosion: Normal over time. Aggressive fluxes and high temperatures accelerate wear. Use the lowest effective temperature and appropriate flux type.
Daily tip care checklist:
- Tin tip before first use and after every joint
- Clean with dry brass wire cleaner — avoid wet cellulose sponges
- Tin tip fully before powering down for the day
- Store with a thick coat of solder on the tip to prevent overnight oxidation
- Use tip tinner/activator when tip appears dark or resists tinning
Frequently Asked Questions
What stations is the M8CH175 compatible with?
The M8CH175 is designed for Thermaltronics TMT-9000S series soldering stations. Always verify tip series compatibility before ordering.
What is the difference between M8CH175 and M8CH175H?
The M8CH175H is the Power Plus version with higher thermal mass, providing faster heat recovery for high-demand soldering tasks such as large connectors, ground planes, or high-volume production. The standard M8CH175 is suitable for general PCB assembly.
Why use a 30° chisel tip over a straight chisel?
The 30° angled face allows the tip to contact the pad and lead simultaneously at a natural working angle, improving heat transfer and reducing the need to reposition the iron for a good joint.
How do I restore a darkened or non-wetting tip?
Apply Thermaltronics or compatible tip tinner/activator to the tip while at soldering temperature. The activator chemically removes oxidation and re-exposes the plating. Follow with fresh solder and brass wire cleaning.
What temperature should I use with this tip?
For SAC305 lead-free solder, typical working temperatures are 330–380°C (625–715°F). For leaded 63/37, 300–340°C (570–645°F) is typical. Use the lowest effective temperature to maximize tip life.
