Thermaltronics M80Tz010B Tweezers Cartridge Pair - Chisel 1.00Mm (0.04")
Thermaltronics M80TZ010B Tweezers Cartridge Pair – Chisel 1.00mm (0.04")

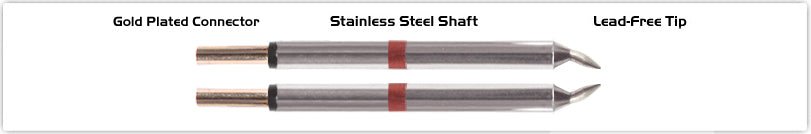

The Thermaltronics M80TZ010B is a matched pair of chisel-tip tweezer cartridges with a 1.00mm (0.04") tip width, designed for SMD component placement, removal, and rework using the Thermaltronics SHP-MTZ tweezer handpiece. These M Series cartridges are compatible with the TMT-9000S-1, TMT-9000S-2, MX-500, MX-5000, and MX-5200 soldering stations and are rated for the 800 Series temperature range.
Sold individually as a matched cartridge pair — $40.14 per pair.
Specifications
| Specification | Value |
|---|---|
| Part Number | M80TZ010B |
| Tip Style | Chisel (Tweezers) |
| Tip Width | 1.00mm (0.04") |
| Tip Length | 8.20mm (0.32") |
| Temperature Series | 800 Series |
| Compatible Handpiece | Thermaltronics SHP-MTZ |
| Compatible Stations | TMT-9000S-1, TMT-9000S-2, MX-500, MX-5000, MX-5200 |
| Sold As | Matched pair (2 cartridges) |
| Lead Time | 3–4 weeks |
Frequently Asked Questions
What soldering stations are compatible with the M80TZ010B?
The M80TZ010B is compatible with Thermaltronics stations that accept the SHP-MTZ tweezer handpiece: the TMT-9000S-1, TMT-9000S-2, MX-500, MX-5000, and MX-5200. Always verify your station model before ordering — Thermaltronics cartridges are station-specific and not interchangeable across series.
What is the lead time for this item?
The M80TZ010B carries a 3–4 week lead time as a special-order cartridge. If your project timeline is critical, contact MTE Solutions at the time of order to confirm current availability and estimated ship date.
What tip size should I choose for SMD rework?
The 1.00mm chisel tip is well-suited for mid-size SMD components such as 0402–0805 chip resistors and capacitors, SOT-23 transistors, and similar packages where a narrow chisel provides good heat transfer without bridging adjacent pads. For finer pitch work (0201 or smaller), a narrower tip width may be more appropriate. For larger components such as SOICs or QFPs, a wider chisel or blade tip transfers heat more efficiently.
Are Thermaltronics tweezer cartridges sold as a pair?
Yes — tweezer cartridges are sold as a matched pair (two cartridges) to ensure both tips of the tweezer handpiece are replaced simultaneously, maintaining balanced heat transfer and tip geometry. Replacing only one tip can result in uneven heating and poor component pickup.
