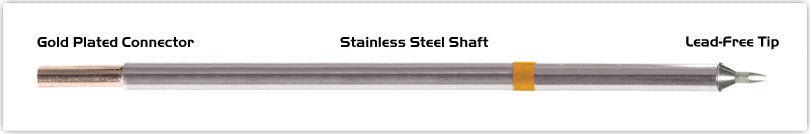

Thermaltronics M7Ch178 Chisel 30Deg 1.0Mm (0.04")
Thermaltronics M7Ch178 Chisel 30° 1.0mm (0.04") Soldering Tip
The Thermaltronics M7Ch178 is a 700 Series chisel-style soldering tip with a 30-degree angle and 1.0mm (0.04") tip width, designed for standard soldering applications on through-hole and surface-mount components. It is compatible with the Thermaltronics TMT-9000S soldering station and Metcal MX-500, MX-5000, and MX-5200 systems. The M Series tip design ensures efficient heat transfer and consistent performance across a wide range of soldering tasks.
Sold individually.
Note: 3/4 week lead time on this item.
Specifications
| Parameter | Details |
|---|---|
| Part Number | M7Ch178 |
| Brand | Thermaltronics |
| Series | 700 Series (M Series) |
| Tip Style | Chisel, 30° angle |
| Tip Width | 1.0mm (0.04") |
| Tip Length | 9.0mm (0.35") |
| Compatible Systems | Thermaltronics TMT-9000S-1, TMT-9000S-2; Metcal MX-500, MX-5000, MX-5200 |
| Application | Standard soldering — through-hole and SMT components |
| Lead Time | 3/4 week |
| Sold As | Individually |
Frequently Asked Questions
What soldering stations is the M7Ch178 compatible with?
The M7Ch178 is compatible with the Thermaltronics TMT-9000S-1 and TMT-9000S-2 soldering stations, as well as Metcal MX-500, MX-5000, and MX-5200 systems. The M Series tip interface is shared across these platforms, making it a versatile replacement option.
What is a 30-degree chisel tip used for?
A 30-degree angled chisel tip provides a flat contact surface at an angle, making it well-suited for drag soldering, pad tinning, and component lead soldering where a straight chisel would be awkward to position. The 1.0mm width is appropriate for fine-pitch work and smaller through-hole leads.
Why does this tip have a lead time?
Thermaltronics M Series tips are stocked on a limited basis and typically ship within 3 to 4 weeks. If you need this tip urgently, contact MTE Solutions to check current availability or discuss alternatives.
How do I extend the life of my Thermaltronics soldering tip?
Tin the tip before and after each use, keep the tip temperature as low as practical for the application, clean with a brass wire tip cleaner rather than a wet sponge, and store tinned when not in use. Avoid leaving the station at high temperature for extended idle periods.
