Teknipure TKS584MW Microfiber Woven Medium Head Swab with Long Handle, 6.417" (16.30 cm), 1000 swabs/case
Teknipure TKS584MW Microfiber Woven Medium Head Cleanroom Swab with Long Handle, 6.417 in (16.30 cm), Case of 1,000

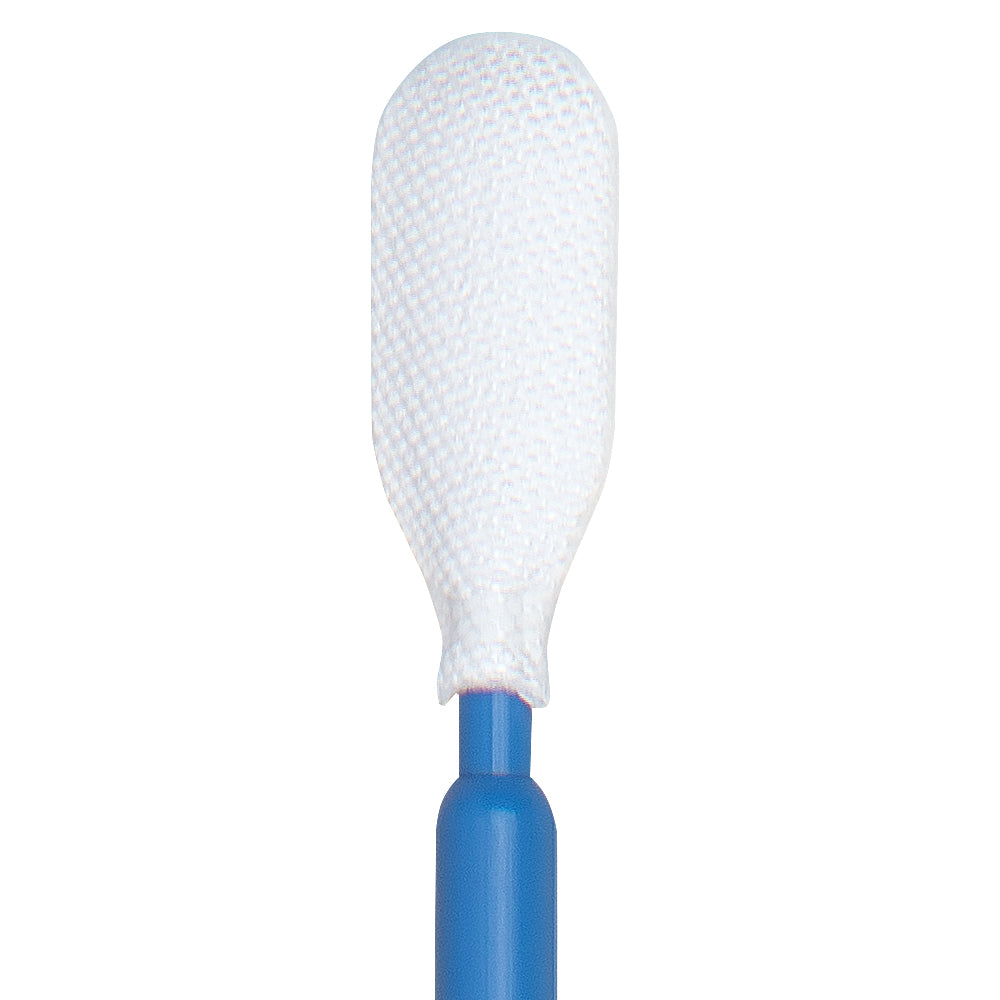

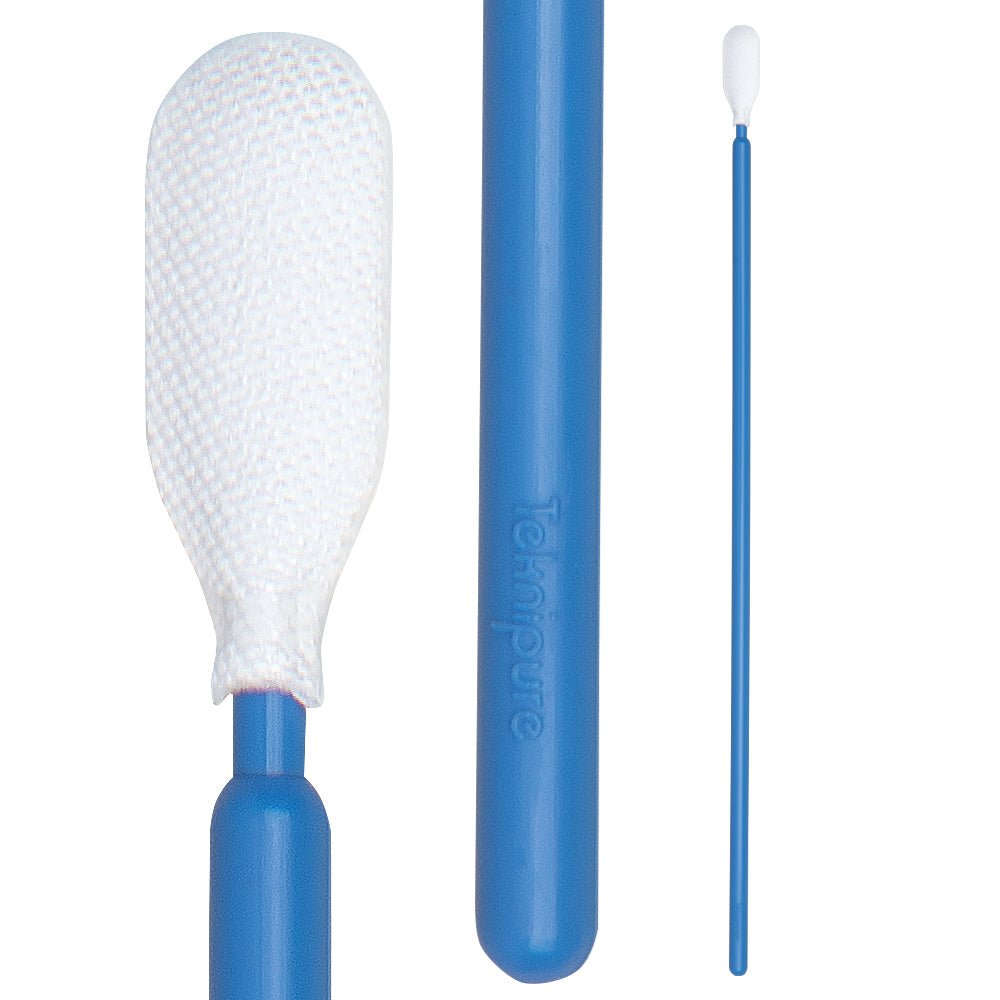

The Teknipure TKS584MW is a single-end medium head woven microfiber cleanroom swab with a 6.417" (16.30 cm) long handle, constructed from double-layer woven polyester/nylon microfiber with a 100% polypropylene handle, rated for ISO Class 5–8 environments. The woven microfiber construction uses split filaments that physically lift and trap particles, oils, and fingerprints rather than pushing them across the surface — providing superior mechanical cleaning action for optical surfaces, lenses, sensors, and precision components where streak-free results are required. The medium head tip provides a larger contact surface than the small TKS580MW for greater surface coverage per swipe; the 6.417" long handle provides maximum reach into deep equipment cavities, process chambers, and tool interiors. Double-layer construction for enhanced durability and abrasion resistance. Ultra-low NVR, ultra-low ions and particles. Thermally bonded — no adhesives, silicone, or amides. Packaged in silicone-free bags. Lot and bar-coded for traceability. 5-year shelf life stored at ambient conditions (59–86°F / 15–30°C).
Sold in cases of 1,000 swabs (100/inner bag, 1 inner bag/outer bag, 10 outer bags/case).
Specifications
| SKU | TKS584MW |
|---|---|
| Brand | Teknipure |
| Product Line | TekniSwab® Microfiber Woven |
| Tip Material | Double-layer woven polyester/nylon microfiber, thermally bonded |
| Tip Geometry | Medium head, single end |

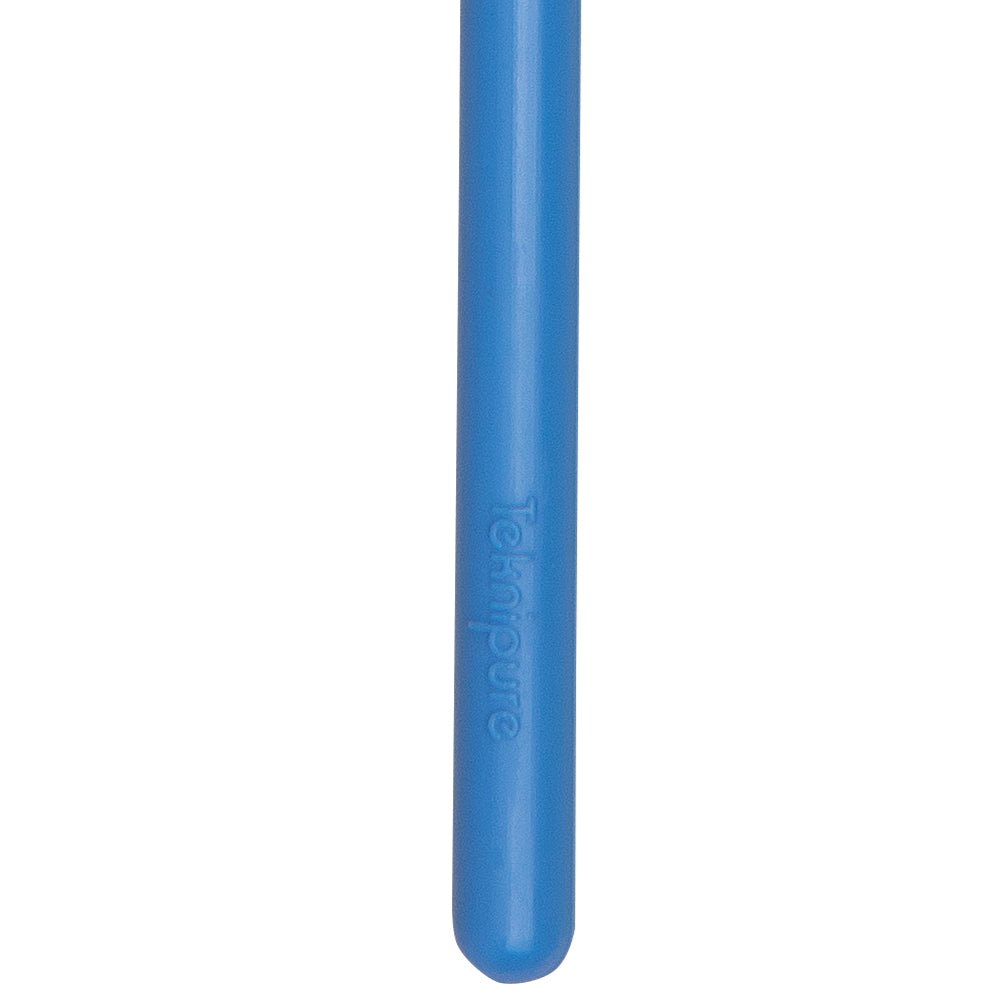

| Handle Material | 100% polypropylene |

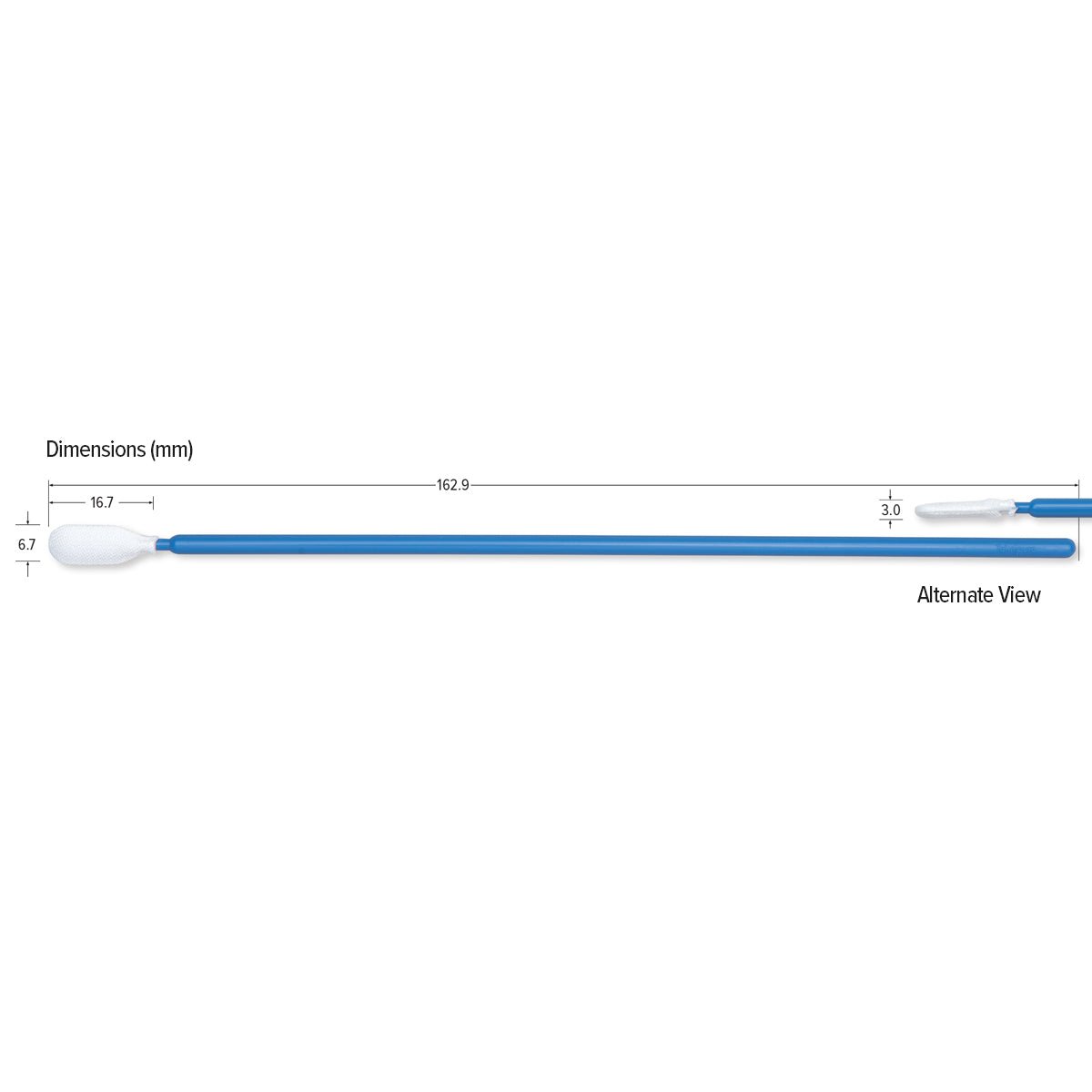

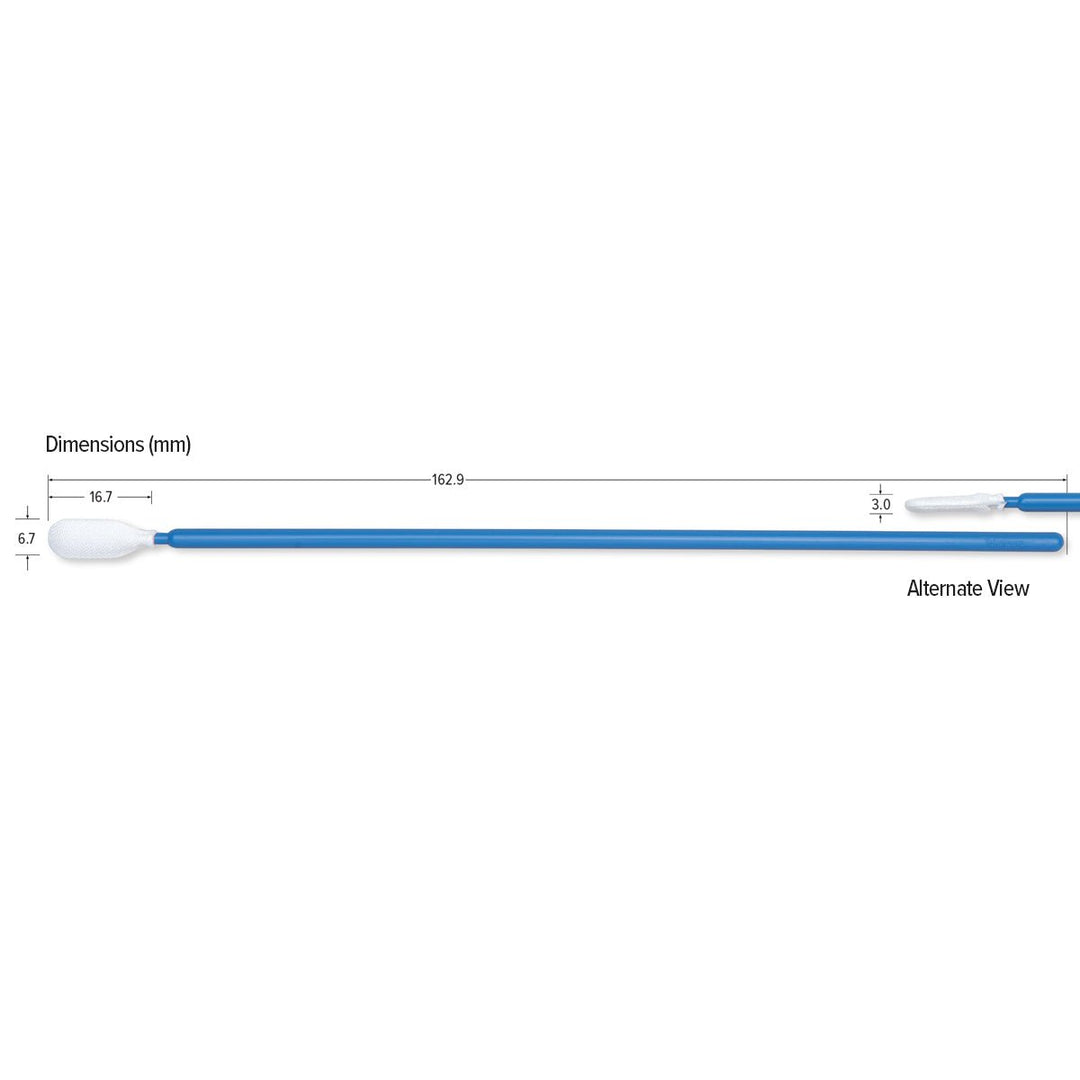

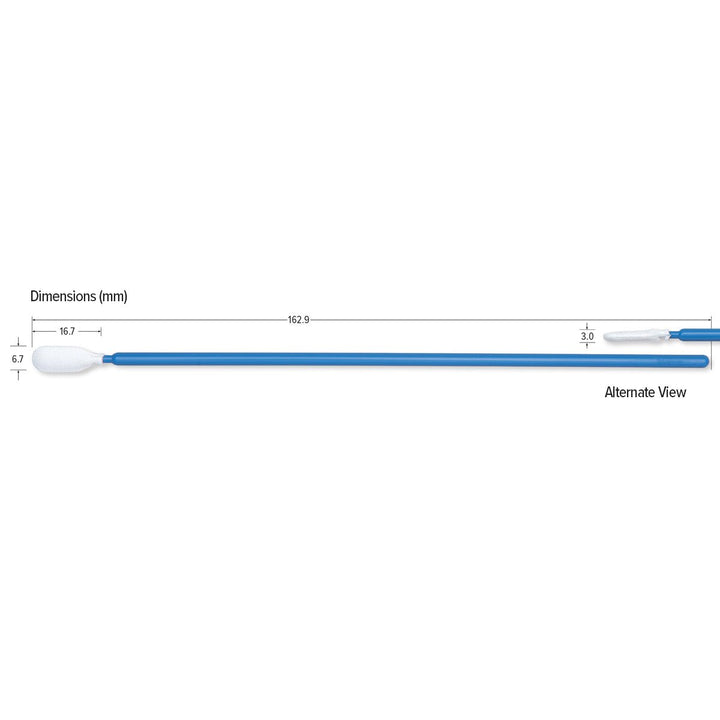

| Overall Length | 6.417 in (16.30 cm) |
| Sterility | Non-sterile |
| Packaging | 100/inner bag, 1 inner bag/outer bag, 10 outer bags/case, 1,000 swabs/case |
| Cleanroom Rating | ISO Class 5–8 (Class 100–100,000) |
| Extractables | Ultra-low NVR, ultra-low ions and particles; no adhesives, silicone, or amides |
| Traceability | Lot and bar-coded |
| Shelf Life | 5 years from date of manufacture |
| Storage | Ambient conditions, 59–86°F (15–30°C) |
| Packaging | Silicone-free bags |
| Application | Optical surface cleaning, lens and sensor wiping, fingerprint and oil removal, deep-reach precision component cleaning, streak-free cleaning of hard-to-reach surfaces |
| Industries | Semiconductor/microelectronics, aerospace/defense, medical device/optics, pharmaceutical/biologics, printing/graphics |
Frequently Asked Questions
When should I use the TKS584MW (long handle, 6.417") vs. the TKS580MW (short, 2.756")?
Both use the same double-layer woven microfiber tip with identical split-filament cleaning performance and ultra-low NVR specs. The TKS584MW’s 6.417" long handle provides maximum reach into deep equipment cavities, process chambers, and tool interiors where the TKS580MW’s 2.756" handle cannot reach without risking hand contamination of the work area. The TKS584MW also has a medium head tip — larger than the TKS580MW’s small tip — for greater surface coverage per swipe. Choose the TKS584MW for deep-reach applications and larger surface areas; the TKS580MW for close-proximity precision work.
When should I use the TKS584MW (microfiber woven) vs. the TKS554P (polyester) long-handle swab?
Both are medium head long-handle swabs at 6.417". The TKS584MW’s woven microfiber tip uses split filaments that physically lift and trap oils and fingerprints through mechanical cleaning action — preferred for optical surfaces and fingerprint removal. The TKS554P’s polyester tip provides ultra-low NVR and superior chemical resistance with aggressive solvents. Choose microfiber woven for optical cleaning and fingerprint removal; choose polyester for applications requiring maximum chemical resistance or the lowest possible NVR.
Is an ESD-safe version of the TKS584MW available?
Yes — the TKS511E is the ESD-safe microfiber woven medium head swab with a long handle (6.417") with a Stat-Rite® dissipative handle for use in ESD-sensitive cleanroom environments.
Is a short-handle microfiber woven swab available for close-proximity work?
Yes — the TKS580MW is the same woven microfiber construction in a compact 2.756" format for close-proximity precision cleaning tasks where handle length is not a factor.
