Teknipure TKS571MDF Microdenier over Foam Rectangular Head Swab, 5.020" (12.75 cm), 1000 swabs/case
Teknipure TKS571MDF Microdenier over Foam Rectangular Head Cleanroom Swab, 5.020 in (12.75 cm), Case of 1,000

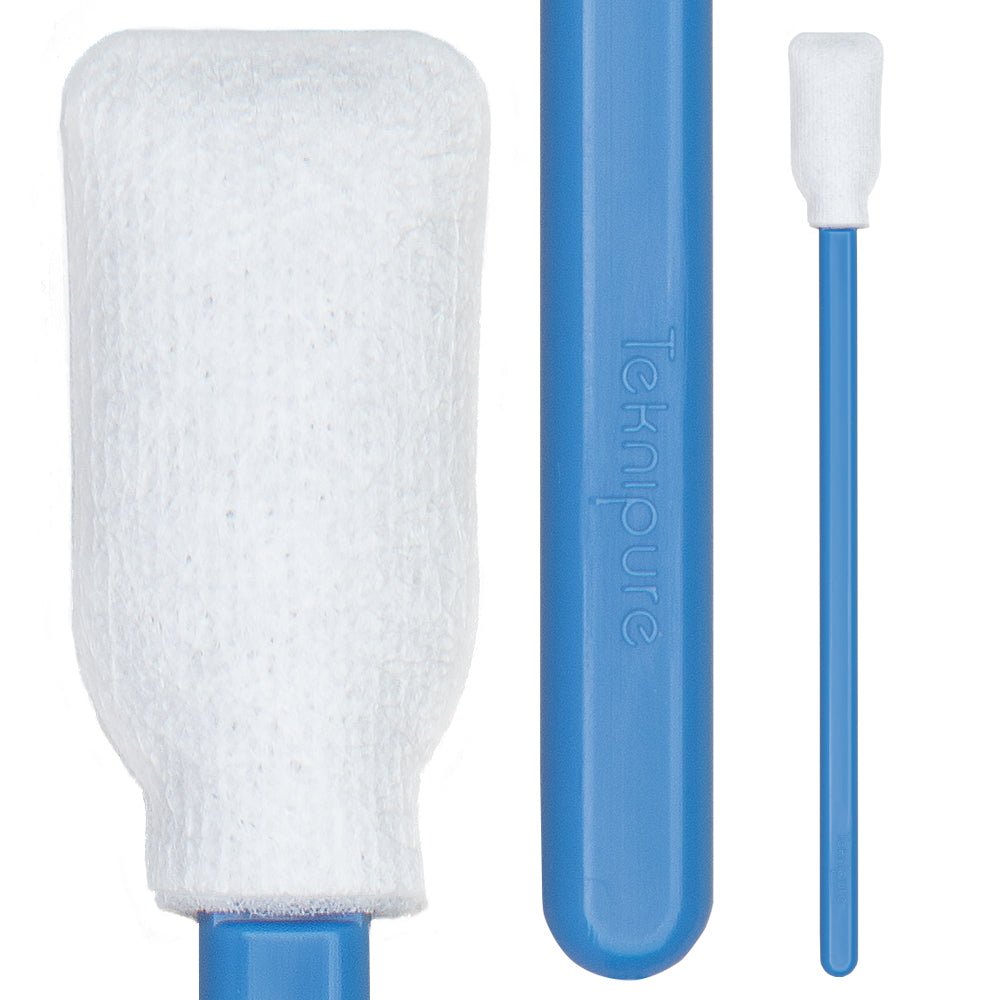

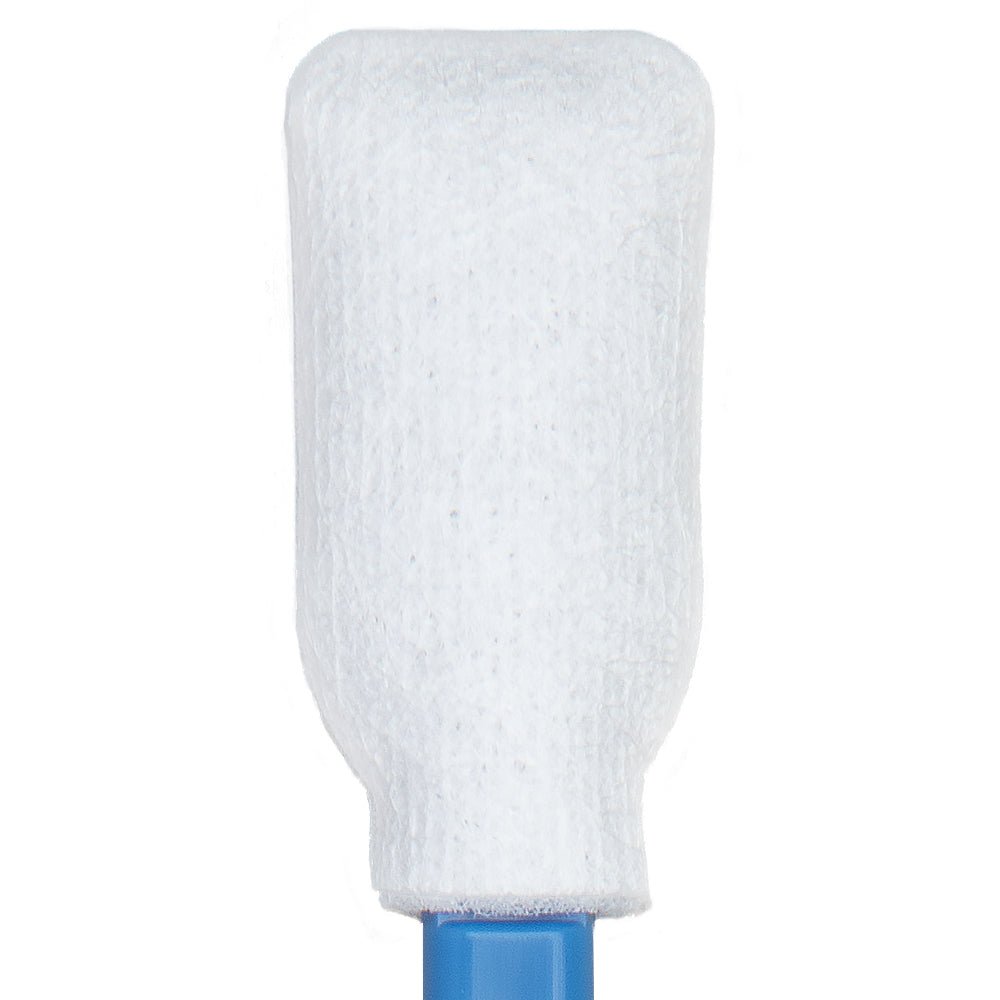

The Teknipure TKS571MDF is a single-end rectangular head microdenier over foam cleanroom swab with a 5.020" (12.75 cm) overall length, constructed from 100% microdenier polyester knit over a 100 ppi polyurethane foam core with a 100% polypropylene handle, rated for ISO Class 5–8 environments. The microdenier over foam hybrid construction combines the ultra-low NVR, softness, and particle-capturing capability of microdenier polyester knit at the tip surface with the extra absorbency and surface conformability of the foam core underneath. The rectangular tip geometry provides maximum flat surface contact for wiping, solvent application and removal, and surface preparation — while the foam core allows the tip to hold more liquid and conform to slightly irregular surfaces better than a polyester-only rectangular tip. The 5.020" handle provides reach into recessed areas and equipment cavities. Laundered to minimize NVR and ions. Thermally bonded — no adhesives, silicone, or amides. Packaged in silicone-free bags. Lot and bar-coded for traceability. 5-year shelf life stored at ambient conditions (59–86°F / 15–30°C).
Sold in cases of 1,000 swabs (50/inner bag, 2 inner bags/outer bag, 10 outer bags/case).
Specifications
| SKU | TKS571MDF |
|---|---|
| Brand | Teknipure |
| Product Line | TekniSwab® Microdenier over Foam |
| Tip Material | 100% microdenier polyester knit over 100 ppi polyurethane foam core, thermally bonded |
| Tip Geometry | Rectangular head, single end |
| Handle Material | 100% polypropylene |

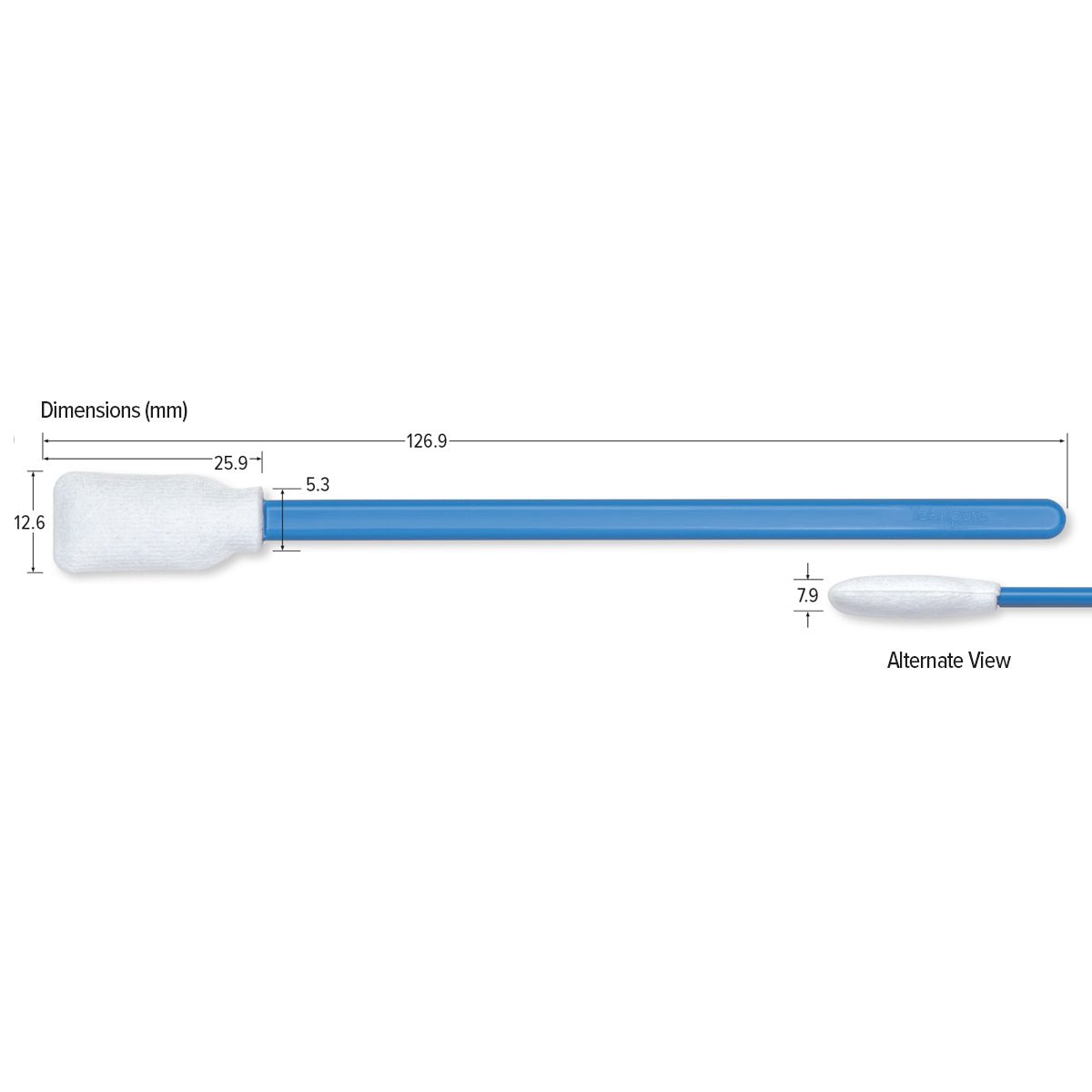

| Overall Length | 5.020 in (12.75 cm) |
| Sterility | Non-sterile |
| Packaging | 50/inner bag, 2 inner bags/outer bag, 10 outer bags/case, 1,000 swabs/case |
| Cleanroom Rating | ISO Class 5–8 (Class 100–100,000) |
| Extractables | Ultra-low NVR, ultra-low ions and particles; no adhesives, silicone, or amides |
| Traceability | Lot and bar-coded |
| Shelf Life | 5 years from date of manufacture |
| Storage | Ambient conditions, 59–86°F (15–30°C) |
| Application | Flat surface wiping, solvent application/removal on flat and slightly irregular surfaces, groove and slot cleaning, surface preparation, high-absorbency flat surface cleaning |
| Industries | Semiconductor/microelectronics, aerospace/defense, medical device/optics, pharmaceutical/biologics, printing/graphics |
Frequently Asked Questions
When should I use the TKS571MDF (rectangular, 5.020") vs. the TKS570MDF (small rounded, 2.716")?
Both use the same microdenier over foam hybrid construction. The TKS571MDF’s rectangular tip provides maximum flat surface contact for wiping flat surfaces, applying solvents uniformly, and cleaning grooves and slots. The TKS570MDF’s small rounded tip is designed for close-proximity precision work on small components and tight spaces. Choose rectangular for flat surface cleaning; choose small rounded for precision component cleaning.
When should I use the TKS571MDF (microdenier over foam) vs. the TKS553P (polyester only) for rectangular head cleaning?
Both are rectangular head swabs at 5.020" for flat surface cleaning. The TKS571MDF adds a foam core for extra absorbency and surface conformability — preferred when applying larger volumes of solvent, cleaning slightly irregular surfaces, or when the tip needs to hold more liquid per swipe. The TKS553P (polyester only) provides the absolute lowest NVR and is preferred for the most critical optical surfaces where even the foam core’s minor additional extractables must be avoided.
When should I use the TKS571MDF (rectangular, 5.020") vs. the TKS572MDF (medium head, 6.417")?
Both are microdenier over foam swabs. The TKS571MDF’s rectangular tip at 5.020" is optimized for flat surface contact at moderate reach. The TKS572MDF’s medium head tip at 6.417" provides greater reach into deep equipment cavities and process chambers, with a larger tip surface for greater coverage per swipe. Choose the TKS571MDF for moderate-reach flat surface cleaning; the TKS572MDF for deep-reach applications.
Is an ESD-safe version of the TKS571MDF available?
Contact MTE Solutions for availability of ESD-safe microdenier over foam rectangular head swabs in the TekniSwab® line.
