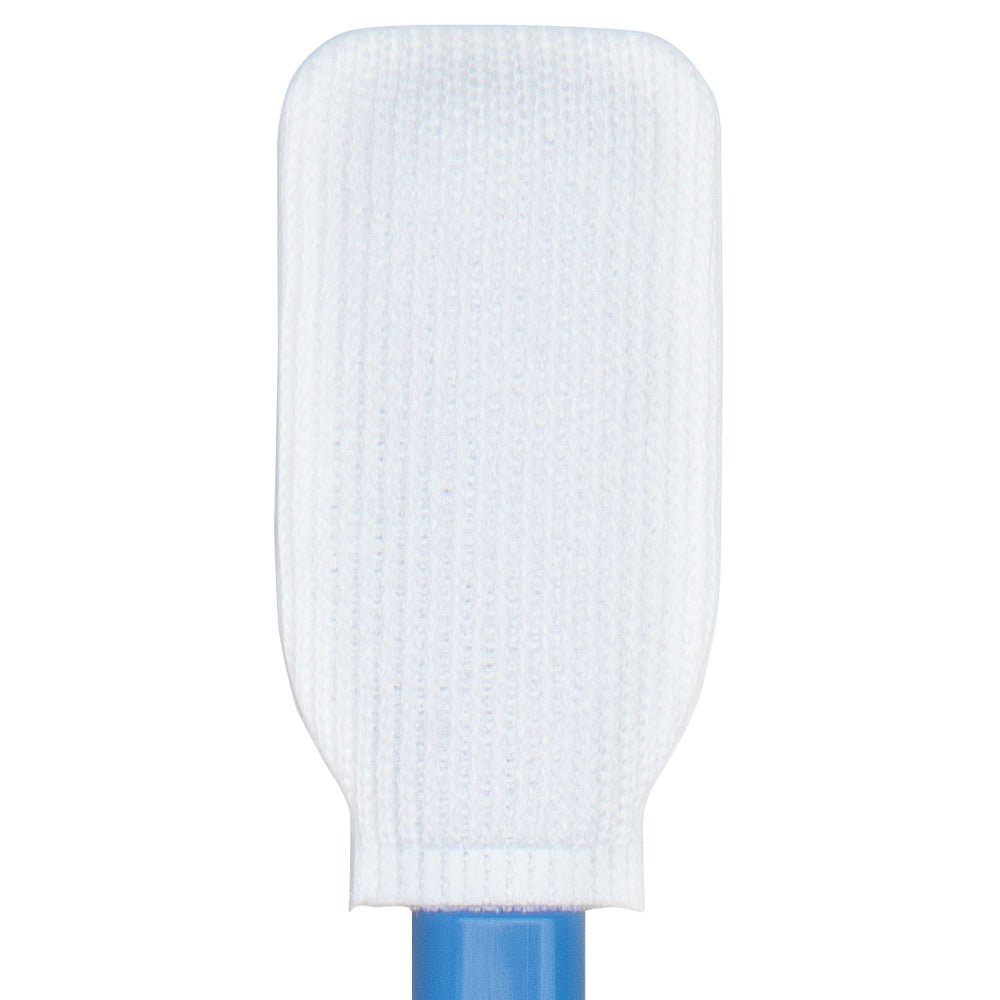

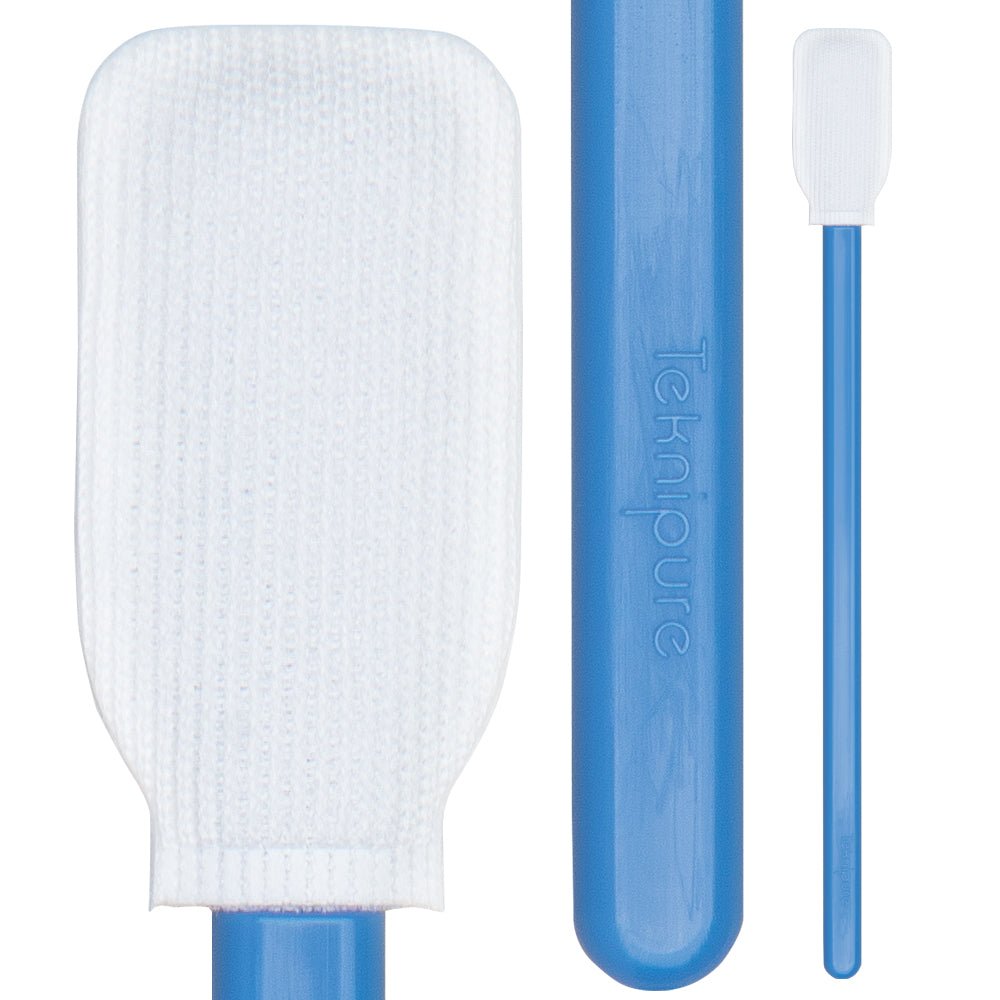

Teknipure TKS553P Polyester Rectangular Head Swab, 5.020" (12.75 cm), 1000 swabs/case
Teknipure TKS553P Polyester Rectangular Head Cleanroom Swab, 5.020 in (12.75 cm), Case of 1,000
The Teknipure TKS553P is a single-end rectangular head cleanroom swab with a 5.020" (12.75 cm) overall length, constructed from double-layer 100% polyester knit with a 100% polypropylene handle, rated for ISO Class 5–8 environments. The double-layer polyester knit tip provides ultra-low particle generation, ultra-low NVR, and excellent chemical resistance with aggressive solvents — making polyester the preferred tip material over foam for optical surface cleaning, lens wiping, sensor cleaning, and precision component cleaning where the lowest possible contamination from the swab itself is required. The rectangular head geometry provides maximum flat surface contact for wiping, solvent application and removal, and surface preparation. Thermally bonded — no adhesives, silicone, or amides. Packaged in silicone-free bags. Lot and bar-coded for traceability. 5-year shelf life stored at ambient conditions (59–86°F / 15–30°C).
Sold in cases of 1,000 swabs (50/inner bag, 2 inner bags/outer bag, 10 outer bags/case).
Specifications
| SKU | TKS553P |
|---|---|
| Brand | Teknipure |
| Product Line | TekniSwab® Polyester |
| Tip Material | Double-layer 100% polyester knit, thermally bonded |
| Tip Geometry | Rectangular head, single end |
| Handle Material | 100% polypropylene |

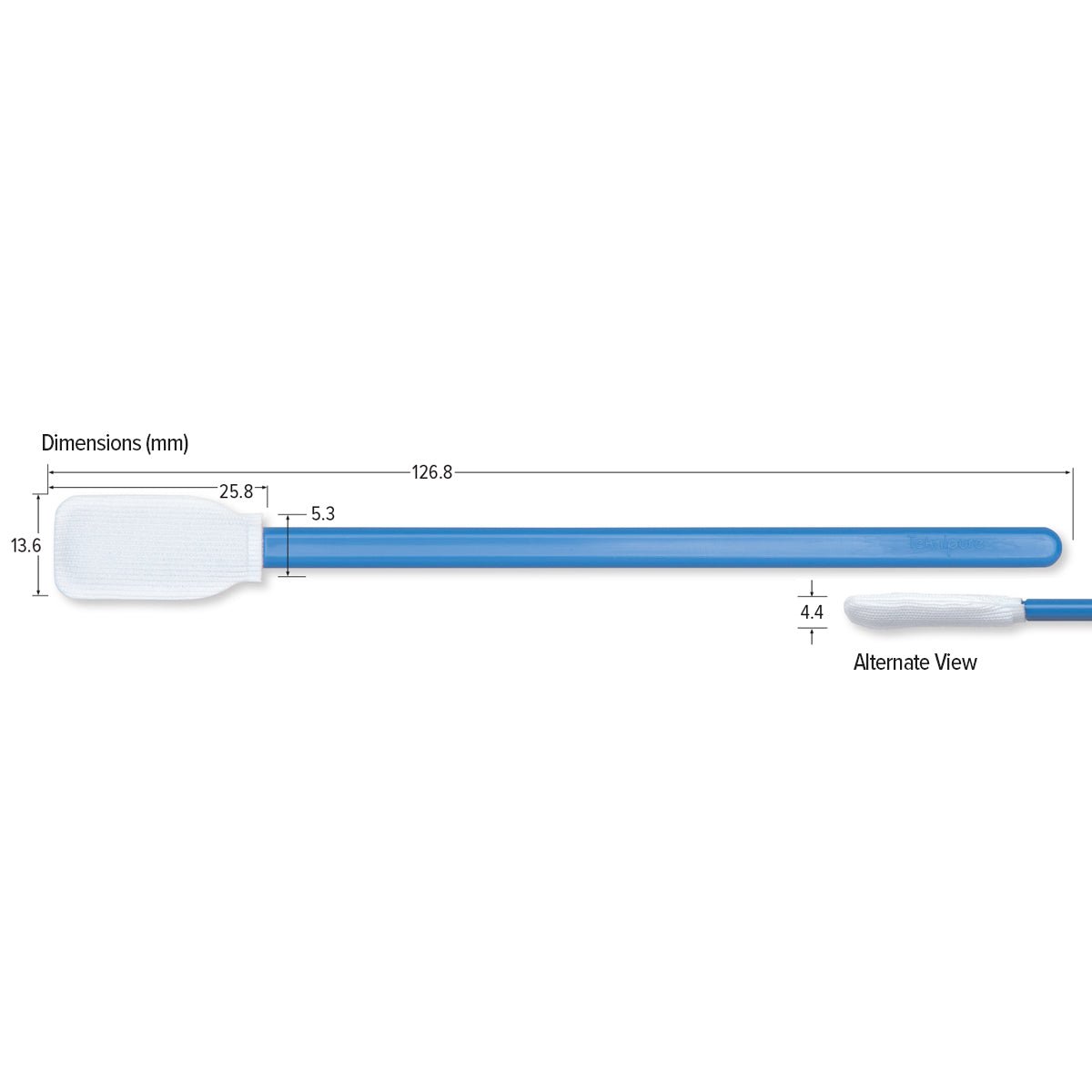

| Overall Length | 5.020 in (12.75 cm) |
| Sterility | Non-sterile |
| Packaging | 50/inner bag, 2 inner bags/outer bag, 10 outer bags/case, 1,000 swabs/case |
| Cleanroom Rating | ISO Class 5–8 (Class 100–100,000) |
| Extractables | Ultra-low NVR, ultra-low ions and particles; no adhesives, silicone, or amides |
| Traceability | Lot and bar-coded |
| Shelf Life | 5 years from date of manufacture |
| Storage | Ambient conditions, 59–86°F (15–30°C) |
| Packaging | Silicone-free bags |
| Application | Optical surface cleaning, lens and sensor wiping, streak-free precision component cleaning, solvent application/removal, flat surface wiping, groove and slot cleaning |
| Industries | Semiconductor/microelectronics, aerospace/defense, medical device/optics, pharmaceutical/biologics, printing/graphics |
Frequently Asked Questions
When should I use a polyester swab (TKS553P) vs. a foam swab (TKS526F) for rectangular head cleaning?
Both are rectangular head swabs at 5.020" for flat surface cleaning and solvent application. Polyester (TKS553P) provides ultra-low particle generation, ultra-low NVR, and superior chemical resistance with aggressive solvents — making it the preferred choice for optical surfaces, lenses, sensors, and precision components where contamination from the swab tip itself must be minimized. Foam (TKS526F) provides higher liquid absorbency and better particle-capturing capability for scrubbing tasks and high-volume solvent application. Choose polyester for optical and precision surface cleaning; choose foam for high-absorbency and scrubbing applications.
What is the advantage of double-layer polyester knit construction?
The double-layer construction bonds two layers of polyester knit together, providing enhanced absorbency and softness compared to a single-layer tip while maintaining the ultra-low particle generation and NVR characteristics of polyester. The double layer also improves durability and abrasion resistance — the tip resists snagging and abrasion during use, preventing the release of particles and fibers that could contaminate the surface being cleaned.
Is a long-handle polyester swab available for deep-reach applications?
Yes — the TKS554P is the polyester medium head swab with a long handle (6.417") for cleaning larger surface areas and deep-reach applications where the 5.020" handle of the TKS553P is insufficient.
Is an ESD-safe polyester rectangular head swab available?
Contact MTE Solutions for availability of ESD-safe polyester rectangular head swabs in the TekniSwab® line.
