Teknipure TKS529F Medium Head Foam Swab with Long Handle, 6.417" (16.30 cm), 1000 swabs/case
Teknipure TKS529F Medium Head Foam Cleanroom Swab with Long Handle, 6.417 in (16.30 cm), Case of 1,000

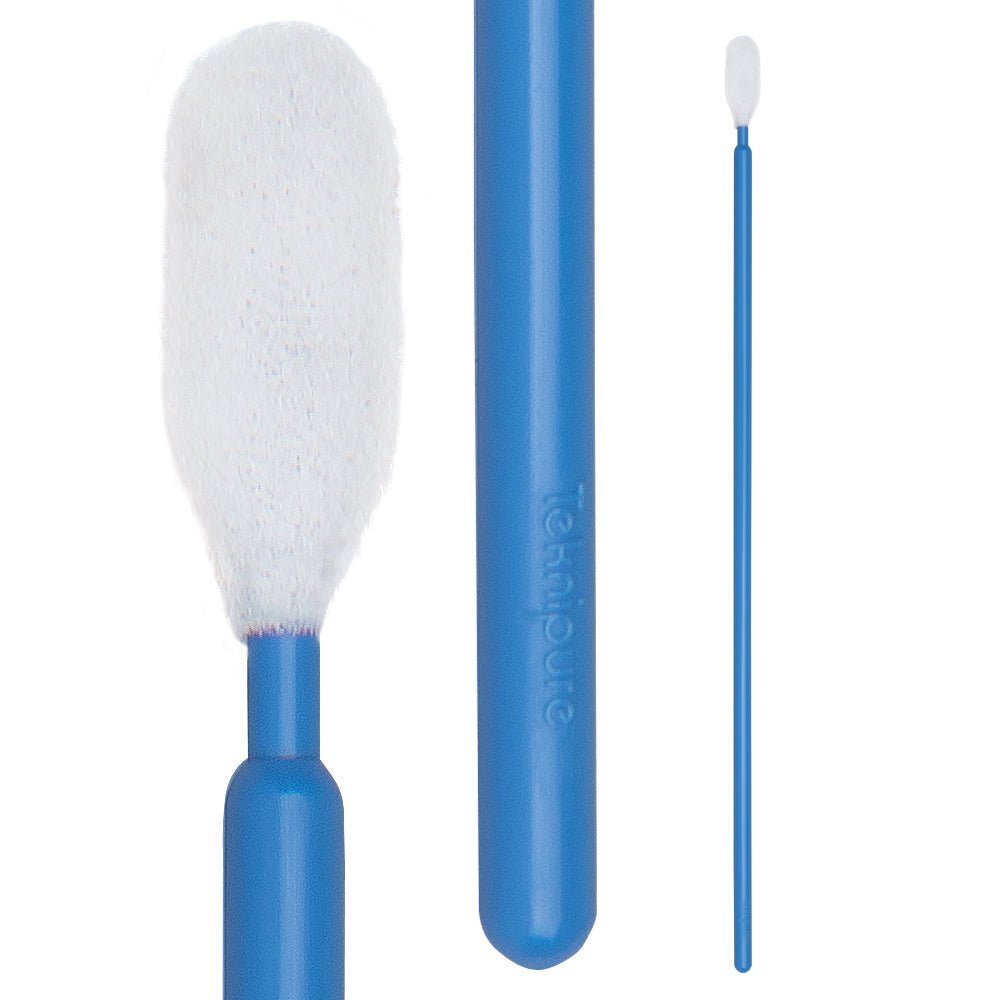

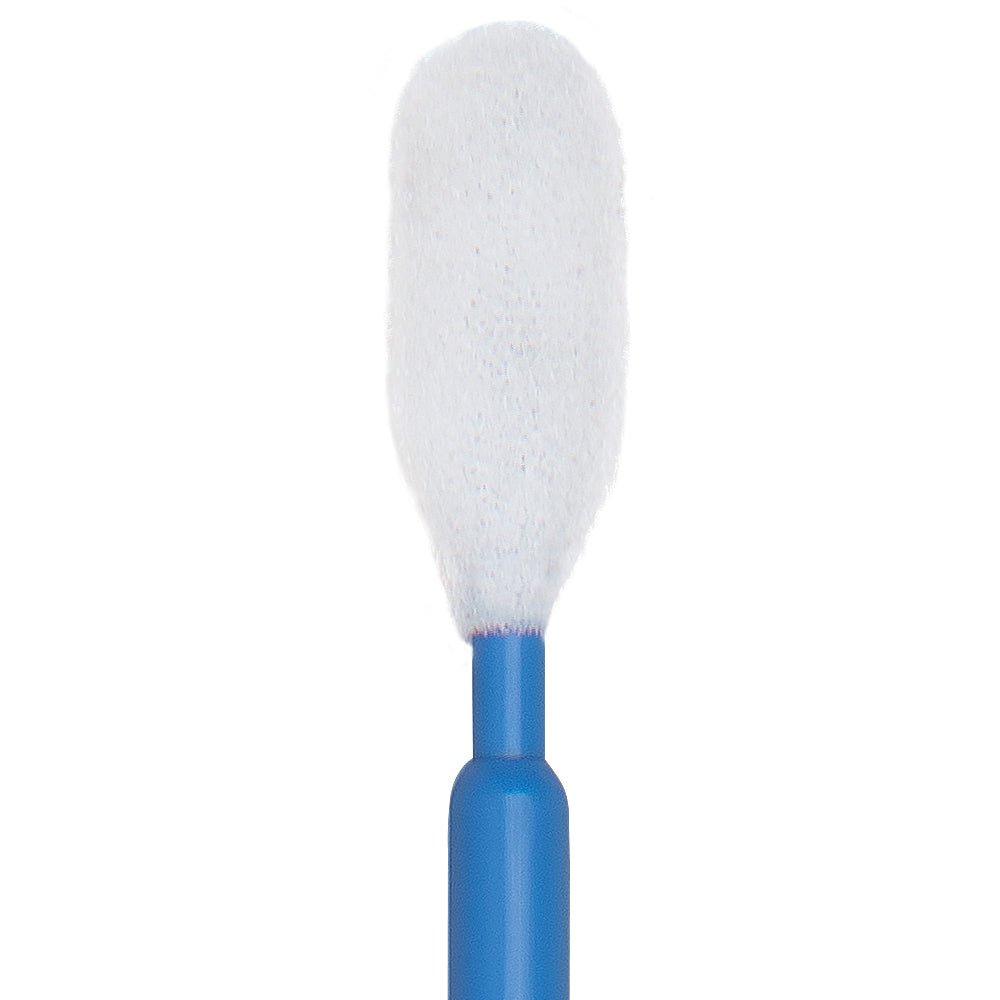

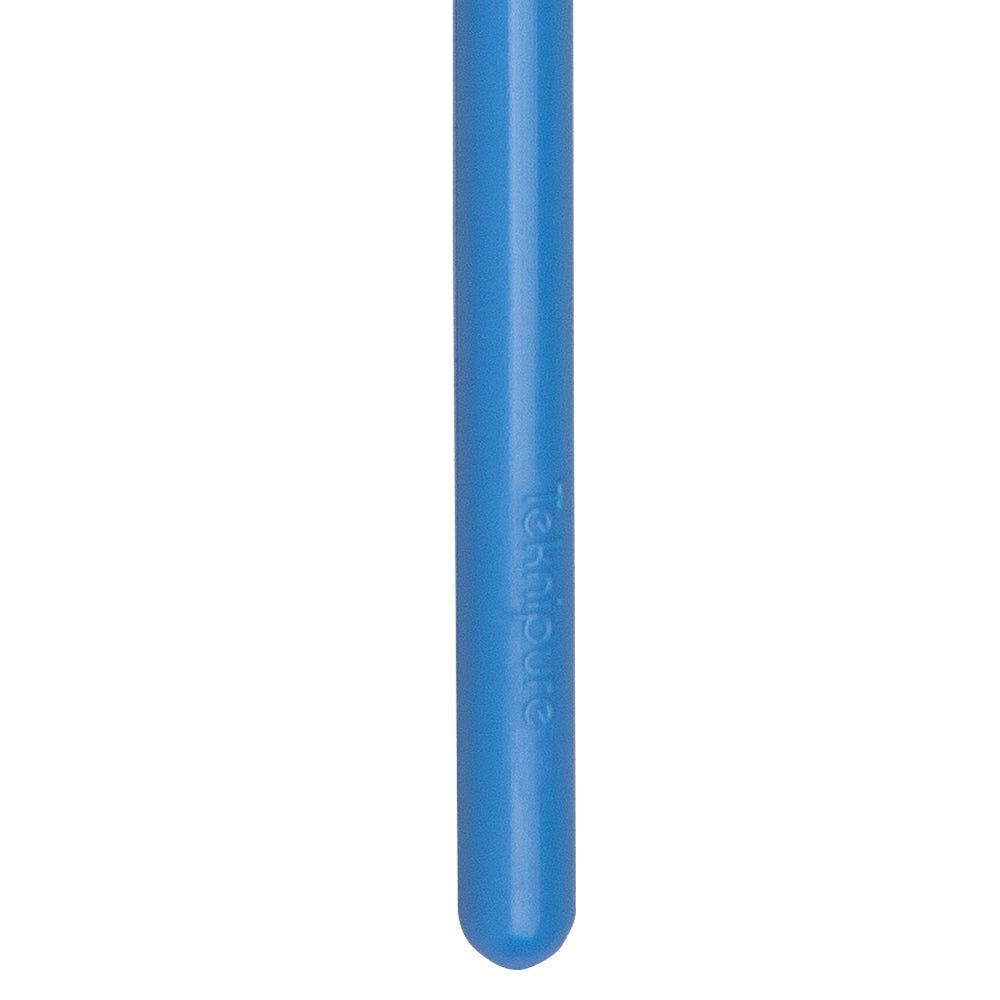

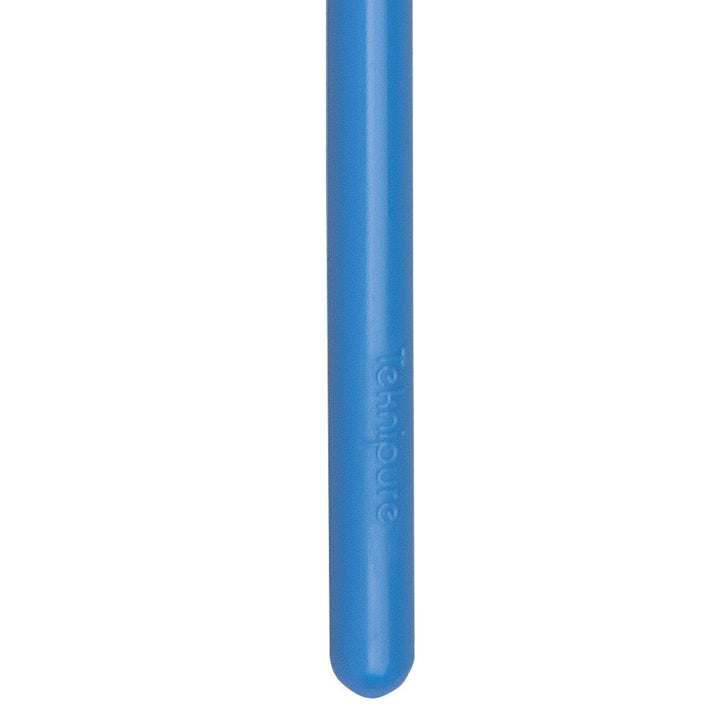

The Teknipure TKS529F is a single-end medium head foam cleanroom swab with a 6.417" (16.30 cm) long handle, constructed from 100 ppi polyurethane foam with a 100% polypropylene handle, rated for ISO Class 5–8 environments. The medium head tip provides a larger contact surface than the rectangular TKS526F for greater liquid absorption, solvent application coverage, and surface wiping efficiency on larger flat surfaces. The 6.417" long handle — the longest in the TekniSwab® foam line — provides maximum reach into deep equipment cavities, process chambers, tool interiors, and hard-to-access areas where shorter swabs cannot reach without risking hand contamination of the work area. Foam tip is thermally bonded — no adhesives, silicone, or amides. Laundered to minimize NVR, ions, and particulate contamination. Packaged in silicone-free bags. Lot and bar-coded for traceability. 5-year shelf life stored at ambient conditions (59–86°F / 15–30°C).
Sold in cases of 1,000 swabs (50/inner bag, 2 inner bags/outer bag, 10 outer bags/case).
Specifications
| SKU | TKS529F |
|---|---|
| Brand | Teknipure |
| Product Line | TekniSwab® Foam |
| Tip Material | 100 ppi polyurethane foam, thermally bonded |
| Tip Geometry | Medium head, single end |
| Handle Material | 100% polypropylene |

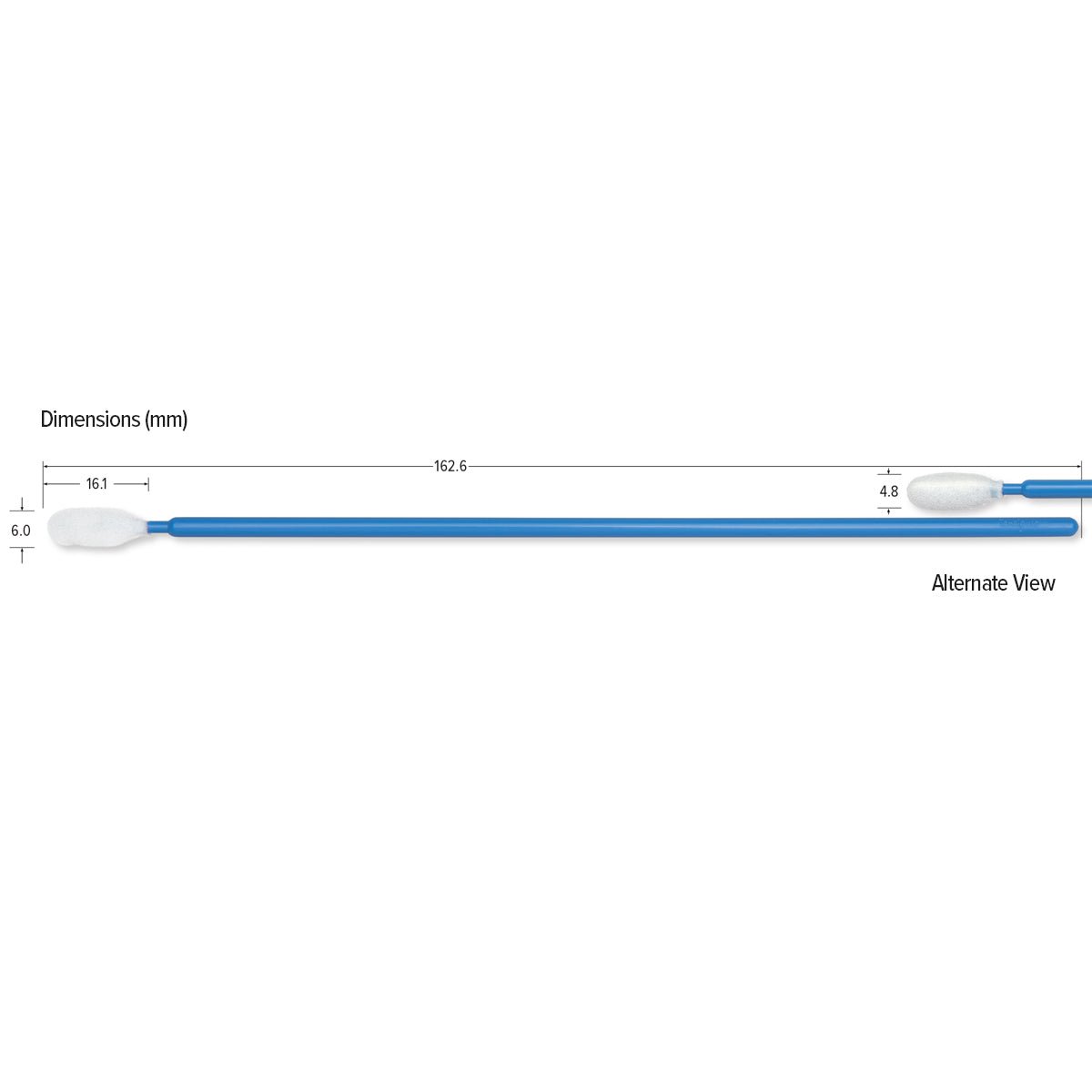

| Overall Length | 6.417 in (16.30 cm) |
| Sterility | Non-sterile |
| Packaging | 50/inner bag, 2 inner bags/outer bag, 10 outer bags/case, 1,000 swabs/case |
| Cleanroom Rating | ISO Class 5–8 (Class 100–100,000) |
| Extractables | Low NVR, low ions; no adhesives, silicone, or amides |
| Traceability | Lot and bar-coded |
| Shelf Life | 5 years from date of manufacture |
| Storage | Ambient conditions, 59–86°F (15–30°C) |
| Packaging | Silicone-free bags |
| Application | Deep cavity cleaning, process chamber interiors, tool interior surfaces, large flat surface wiping, solvent application/removal with maximum reach |
| Industries | Semiconductor/microelectronics, aerospace/defense, medical device/optics, pharmaceutical/biologics, printing/graphics |
Frequently Asked Questions
When should I use the TKS529F (6.417" long handle) vs. the TKS526F (5.020")?
Both are foam swabs for flat surface cleaning and solvent application, but differ in handle length and tip size. The TKS529F’s 6.417" handle provides greater reach into deep equipment cavities, process chambers, and tool interiors where the TKS526F’s 5.020" handle cannot reach without risking hand contamination of the work area. The TKS529F also has a medium head tip — larger than the TKS526F’s rectangular tip — for greater liquid absorption and surface coverage per swipe. Choose the TKS529F for deep-reach applications and larger surface areas; the TKS526F for moderate-reach flat surface cleaning.
What does "medium head" mean for foam swab tip size?
"Medium head" refers to the tip size relative to other swabs in the TekniSwab® line. The medium head provides a larger contact surface than a standard or rectangular tip, increasing liquid absorption capacity per swab and reducing the number of swabs needed to apply or remove solvents from a given surface area. This makes the TKS529F more efficient for larger surface cleaning tasks compared to smaller-tip swabs.
Is an ESD-safe version of the TKS529F available?
Yes — the TKS509E is the ESD-safe medium head foam swab with a long handle (6.417") with a Stat-Rite® dissipative handle for use in ESD-sensitive cleanroom environments.
Is a polyester version of the long-handle medium head swab available?
Yes — the TKS554P is the polyester medium head swab with a long handle (6.417") for applications where polyester tip material is preferred over foam — typically for lower particle generation and chemical compatibility with aggressive solvents.
