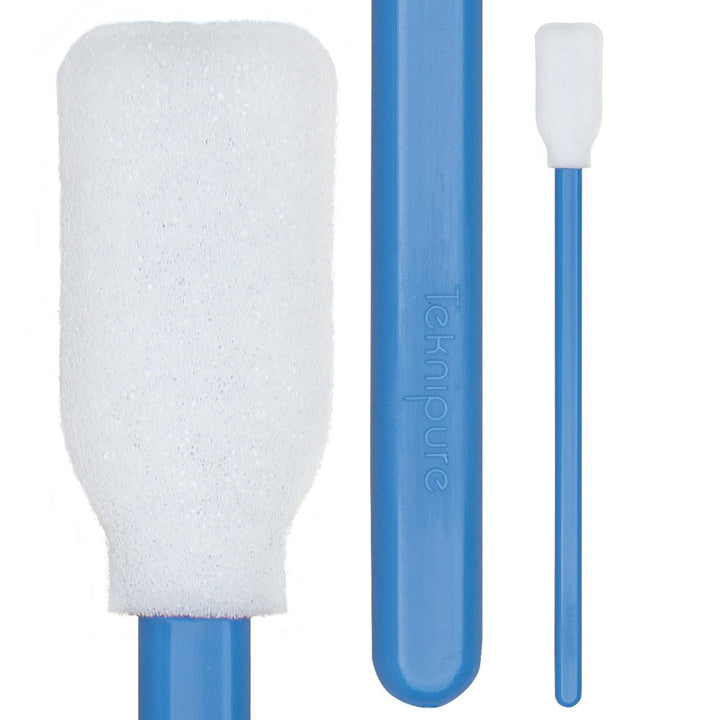

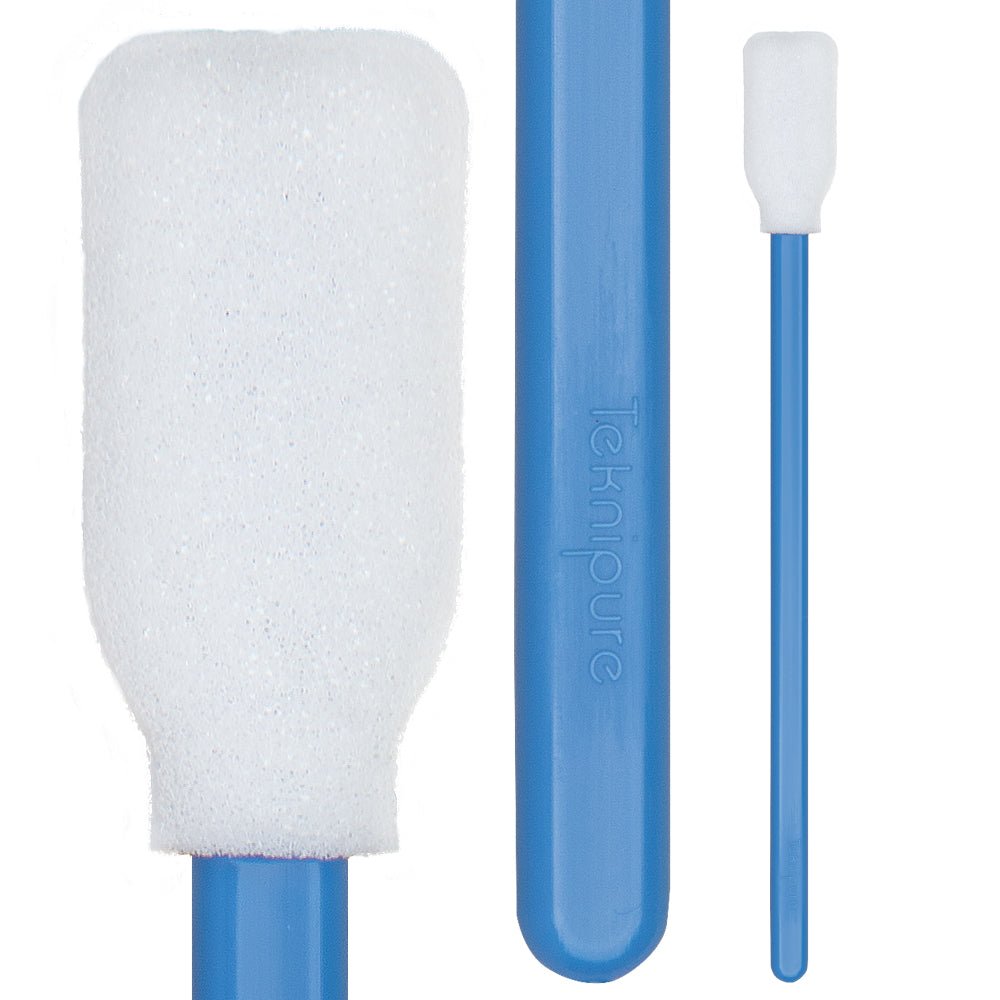

Teknipure TKS526F Rectangular Head Foam Swab, 5.020" (12.75 cm), 1000 swabs/case
Teknipure TKS526F Rectangular Head Foam Cleanroom Swab, 5.020 in (12.75 cm), Case of 1,000

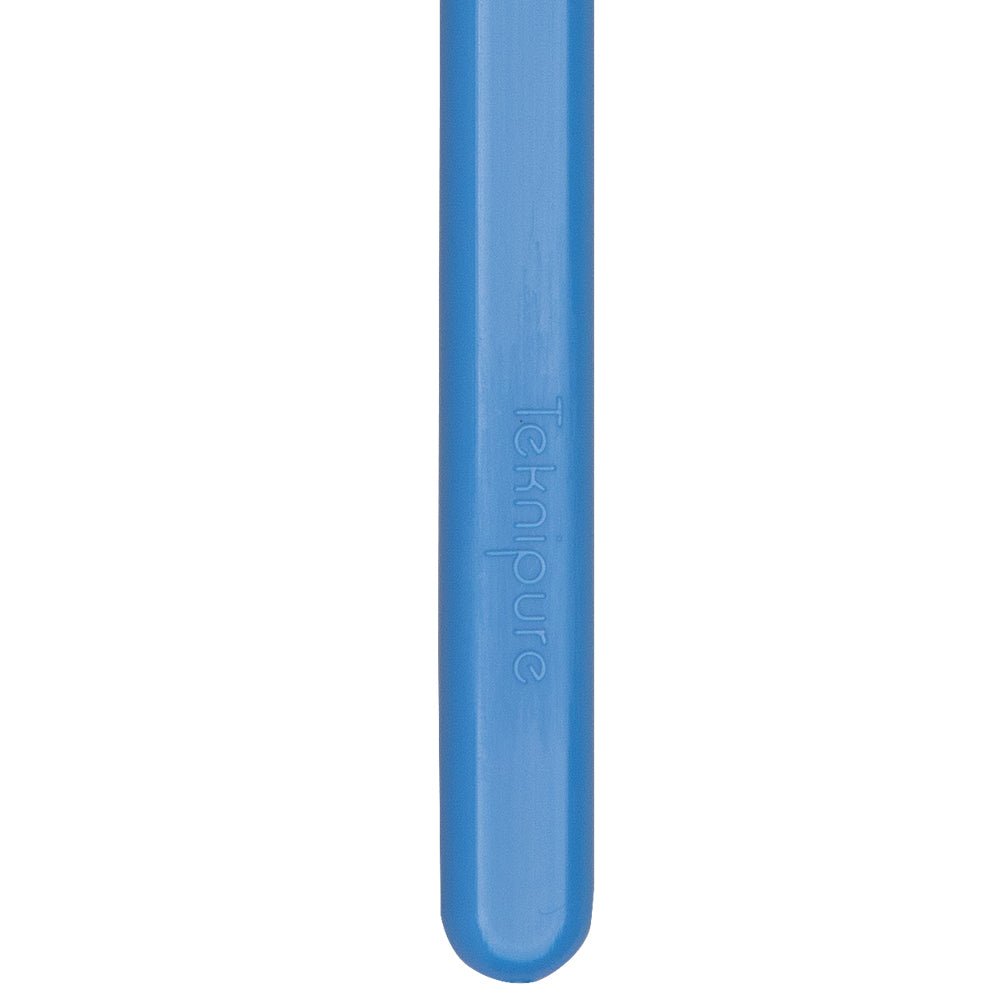

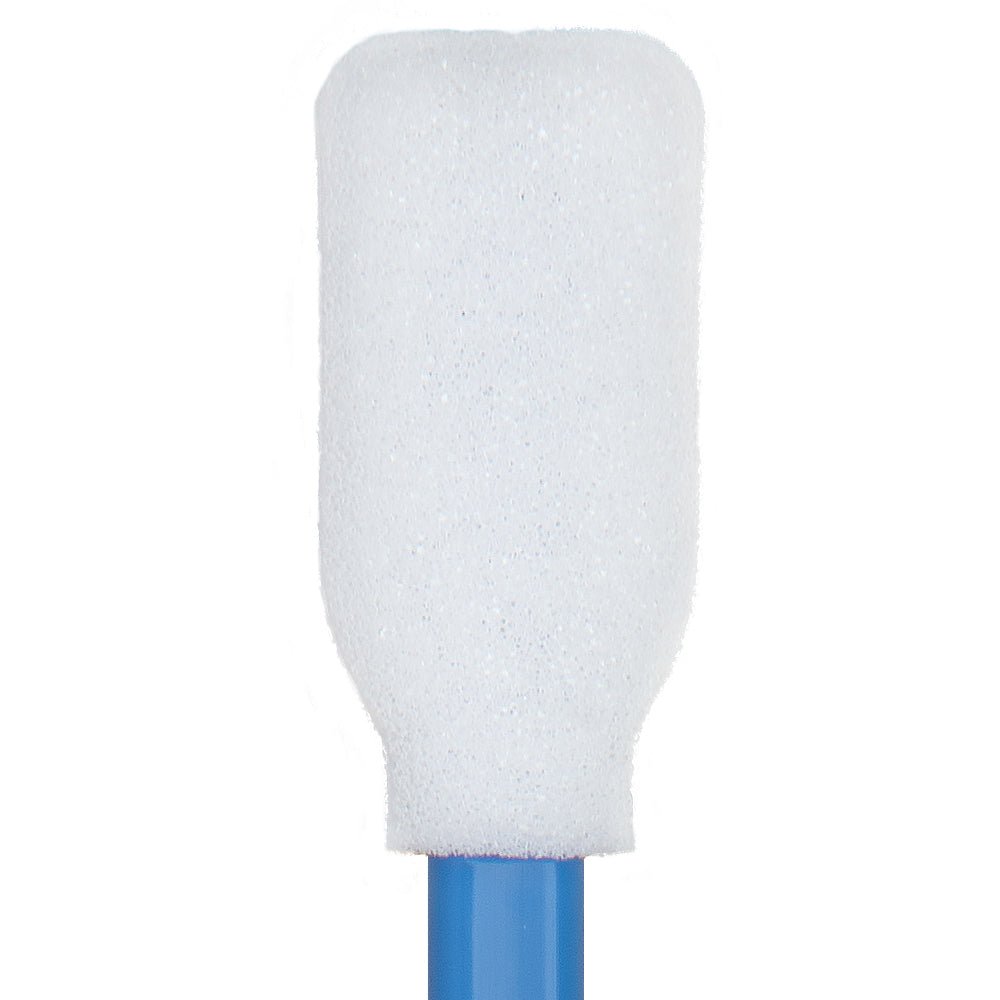

The Teknipure TKS526F is a single-end rectangular head foam cleanroom swab with a 5.020" (12.75 cm) overall length, constructed from 100 ppi polyurethane foam with a 100% polypropylene handle, rated for ISO Class 5–8 environments. The rectangular tip geometry provides maximum flat surface contact for wiping, solvent application and removal, surface preparation, and cleaning of flat surfaces, grooves, and slots where a pointed tip would make insufficient contact. The longer 5.020" handle provides reach into recessed areas, equipment cavities, and tight spaces that shorter swabs cannot access. Foam tip is thermally bonded — no adhesives, silicone, or amides. Laundered using Teknipure’s proprietary cleaning system to minimize NVR, ions, and particulate contamination. Packaged in silicone-free bags. Lot and bar-coded for traceability. 5-year shelf life stored at ambient conditions (59–86°F / 15–30°C).
Sold in cases of 1,000 swabs (50/inner bag, 2 inner bags/outer bag, 10 outer bags/case).
Specifications
| SKU | TKS526F |
|---|---|
| Brand | Teknipure |
| Product Line | TekniSwab® Foam |
| Tip Material | 100 ppi polyurethane foam, thermally bonded |
| Tip Geometry | Rectangular head, single end |
| Handle Material | 100% polypropylene |

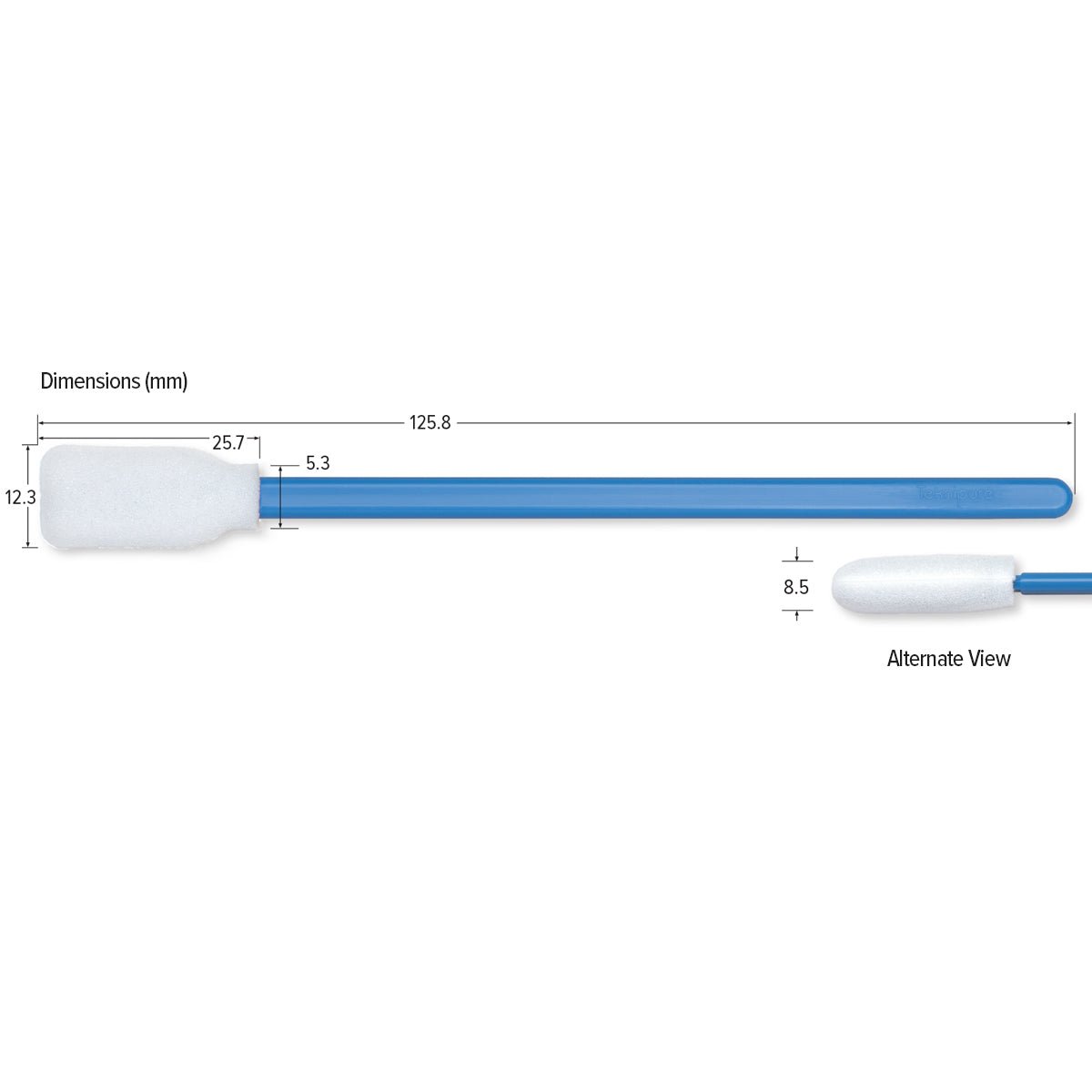

| Overall Length | 5.020 in (12.75 cm) |
| Sterility | Non-sterile |
| Packaging | 50/inner bag, 2 inner bags/outer bag, 10 outer bags/case, 1,000 swabs/case |
| Cleanroom Rating | ISO Class 5–8 (Class 100–100,000) |
| Extractables | Low NVR, low ions; no adhesives, silicone, or amides |
| Traceability | Lot and bar-coded |
| Shelf Life | 5 years from date of manufacture |
| Storage | Ambient conditions, 59–86°F (15–30°C) |
| Packaging | Silicone-free bags |
| Application | Flat surface wiping, solvent application/removal, surface preparation, groove and slot cleaning, recessed area cleaning, liquid absorption |
| Industries | Semiconductor/microelectronics, aerospace/defense, medical device/optics, pharmaceutical/biologics, printing/graphics |
Frequently Asked Questions
When should I use a rectangular head swab (TKS526F) vs. a pointed spiral swab (TKS520F)?
The rectangular head (TKS526F) provides maximum flat surface contact — ideal for wiping flat surfaces, applying or removing solvents uniformly, cleaning grooves and slots, and surface preparation tasks where full tip-to-surface contact is needed. The pointed spiral tip (TKS520F) is designed for tight spaces, connector cavities, pin fields, and intersecting surfaces where a rectangular tip cannot make contact. Choose based on the geometry of the surface being cleaned: flat surfaces → rectangular; cavities and tight spaces → pointed spiral.
Why is the TKS526F longer (5.020") than the TKS520F (2.626")?
The longer 5.020" handle provides reach into recessed areas, equipment cavities, and tight spaces that shorter swabs cannot access — while still maintaining the rectangular tip geometry for flat surface contact at the tip. The shorter TKS520F (2.626") is designed for close-proximity precision work where handle length is not a factor. Choose the longer handle when you need to reach into equipment interiors, deep slots, or recessed surfaces.
Is a long-handle foam swab with a medium head available for larger surface areas?
Yes — the TKS529F is the medium head foam swab with a long handle (6.417") for cleaning larger surface areas with greater reach in cleanroom environments.
Is an ESD-safe version of the TKS526F available?
Contact MTE Solutions for availability of ESD-safe rectangular head foam swabs in the TekniSwab® line.
