Teknipure TKS511E Medium Head Microfiber Woven ESD Swab with Long Handle, 6.417" (16.30 cm), 1000 swabs/case
Teknipure TKS511E Medium Head Microfiber Woven ESD Cleanroom Swab with Long Handle, 6.417 in (16.30 cm), Case of 1,000

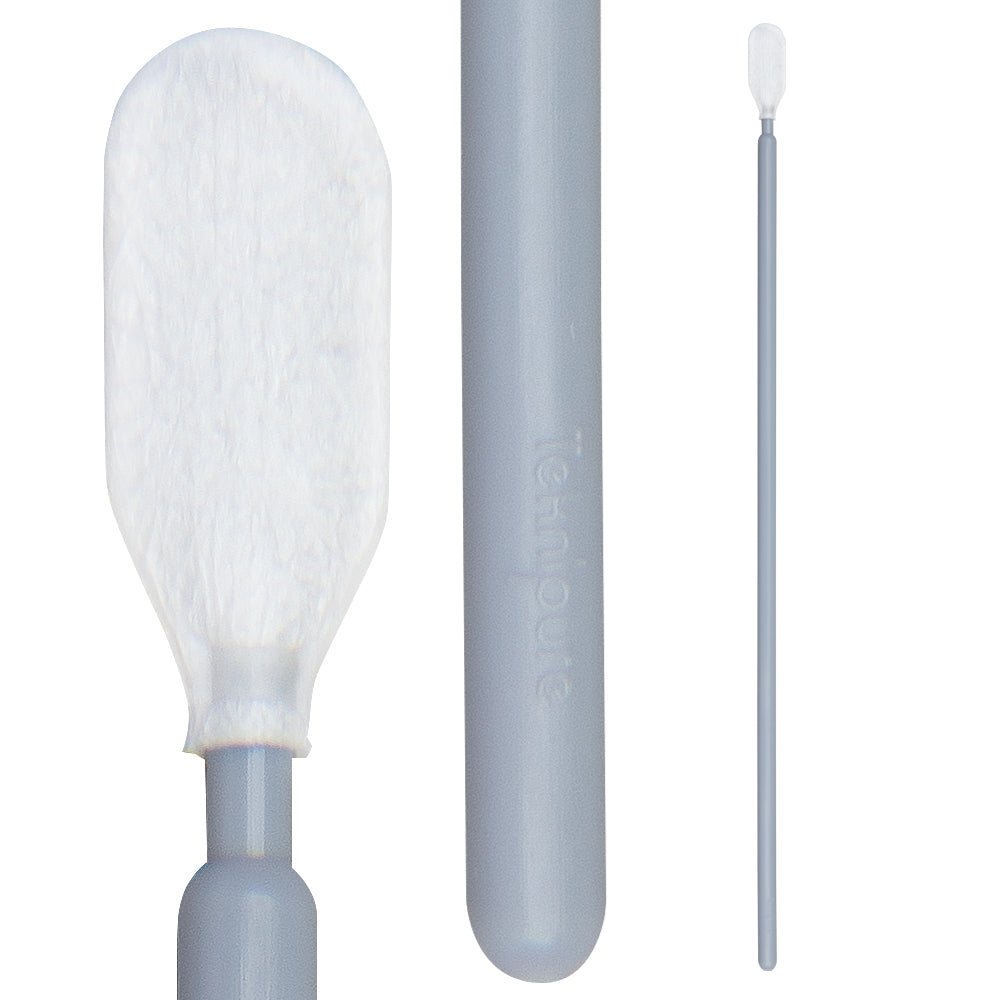

The Teknipure TKS511E is the ESD-safe version of the medium head woven microfiber long-handle cleanroom swab, with a 6.417" (16.30 cm) overall length, constructed from double-layer woven polyester/nylon microfiber with a Stat-Rite® electrostatic dissipative (ESD) handle, rated for ISO Class 5–8 environments. This swab delivers the triple combination most demanding in ESD-sensitive optical and precision cleaning: the split-filament mechanical cleaning action of woven microfiber that physically lifts and traps particles, oils, and fingerprints; the maximum reach of the 6.417" long handle for deep equipment cavities and process chambers; and the permanent inherent ESD dissipation of the Stat-Rite® handle. Stat-Rite® uses inherently dissipative polymers built into the handle material — not a surface coating — providing permanent ESD performance that does not degrade with use or solvent exposure. Thermally bonded — no adhesives, silicone, or amides. Lot and bar-coded for traceability. 5-year shelf life stored at ambient conditions (59–86°F / 15–30°C).
Sold in cases of 1,000 swabs (100/inner bag, 1 inner bag/outer bag, 10 outer bags/case).
Specifications
| SKU | TKS511E |
|---|---|
| Brand | Teknipure |
| Product Line | TekniSwab® ESD Microfiber Woven |

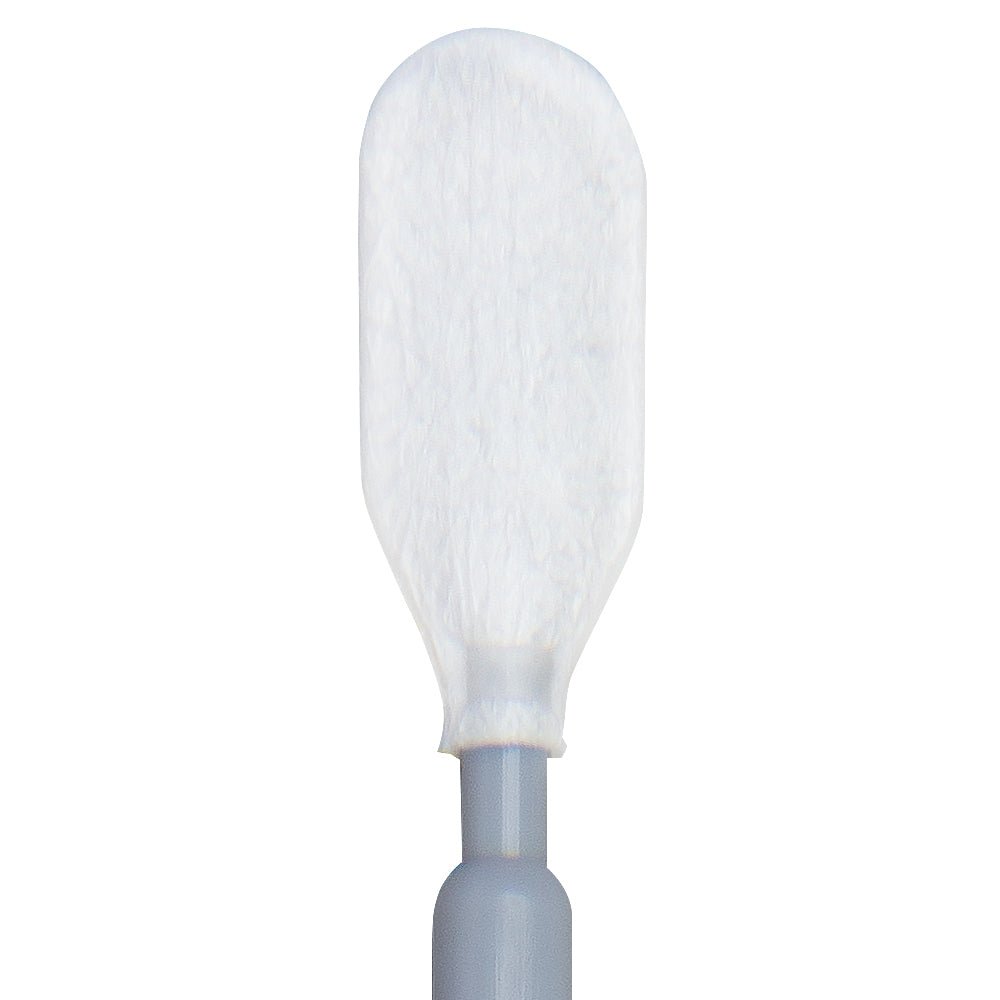

| Tip Material | Double-layer woven polyester/nylon microfiber, thermally bonded |
| Tip Geometry | Medium head, single end |

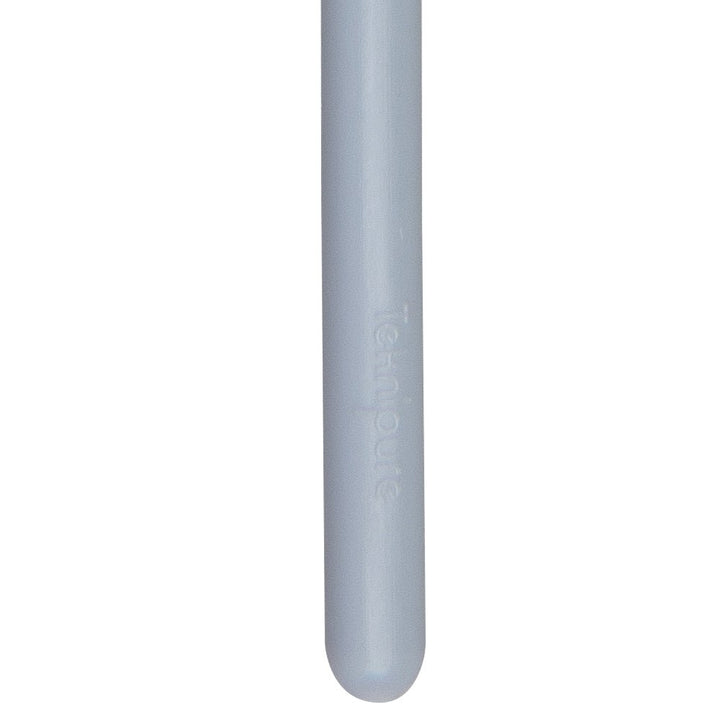

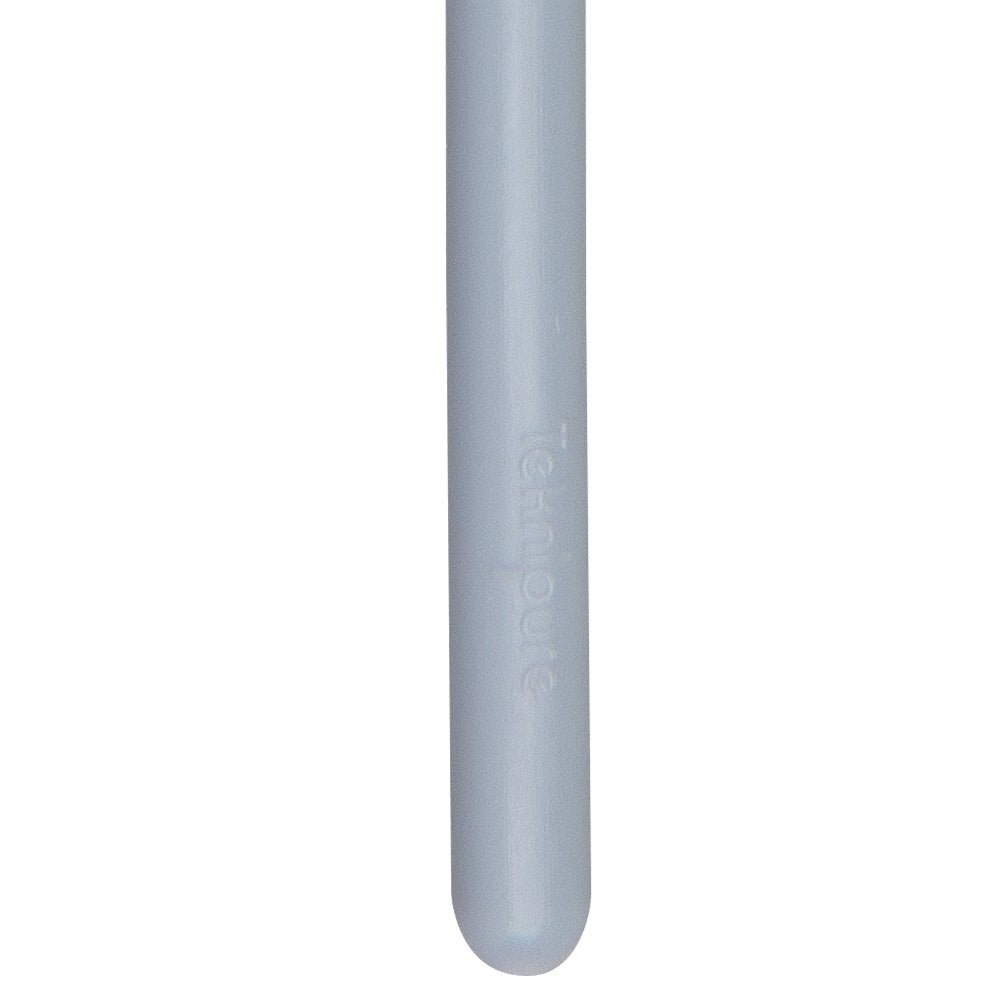

| Handle Material | Stat-Rite® inherently dissipative polypropylene (ESD) |

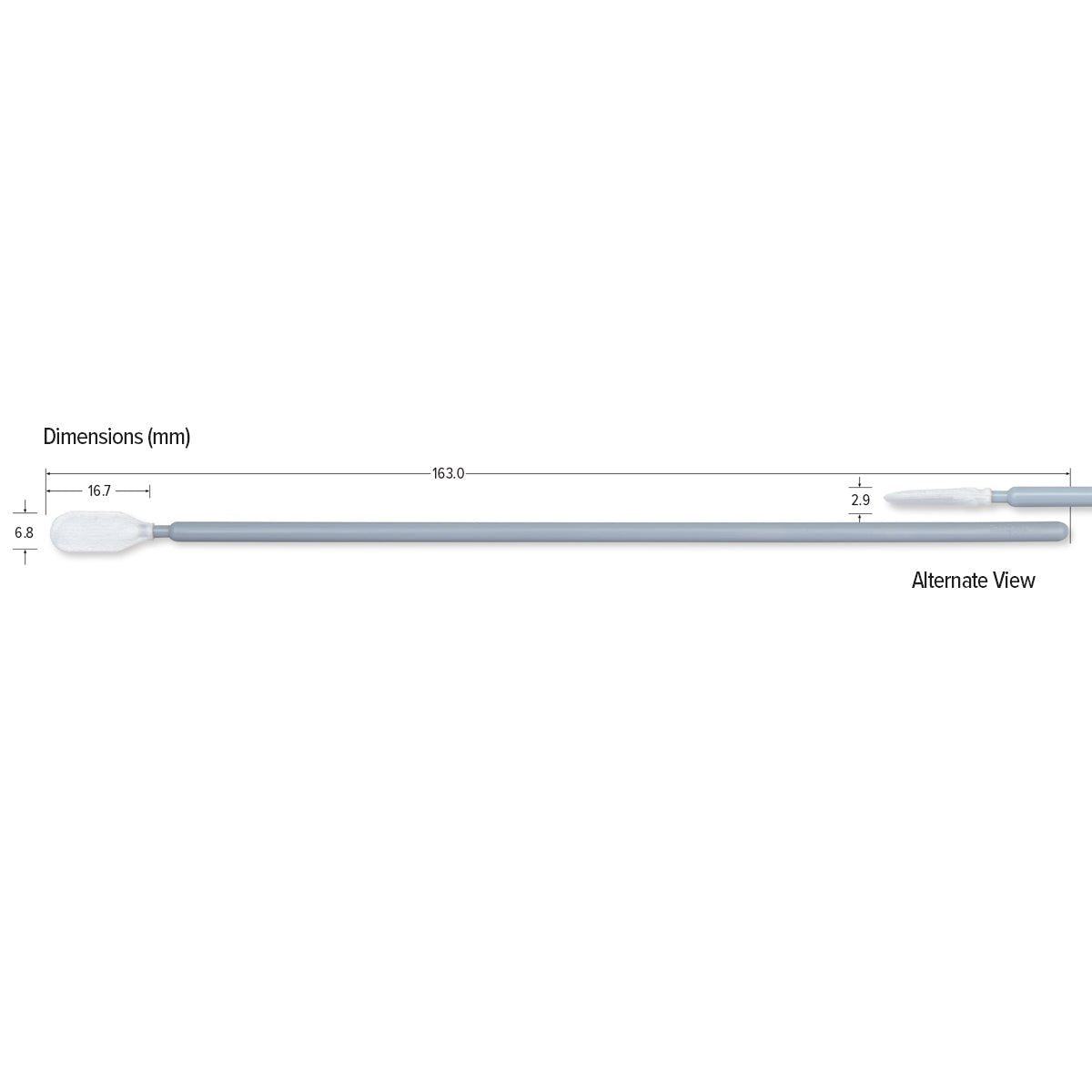

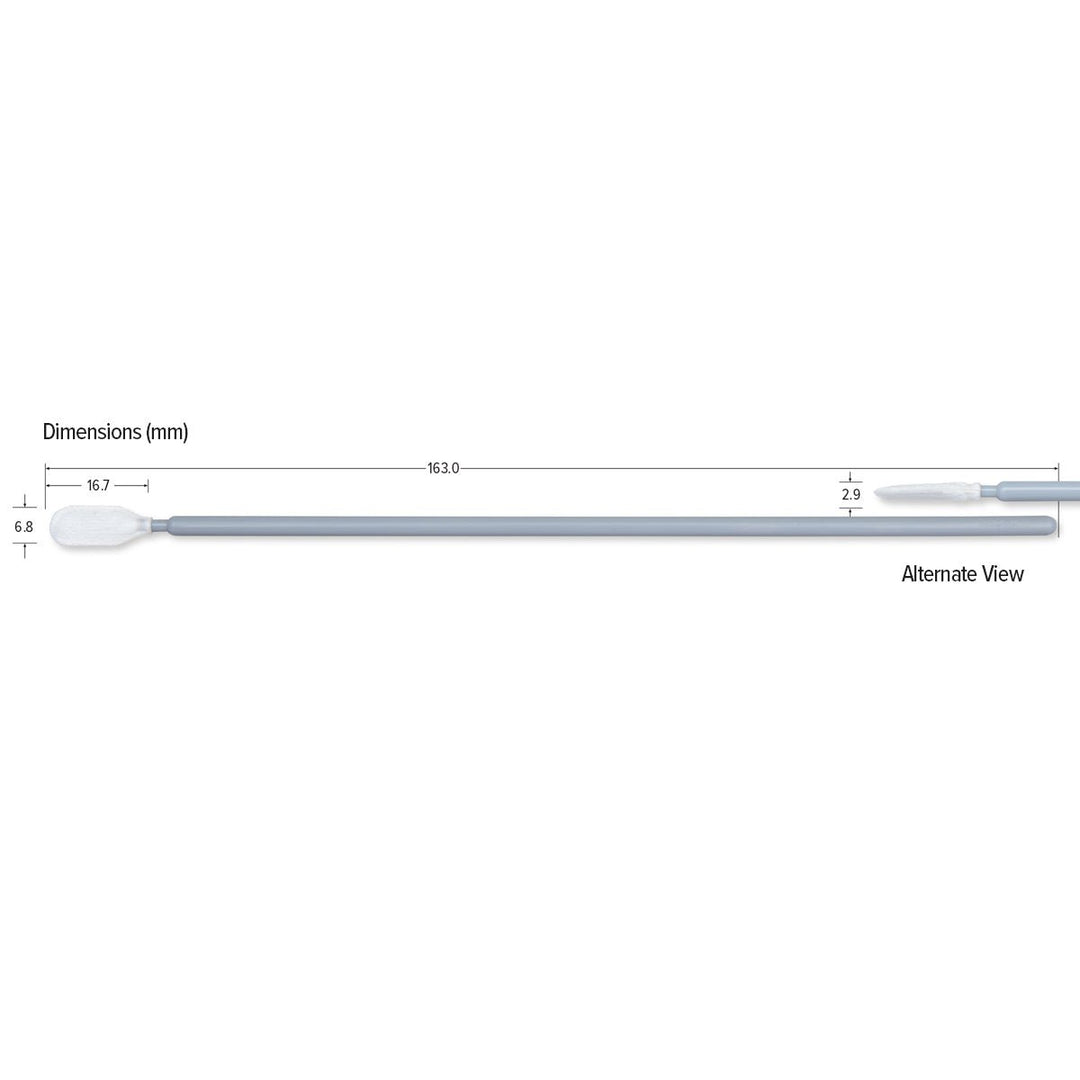

| Overall Length | 6.417 in (16.30 cm) |
| ESD Properties | Inherently dissipative — permanent, not a coating |
| Sterility | Non-sterile |
| Packaging | 100/inner bag, 1 inner bag/outer bag, 10 outer bags/case, 1,000 swabs/case |
| Cleanroom Rating | ISO Class 5–8 (Class 100–100,000) |
| Extractables | Ultra-low NVR, ultra-low ions and particles; no adhesives, silicone, or amides |
| Traceability | Lot and bar-coded |
| Shelf Life | 5 years from date of manufacture |
| Storage | Ambient conditions, 59–86°F (15–30°C) |
| Application | ESD-sensitive optical surface cleaning, lens and sensor wiping, fingerprint and oil removal, deep-reach precision component cleaning in ESD-controlled environments |
| Industries | Semiconductor/microelectronics, aerospace/defense, medical device/optics, pharmaceutical/biologics, printing/graphics |
Frequently Asked Questions
What is the difference between the TKS511E (ESD) and the TKS584MW (standard) microfiber woven long-handle swab?
Both use the same double-layer woven microfiber tip and 6.417" long handle with identical split-filament cleaning performance and ultra-low NVR specs. The TKS511E adds a Stat-Rite® inherently dissipative ESD handle that safely dissipates static charge during swabbing. Use the TKS511E in any environment where ESD-sensitive components are present — semiconductor wafer handling, PCB assembly, disk drive manufacturing. Use the TKS584MW where ESD protection is not required.
When should I use the TKS511E (ESD microfiber woven) vs. the TKS510E (ESD polyester) long-handle swab?
Both are ESD-safe long-handle swabs with Stat-Rite® handles at 6.417". The TKS511E’s woven microfiber tip uses split filaments that physically lift and trap oils and fingerprints through mechanical cleaning action — preferred for optical surfaces and fingerprint removal. The TKS510E’s polyester tip provides ultra-low NVR and superior chemical resistance with aggressive solvents. Choose microfiber woven for optical cleaning and fingerprint removal; choose polyester for applications requiring maximum chemical resistance or the lowest possible NVR.
When should I use the TKS511E (long handle, 6.417") vs. the TKS508E (short, 3.583")?
Both are ESD-safe woven microfiber swabs. The TKS511E’s 6.417" long handle provides maximum reach into deep equipment cavities, process chambers, and tool interiors where the TKS508E’s 3.583" handle cannot reach. The TKS511E also has a medium head tip for greater surface coverage. Choose the TKS511E for deep-reach applications; the TKS508E for close-proximity precision work in ESD environments.
Is Stat-Rite® ESD protection permanent even with repeated IPA exposure?
Yes — Stat-Rite® uses inherently dissipative polymers built into the handle material itself, not applied as a surface coating. ESD dissipative performance is permanent and does not degrade with use, cleaning, or repeated exposure to IPA and other solvents used in cleanroom environments.
