Teknipure TKS503E Pointed Spiral Foam Dual End ESD Swab, 2.626" (6.67 cm), 2500 swabs/case
Teknipure TKS503E Pointed Spiral Foam Dual End ESD Cleanroom Swab, 2.626 in (6.67 cm), Case of 2,500

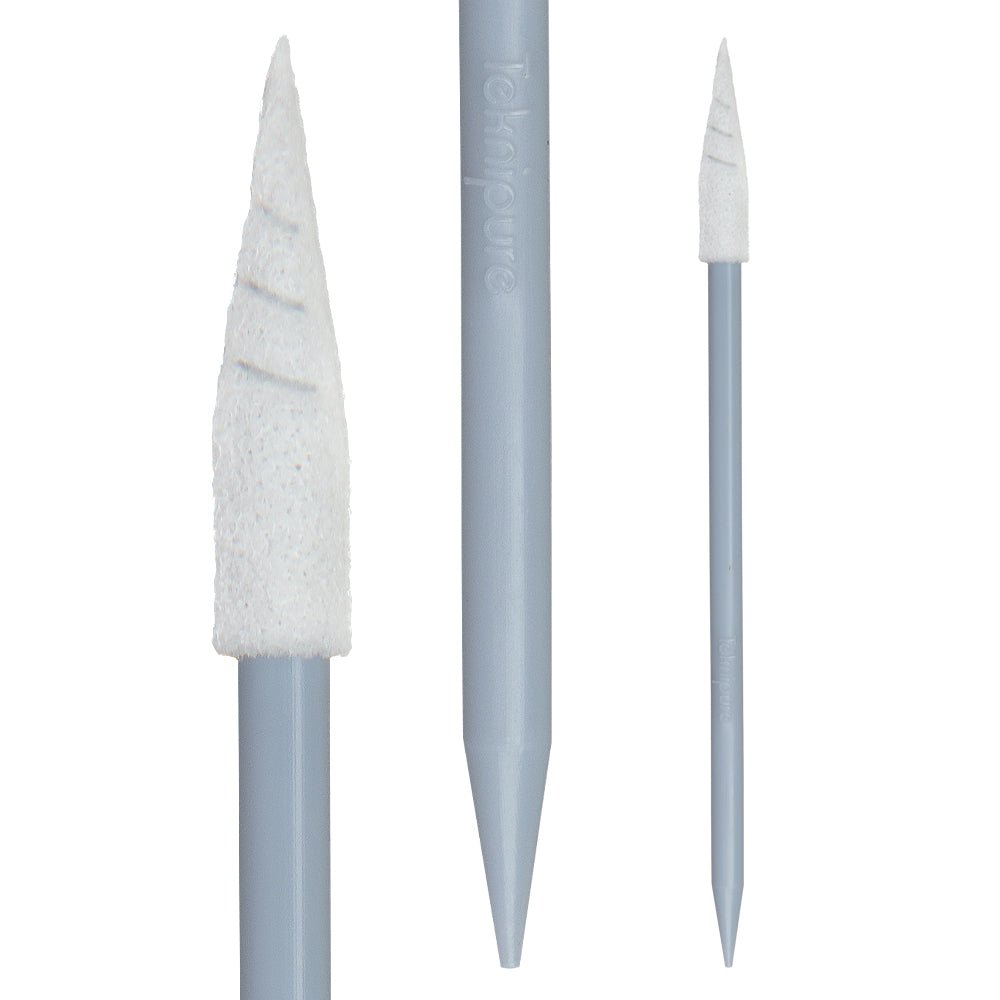

The Teknipure TKS503E is the ESD-safe version of the pointed spiral foam dual-end cleanroom swab, with a 2.626" (6.67 cm) overall length, constructed from 100 ppi polyurethane foam tips with a Stat-Rite® electrostatic dissipative (ESD) handle, rated for ISO Class 5–8 environments. The Stat-Rite® handle is made from a proprietary blend of inherently dissipative polymers based on polypropylene — ESD properties are built into the material itself, not applied as a coating, so dissipative performance is permanent and does not degrade with use or cleaning. The pointed spiral tip geometry provides access to tight spaces, connector cavities, pin fields, and intersecting surfaces in ESD-sensitive environments. Both ends are tipped for two clean surfaces per swab. Foam tips are thermally bonded — no adhesives, silicone, or amides. Laundered to minimize NVR and ions. Lot and bar-coded for traceability. 5-year shelf life stored at ambient conditions (59–86°F / 15–30°C).
Sold in cases of 2,500 swabs (100/inner bag, 5 inner bags/outer bag, 5 outer bags/case).
Specifications
| SKU | TKS503E |
|---|---|
| Brand | Teknipure |
| Product Line | TekniSwab® ESD Foam |
| Tip Material | 100 ppi polyurethane foam, thermally bonded |

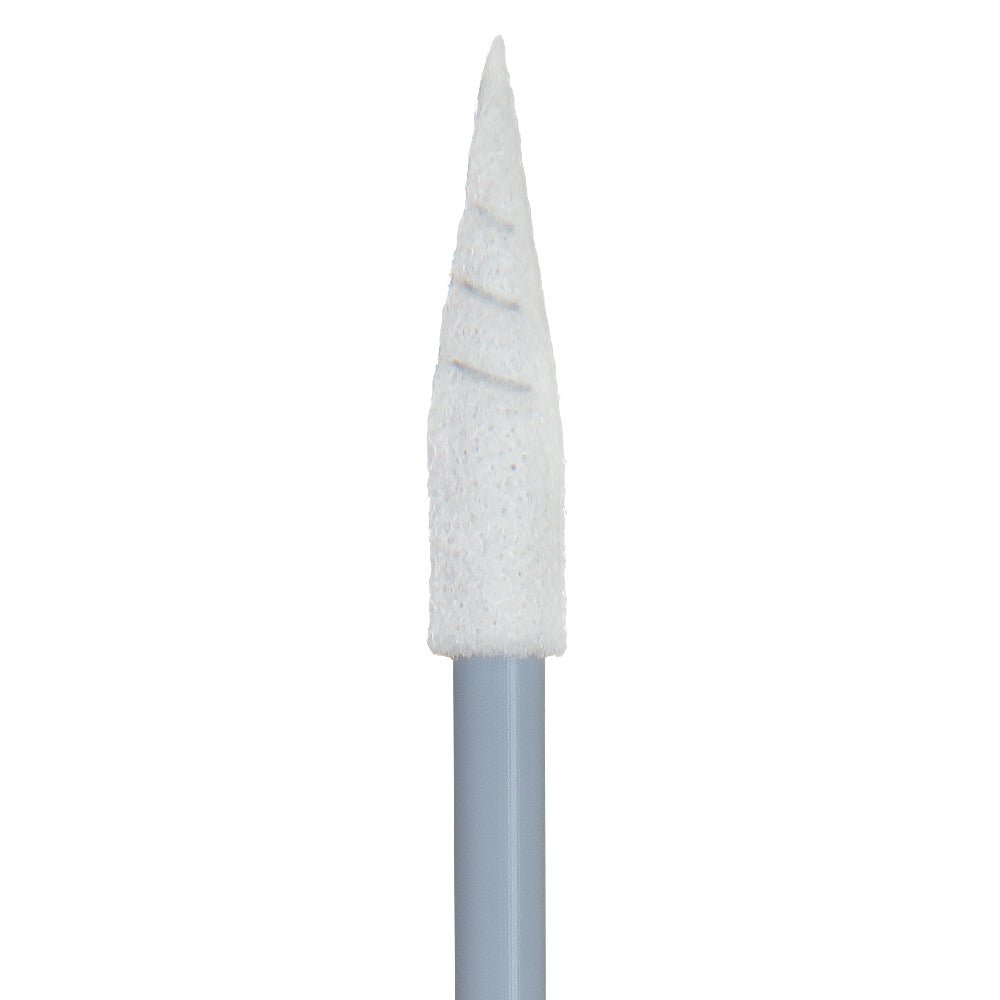

| Tip Geometry | Pointed spiral, dual end |

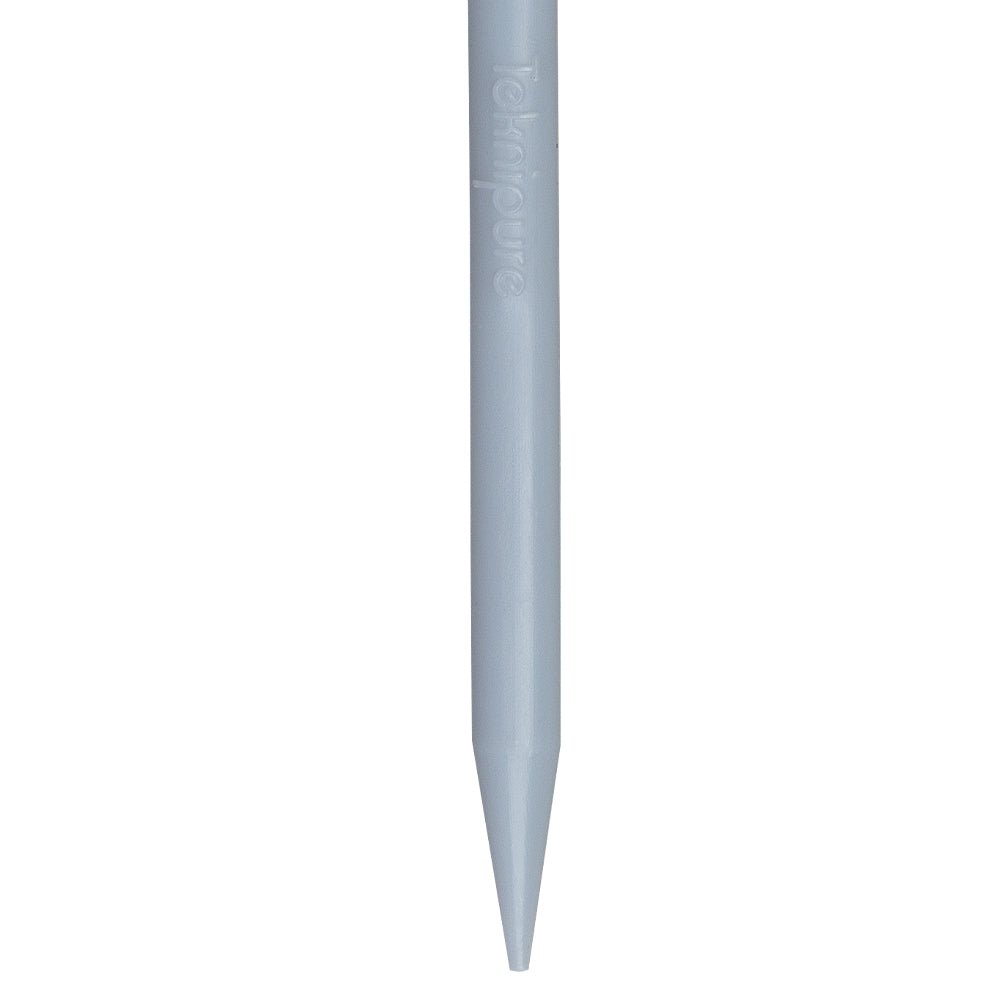

| Handle Material | Stat-Rite® inherently dissipative polypropylene (ESD) |

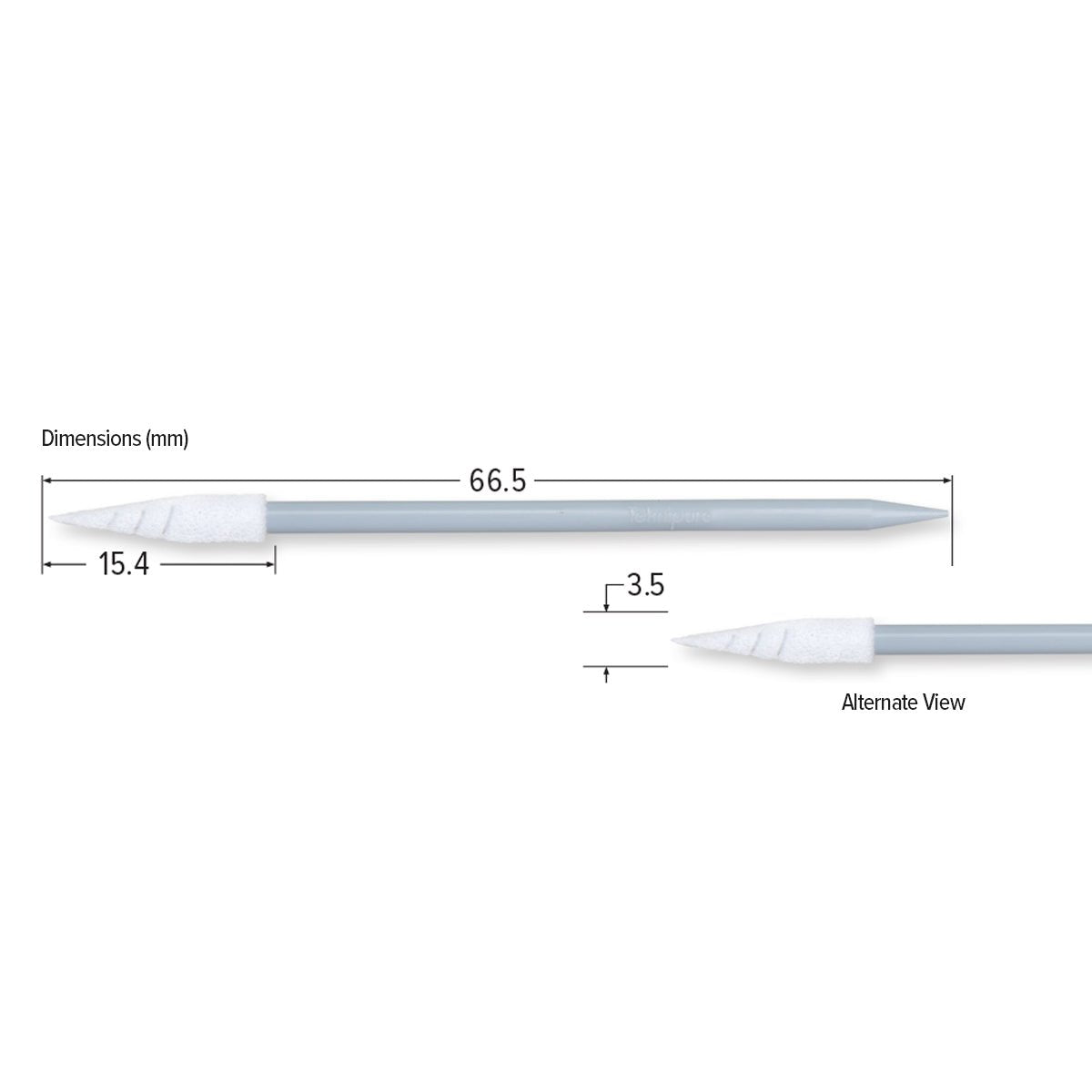

| Overall Length | 2.626 in (6.67 cm) |
| ESD Properties | Inherently dissipative — permanent, not a coating |
| Sterility | Non-sterile |
| Packaging | 100/inner bag, 5 inner bags/outer bag, 5 outer bags/case, 2,500 swabs/case |
| Cleanroom Rating | ISO Class 5–8 (Class 100–100,000) |
| Extractables | Low NVR, low ions; no adhesives, silicone, or amides |
| Traceability | Lot and bar-coded |
| Shelf Life | 5 years from date of manufacture |
| Storage | Ambient conditions, 59–86°F (15–30°C) |
| Application | ESD-sensitive precision cleaning, connector cavities, pin fields, PCB cleaning, tight-space cleaning in ESD-controlled environments |
| Industries | Semiconductor/microelectronics, aerospace/defense, medical device/optics, pharmaceutical/biologics, printing/graphics |
Frequently Asked Questions
What is Stat-Rite® and why is it better than a coated ESD handle?
Stat-Rite® is Teknipure’s proprietary blend of inherently dissipative polymers based on polypropylene. “Inherently dissipative” means the ESD properties are built into the polymer matrix itself — not applied as a surface coating or treatment. Coated ESD handles can lose their dissipative properties over time as the coating wears off or is degraded by solvents used during cleaning. Stat-Rite® handles maintain permanent, consistent electrostatic dissipative performance regardless of use or exposure to cleaning solvents.
When do I need an ESD swab vs. a standard foam swab?
Use an ESD swab (TKS503E) when cleaning in environments where electrostatic discharge could damage components — semiconductor wafer handling, PCB assembly, disk drive manufacturing, and any application where ESD-sensitive devices are present. The Stat-Rite® handle safely dissipates static charge that would otherwise build up during swabbing and discharge into sensitive components. Use the standard foam swab (TKS520F) in cleanroom environments where ESD is not a concern.
Is the TKS503E the same tip geometry as the TKS520F?
Yes — the TKS503E and TKS520F use the same pointed spiral foam dual-end tip geometry and 100 ppi polyurethane foam construction. The only difference is the handle: TKS520F uses a standard polypropylene handle; TKS503E uses a Stat-Rite® ESD-dissipative handle. Choose based on whether your environment requires ESD protection.
Is a rectangular head ESD foam swab available for flat surface cleaning?
Yes — the TKS509E is the ESD-safe medium head foam swab with a long handle (6.417") for flat surface cleaning and solvent application in ESD-sensitive environments.
