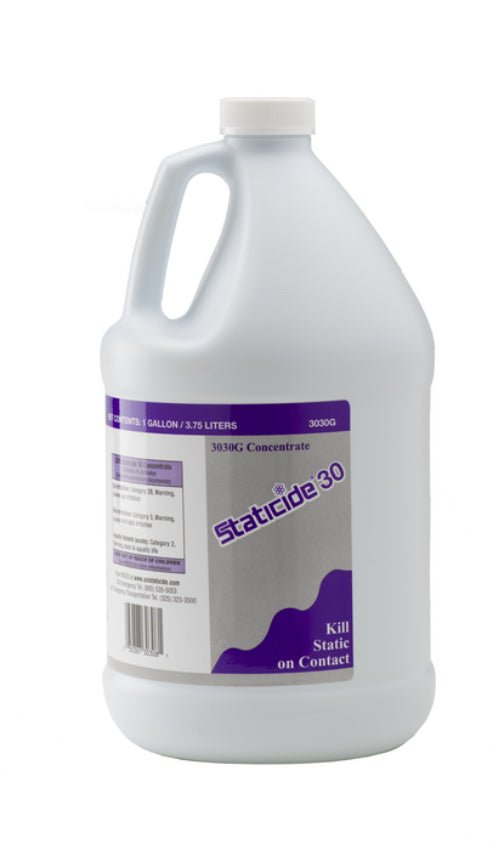

ACL Staticide 3030 Concentrate — Non-Flammable, Chloride-Free ESD Treatment

ACL Staticide 3030 Concentrate delivers the same proven static protection as the Staticide 3000 Original Concentrate — but in a non-flammable, chloride-free, nitrate-free, and silicone-free formula with superior wetting properties. It is the preferred choice for shielding bag manufacturing and any environment where RoHS or REACH compliance is required.

Key Specifications

• Surface resistance: 10e8 to 10e10 ohms
• Static decay: Less than two seconds
• Effective below 15% relative humidity
• Non-flammable
• No chlorides, nitrates, or silicone
• RoHS Directive 2002/95/EC compliant — no substances on the REACH SvHC list
• Exceeds MIL-B-81705 and NFPA-56A electrostatic decay criteria
• Meets DOD-HDBK-263 requirements for topical anti-stats
• Classified as low-charging per ANSI/ESD S541-2019 when tested per ESD ADV11.21

Dilution Instructions

Always add concentrate to solvent — never add solvent to concentrate — to avoid foaming. Pure water or isopropyl alcohol (IPA) may be used as the solvent.

• Non-porous surfaces (machines, fixtures, paneling, tile, trays, totes, films, plastics, paper, non-woven fabrics): 99 parts solvent to 1 part concentrate
• Porous surfaces (carpets, work surfaces, conveyor belts, clothing, textiles): 29 parts solvent to 1 part concentrate
• Shielding bag manufacturing: 99 parts IPA to 1 part concentrate

Application

Once diluted, Staticide 3030 can be applied by wipe, spray, roll-coat, or dip to a clean, dry surface. Allow to dry completely before use. Verify surface resistivity with a meter after application — target range is 10e8 to 10e10 ohms.

Ideal Applications

• ESD floor and surface treatment in electronics manufacturing and cleanrooms
• Shielding bag manufacturing (chloride/nitrate-free requirement)
• Preventing damage to sensitive electronic components during manufacture, testing, packaging, and shipping
• Eliminating dust attraction on production surfaces
• Preventing ignition of combustible vapors, dust, and solvents
• Static control in quality printing, heat sealing, silk screening, and lamination
