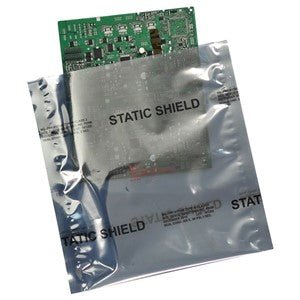

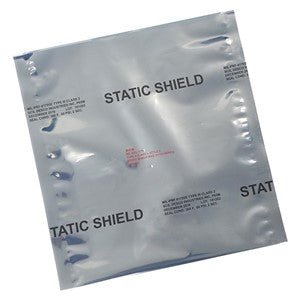

SCS 81748, Static Shield Bag, 81705 Series Metal-In, 4X8, 100 Pack

SCS Static Shield Bag 81705 Series are manufactured from four layers - static dissipative coating, polyester, metal and polyethylene laminate. The polyester dielectric in concert with the metal layer provides discharge shielding. The exterior is static dissipative and allows electrostatic charges to be removed when grounded. Film is qualified to MIL-PRF-81705E Type III, Class 2.

• Qualified to MIL-PRF-81705E Type III, Class 2; listed on the QPL under the Defense Standardization Program here
• Film printing per MIL-PRF-81705E Section 3.6 is a buried layer that will not rub-off or become removed with chemicals like IPA
• Standard stock bags are converted per MIL-DTL-117H
• Metal-In film laminate 0.0028" thick (2.8 mil)
• Dissipative Inner Surface Rs ≥ 1 x 10⁵ to < 1 x 10¹² ohms/sq per MIL-PRF-81705E Method 4.6.8 requirements
• Dissipative Outer Surfaces Rs < 1 x 10¹² ohms/sq per MIL-PRF-81705E Method 4.6.8 requirements
• <10 nJ discharge shielding energy limit test per MIL-PRF-81705E Method 4.6.9
• Lead-free RoHS 2, REACH and Conflict Minerals Compliant
• Made in the United States of America
  This item is made and stocked in Sanford, NC.
• 81705 Bags - Static Shield Bag, 81705 Series
