SCS 1002224, Static Shield Bag, 1000 Series Metal-In, 22 x 24, 100 Pack
SCS 1002224 — Static Shield Bag, 1000 Series Metal-In, 22 x 24 in, 100 Pack

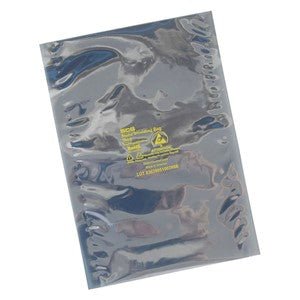

The SCS 1002224 (SKU: 1002224) is a transparent metal-in static shielding bag from the SCS 1000 Series, measuring 22 x 24 inches, sold in packs of 100. Constructed from a polyester/metal/polyethylene laminate at 2.8 mil thickness, it provides a static-safe environment for ESD-sensitive electronic devices inside and outside an ESD Protected Area (EPA). Bags are heat sealable, printed with an ESD protective symbol and lot code for traceability, and meet ANSI/ESD S20.20 and ANSI/ESD S541 requirements. Made in the United States of America.
Key Specifications
- Part Number / SKU: 1002224
- Series: 1000 Series (Open Top)
- Style: Metal-In
- Size: 22 x 24 in
- Pack Quantity: 100 bags
- Film Construction: Polyester / Metal / Polyethylene laminate
- Thickness: 0.0028 in (2.8 mil)
- Discharge Shielding: <10 nJ per ANSI/ESD STM11.31
- Surface Resistance (Inner & Outer): 1 x 10⁴ to <1 x 10¹¹ ohms per ANSI/ESD STM11.11
- Static Control Bag Level: ANSI/ESD S11.4 Level 3
- Closure: Open top, heat sealable
- Printing: ESD protective symbol + lot code for traceability
- Standards: ANSI/ESD S20.20, ANSI/ESD S541
- Compliance: RoHS 2, REACH, Conflict Minerals compliant
- Country of Origin: United States of America (Sanford, NC)
- Brand: SCS (Static Control Systems)
Applications

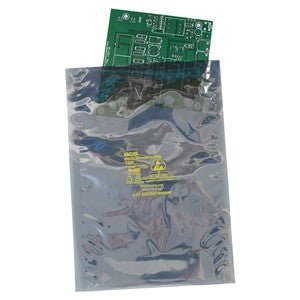

- ESD-safe packaging of PCBs, ICs, and static-sensitive assemblies for storage and shipment
- Use inside and outside ESD Protected Areas (EPA) per ANSI/ESD S541
- Incoming and outgoing ESD packaging in electronics manufacturing
- Large-format component and assembly packaging requiring 22 x 24 in bags
- ANSI/ESD S20.20 ESD control program compliant packaging
Resources
Frequently Asked Questions
What is a metal-in static shielding bag and how does it work?
A metal-in static shielding bag uses a multilayer laminate construction — polyester outer layer, conductive metal layer, and polyethylene inner layer — to create a Faraday cage effect around the contents. The metal layer intercepts and dissipates electrostatic fields and ESD events before they can reach the enclosed static-sensitive devices. The dissipative inner and outer surfaces allow charges to be safely removed when the bag is grounded.
Can the SCS 1002224 be used outside an ESD Protected Area?
Yes. The SCS 1000 Series metal-in bags meet ANSI/ESD S541 requirements for ESD shielding packaging both inside and outside an EPA. This makes them suitable for shipping and receiving of ESD-sensitive components where the full ESD control environment of an EPA is not available.
How is the SCS 1002224 sealed?
The 1002224 is an open-top bag that is heat sealable. Use a compatible heat sealer to create a hermetic closure after loading components. For applications requiring a resealable closure, SCS also offers the 3000 Series ZipTop static shielding bags in compatible sizes.
What compliance standards does the SCS 1002224 meet?
The SCS 1002224 meets ANSI/ESD S20.20 ESD control program requirements, ANSI/ESD S541 packaging requirements, and ANSI/ESD S11.4 Level 3 static control bag classification. It is also RoHS 2, REACH, and Conflict Minerals compliant, making it suitable for use in regulated electronics manufacturing supply chains.
Is the SCS 1002224 available in other sizes?
Yes. SCS 1000 Series metal-in static shielding bags are available in a wide range of sizes. Contact MTE Solutions for the full size range and to select the correct bag size for your specific components or assemblies.
