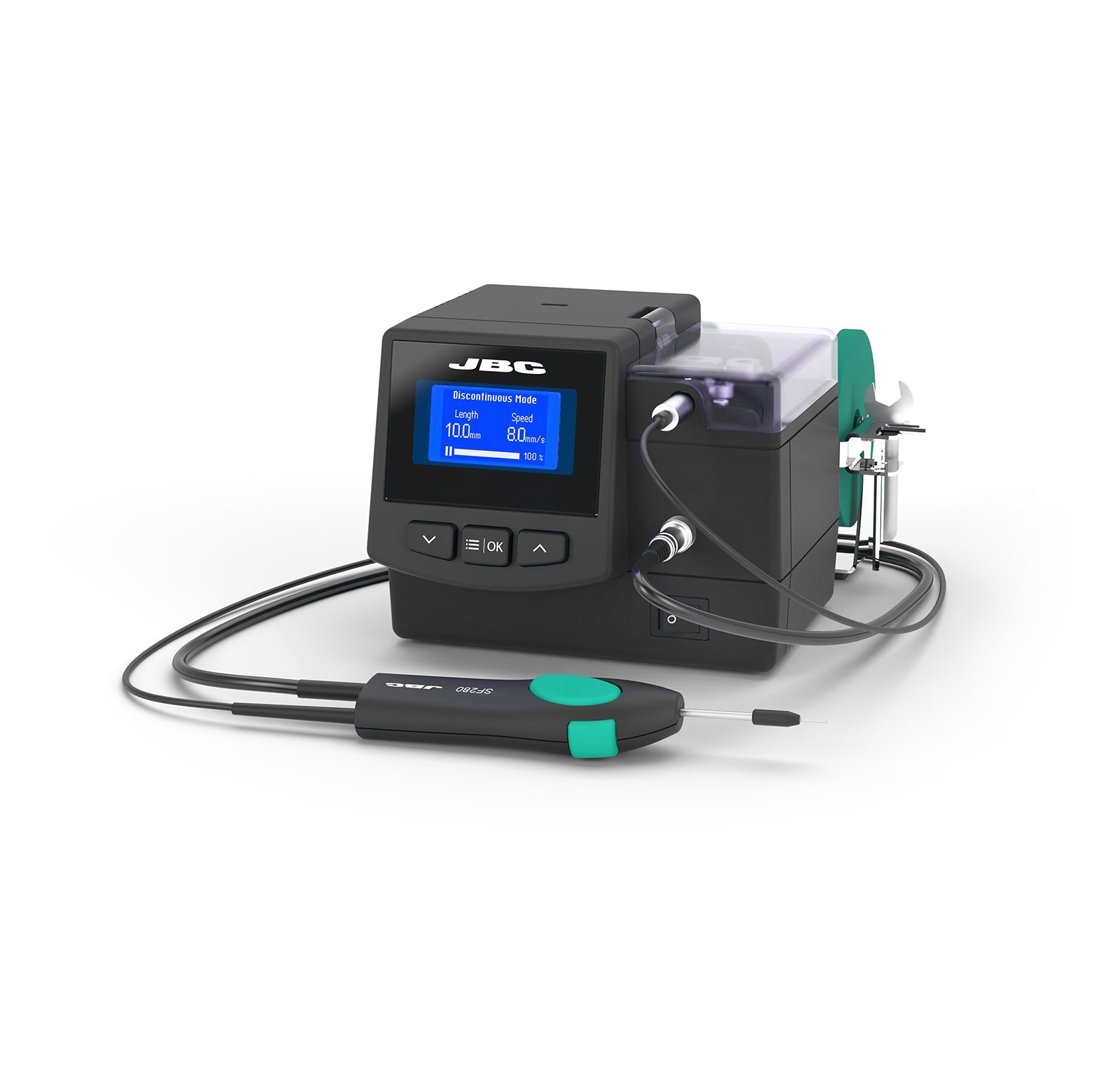

JBC Tools SF-210VB, Solder Feeder 230 V & Ø 1 mm

JBC Tools SKU: SF-210VB
JBC Tools SF-210VB, Solder Feeder 230 V & Ø 1 mm
JBC Tools SF-210VB, Solder Feeder 230 V & Ø 1 mm

JBC Tools SF-210VB, Solder Feeder 230 V & Ø 1 mm

JBC Tools SKU: SF-210VB
Regular price $1,360.00
/
Shipping calculated at checkout.

JBC Tools SF-210VB, Solder Feeder 230 V & Ø 1 mm

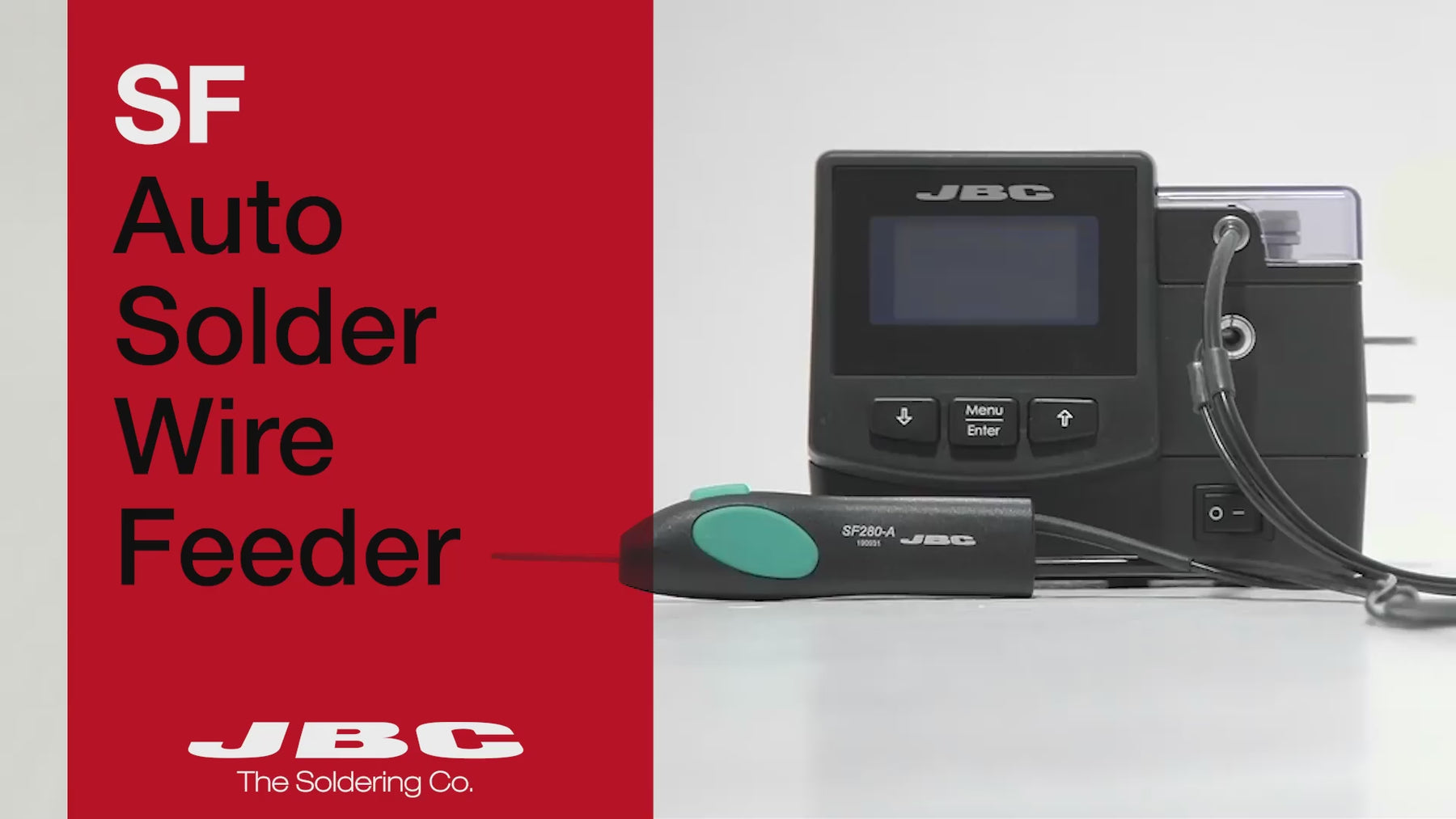

This Solder-Wire Feeder allows you to feed solder wire automatically from any position.

These Station is prepare to feed solder wire of 1mm, but it can feeds wires from Ø 0.4mm up to Ø 1.8mm. Features Solder Wire Perforation, allowing better flux core flow and outgassing and avoiding FOD. See Solder Wire Guide Kits

3 different working modes: Continuous Mode, Discontinuous Mode and Program Mode that allow configuration of dispensed wire speed and length.

1 SF Automatic Solder-Wire Feeder
with perforation
SPECIFICATIONS
Solder wire diameter: 1mm / 0.04 in with GSF10V
Max. wire length: 25 mm / 1 in
Max. forward speed: 120 mm/s / 4.72 in/s
Max. reverse speed: 120 mm/s / 4.72 in/s

COMPATIBLE SOLDER REEL

Weight: up to 1 kg / 2.2 Ib
Diameter: max. 80 mm / 3.15 in
Height: max. 75 mm / 2.95 in; stand axis: Ø 10 mm / Ø 0.4 in

CONNECTIVITY

USB-B (front): Software PC / Firmware update
Robot connector

DIMENSIONS AND WEIGHT
Control Unit
140 x 150 x 120 mm / 2.32 kg.

5.51 x 5.91 x 4.72 in / 5.11 lb.
Package
368 x 368 x 195 mm / 3.23 kg.

14.49 x 14.49 x 7.68 in / 7.12 lb.
