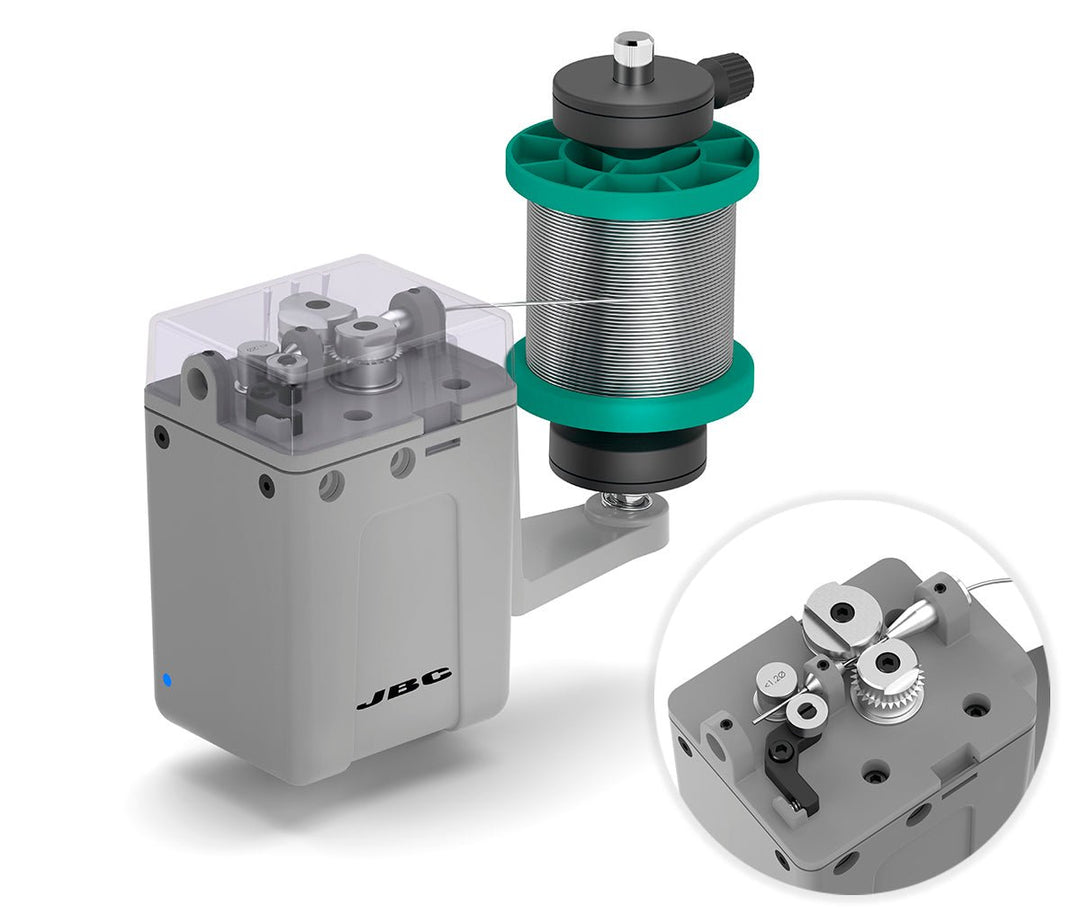

JBC Tools SFR-B, Solder Feeder for Robot

SFR Solder Feeder is designed for automatic solder wire feeding on automatic soldering processes.

Several solder wire Guide Kits are available with or w/o wire perforation. Solder perforation allows flux flow and outgassing to minimize solder splashing while soldering.

The guide should be chosen according to the solder wire diameter used on the application.

Additionally, it features a wire detector sensor and in case of any transport error the system informs with "blocked up" or "consumed".

In order to establish the communication between SFR Solder Feeder and the Robot (PC or PLC) JBC provides RS232 Communication Protocol. Download it here.

Control parameters such as wire length and dispensing speed are customizable.

GSFR Guide Kits are not included.

SELECTABLE PARAMETERS

Solder wire length: 0.5 to 250 mm / 0.02 to 9.84 in
Solder wire speed: 0.5 to 120 mm/s / 0.02 to 4.72 in/s
Operation modes: Continuous / Discontinuous
SOLDER COMPATIBILITY

Wire diameter: 0.5 to 1.5 mm / 0.020 to 0.062 in
See available GSFR guides sets
COMPATIBLE SOLDER REEL

Max. Spool weight: 1 Kg / 2.2 lb

Max. Spool diam.: 80 mm / 3.2 in

Max. Spool height: 80 mm / 3.2 in
Axis hole: >10 mm / >0.39 in
SPECIAL FEATURES

Solder Wire Perforation: GSFR guide sets available
Solder wire detection: Feedback when solder reel finished or solder guide clogged
ESD/EOS
ESD safe

POWER SUPPLY

Voltage (DC): 24 V / 1.5 A
DIMENSIONS AND WEIGHT
Package
221 x 136 x 126 mm / 1.20 kg.

8.70 x 5.35 x 4.96 in / 2.65 lb.
