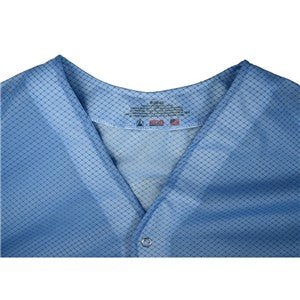

SCS 770014, Smock, Jacket, Blue, Knitted Cuffs, 3 Pockets, No Collar, XL

SCS 770014 — ESD Smock, Jacket Style, Blue, Knitted Cuffs, 3 Pockets, No Collar, XL

The SCS 770014 (SKU: 770014) is an ESD-safe jacket-style smock in size XL, featuring knitted cuffs, 3 pockets, and a no-collar design. Constructed from ESD-protective fabric, it provides reliable static control for personnel working in electronics manufacturing, PCB assembly, semiconductor handling, and other ESD-sensitive environments. The jacket style and knitted cuffs help contain static-generating clothing and maintain a controlled ESD environment at the workstation.

Key Specifications

• Part Number / SKU: 770014
• Style: Jacket smock
• Color: Blue
• Size: XL
• Cuffs: Knitted
• Pockets: 3
• Collar: None
• ESD Protection: Yes — ESD-safe fabric construction
• Brand: SCS (Static Control Systems)

Applications

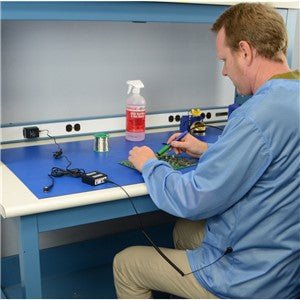

• ESD-safe personnel garment for electronics manufacturing and PCB assembly
• Semiconductor and component handling in ESD-protected areas
• Workstation-level static control in compliance with ANSI/ESD S20.20
• Cleanroom and controlled environment garment programs
• Replacement or supplemental ESD smock for existing garment programs

Frequently Asked Questions

What ESD standards does the SCS 770014 smock meet?
SCS ESD smocks are designed to support ANSI/ESD S20.20 ESD control program requirements for personnel garments. Consult the SCS 770014 datasheet or contact MTE Solutions for specific surface resistance and charge decay values.

Why are knitted cuffs important on an ESD smock?
Knitted cuffs help seal the sleeve opening around the wrist, reducing the risk of static-generating clothing underneath the smock being exposed at the wrist area. This is especially important when wearing an ESD wrist strap, as the cuff helps maintain consistent contact and reduces triboelectric charging from sleeve movement.

Does the SCS 770014 need to be laundered in a special way?
Yes. ESD garments should be laundered according to the manufacturer's guidelines to maintain their ESD-protective properties. Avoid fabric softeners and dryer sheets, which can coat ESD fabric and degrade its static-dissipative properties. Consult SCS garment care instructions for recommended washing procedures.

Is the SCS 770014 available in other sizes?
SCS ESD smocks are available in a range of sizes. Contact MTE Solutions for availability of other sizes in the SCS 770014 or equivalent SCS ESD smock styles.

Can the SCS 770014 be used as the sole ESD protection for personnel?
No. An ESD smock is one element of a complete ESD control program. It should be used in conjunction with ESD wrist straps or heel grounders, ESD-safe footwear, and a properly grounded workstation to provide effective personnel grounding per ANSI/ESD S20.20 requirements.
