JBC Tools PHSE-1KB, Small Preheater Set 120V

Reduce the risk of thermal shock while reworking

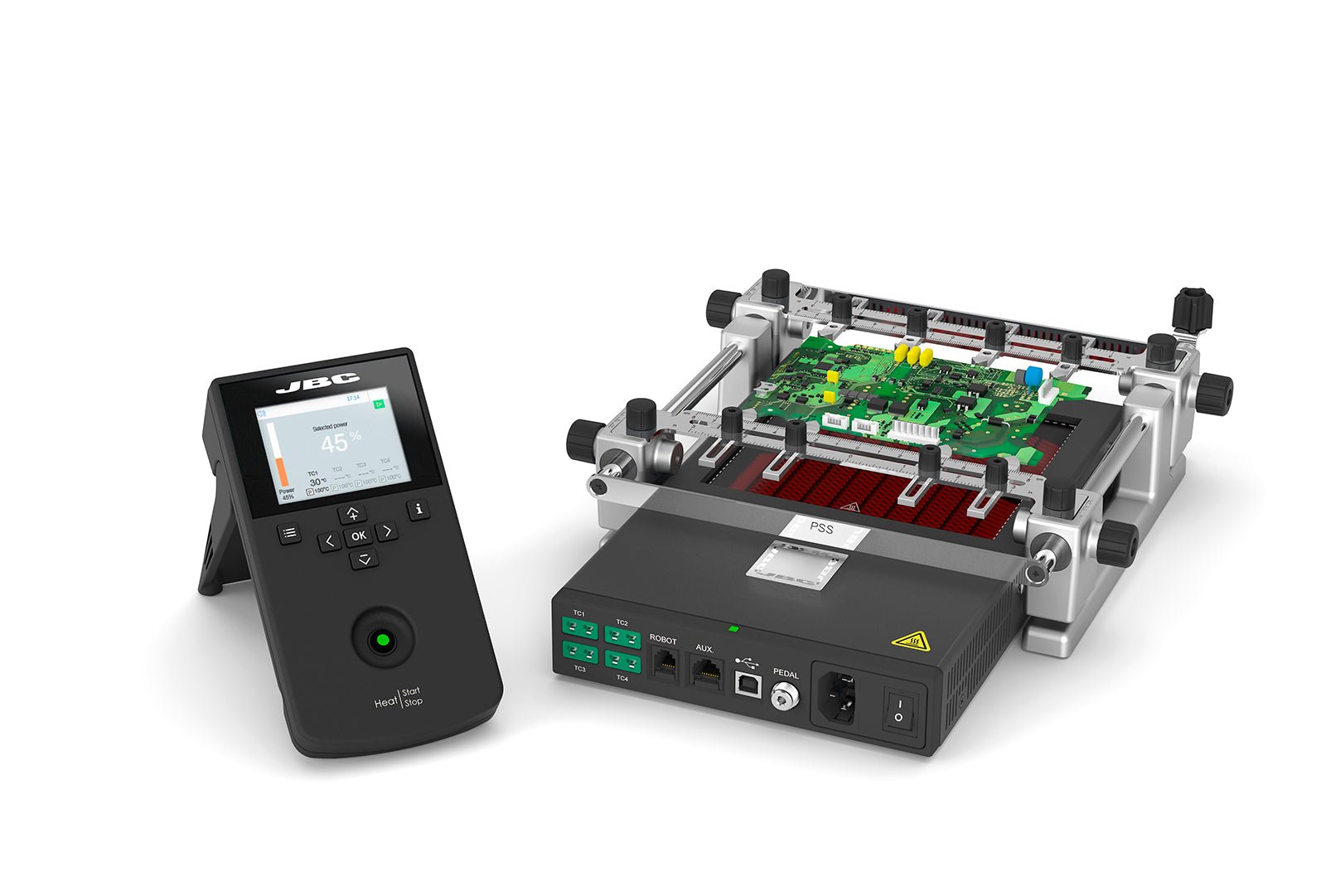

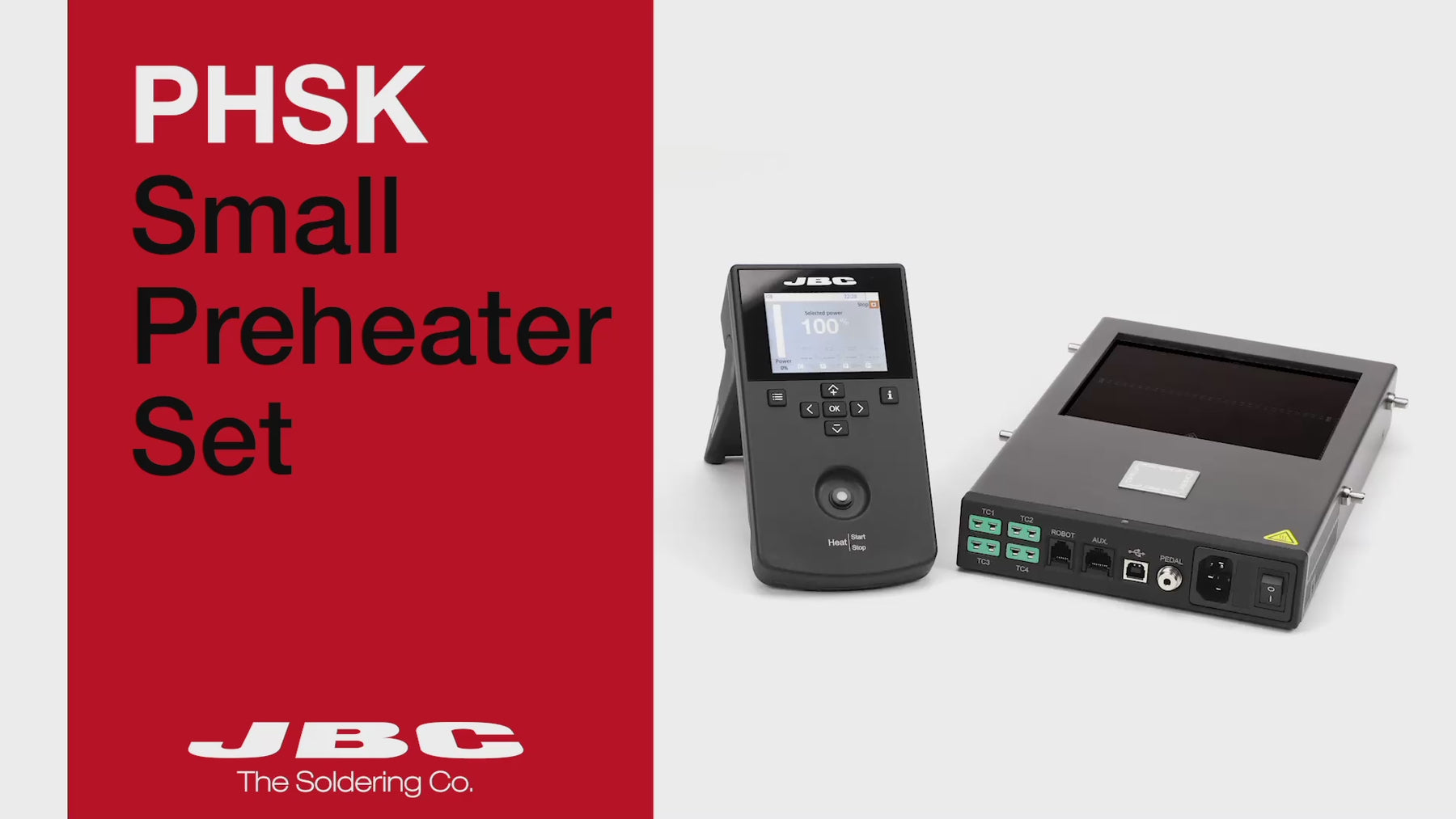

PHSK Small Preheater Set is the best solution to rework small / medium PCBAs, such as the once commonly used in electronic industries. It features a heating area of 130 x 135 mm / 5.12 x 5.31 in and four TC connections.

Matchless reliability in temperature accuracy and control of the PCBA so that no component is damaged.

The Preheater can be operated easily and conveniently via the intuitive menu navigation.

It features three work modes:

Power Mode allows working at a fixed power level with the option of using protection thermocouple.

Temperature Mode keeps the PCBA at a selected temperature, using the regulation thermocouple and, optionally, protection thermocouples.

Profile Mode allows control of the heating rate of the PCBA by the use of a control and protection thermocouple, without exceeding the recommended limit levels in each application. It features 22 customizable profiles.

Up to four thermocouples can be connected in any of the three work modes.

PSS Small PCB Support is perfectly adapted to any type of PCBs by means of its many adjustable components and its 3 adjustable clearance positions 28, 50 or 70 mm / 1.1, 2 or 2.8 in.

By means of JBC Software, the Preheater can be synchronized with other JBC Hot Air, Soldering Stations as well as Fume Extractor equipment in order for them to work jointly and to perform your rework process optimally.

1 Heater unit
1 Console
Operating temp. range: 10 - 40 ºC / 50 - 104 ºF
Temperature range: 50 to 250ºC / 120 to 482ºF
Heating area:
65 x 135 mm / 2.6 x 5.3 in - 1 zone
130 x 135 mm / 5.1 x 5.3 in - 2 zones
Temperature measurement: Thermocouple type K
Maximum power: 600W
JBC-Set temperat. profiles: 3 profiles ( 2, 3 or 4 steps)
User temperature profiles: 22 (up to 6 steps for each)
Maximum work time: 600 min. or indefinite
Fuse: 8 A T (100V & 120V), 4 A T (230V)
ESD/EOS
ESD safe

DIMENSIONS AND WEIGHT
PreHeater
195 x 288 x 42 mm / 4.78 kg.

7.68 x 11.34 x 1.65 in / 10.54 lb.
Package
368 x 368 x 195 mm / 5.82 kg.

14.49 x 14.49 x 7.68 in / 12.84 lb.
