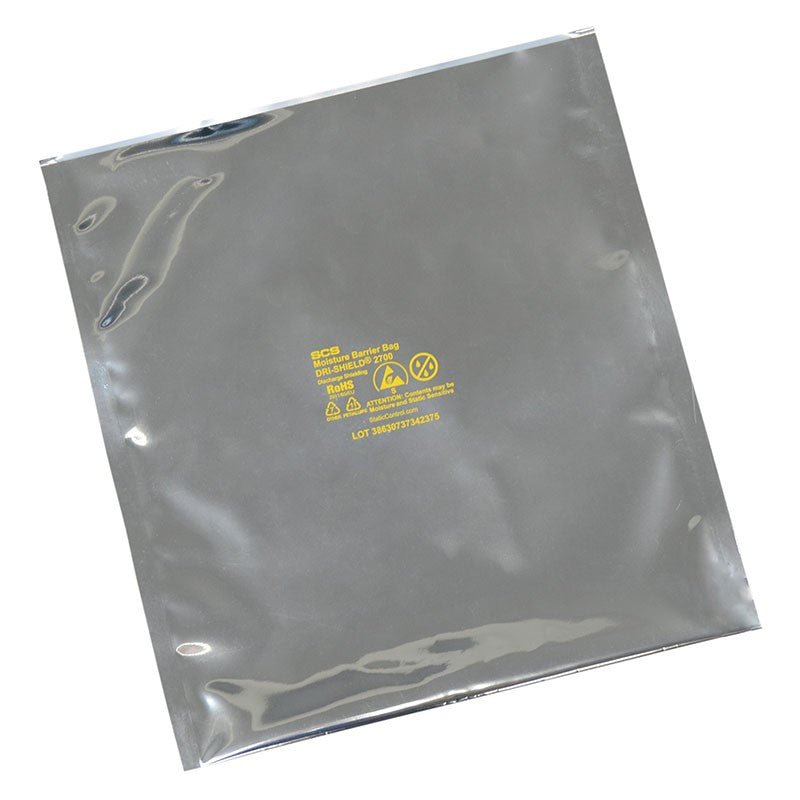

SCS D2710.518 Moisture Barrier Bag, Dri-Shield 2700, 10.5 x 18 in, 100Ea

SCS D2710.518 Moisture Barrier Bag, Dri-Shield 2700,10.5X18, 100Ea

• 0.007" (7 mil) Thick Bag constructed from multiple layers of aluminized polyester and polyethylene
  Designed for moisture and electrostatic discharge (ESD) sensitive items (such as SMT). Meets ANSI/ESD S20.20, ANSI/ESD S541, EIA 541, JESD625-A, and EIA 583.
• </= 0.03 Grams Moisture Vapor Transmission Rate (MVTR)
  Designed for dry packing of moisture sensitive devices and to protect contents from damage due to ESD events or EMI.
• <10 nJ Energy Penetration Tested per ANSI/ESD STM11.31
  Protects contents from ESD charges and discharges.
• >30lb Puncture Strength Average
  Provides superior physical protection for contents.
• Dissipative Inner and Outer Surfaces Rs 1 x 10⁴ to < 1 x 10¹¹ ohms per ANSI/ESD STM11.11
  Allows bag to be grounded when placed on a grounded surface or handled by a grounded operator.
• Printed with ESD Protective Symbol and lot code information
  Meets the requirements of ANSI/ESD S541 for quality control purposes.
• Lead-free RoHS 2, REACH and Conflict Minerals Compliant

SCS 2700 Series Dri Shield Moisture Barrier Bags TDS

SCS Static Control Bag Storage Information
