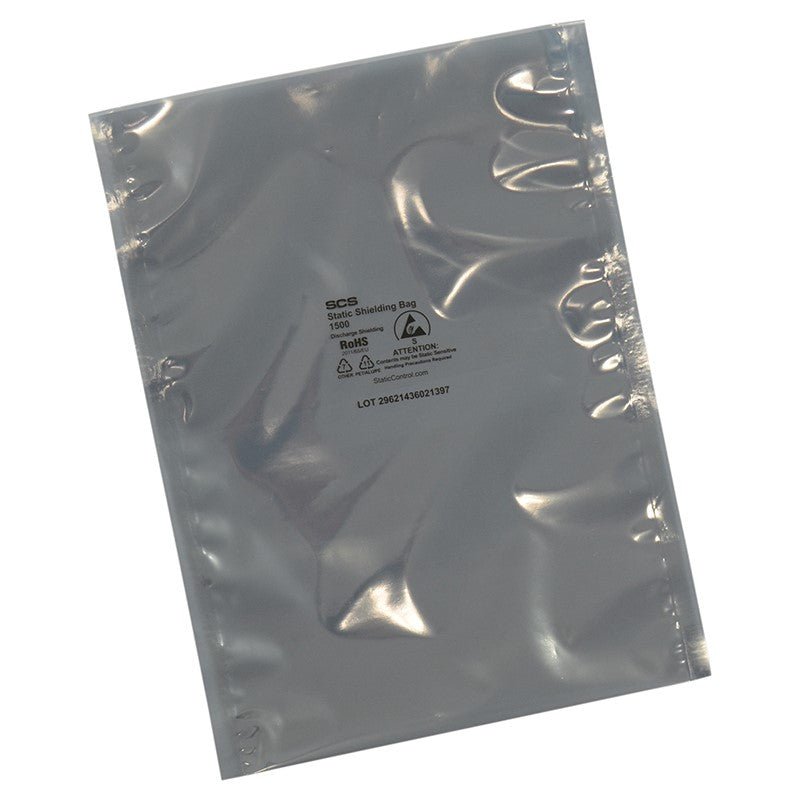

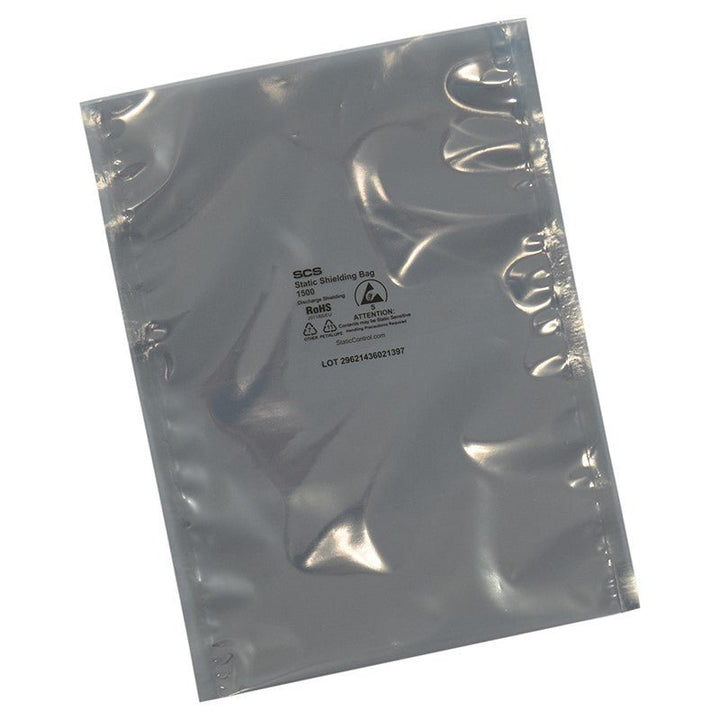

SCS 150820 Static Shield Bag, 1500 Series Metal-Out, 8 x 20 in, 100 Ea

SCS 150820 Static Shield Bag, 1500 Series Metal-Out, 8X20, 100 Ea

• Metal-Out Bags Required by Some Leading Hi-Tech Companies, Exterior Surface Rs 1 x 10⁴ to < 1 x 10⁸ ohms per ANSI/ESD STM11.11
  Metal-Out lower exterior resistance retains less electrostatic charge than Metal-In bags
• Metal-Out Shielding Laminate 0.003” thick (3 mil)
  Protects ESD sensitive contents from electrostatic fields and electrostatic discharges (ESD) outside the ESD Protected Area
• <10 nJ Discharge Shielding Energy Penetration Test per ANSI/ESD STM11.31
  Meets ANSI/ESD S20.20 and ANSI/ESD S541 requirements for ESD shielding packaging inside and outside an ESD Protected Area (EPA)
• Dissipative Inner Surfaces Rs 1 x 10⁴ to < 1 x 10¹¹ ohms per ANSI/ESD STM11.11 meets Static Control Bag ANSI/ESD S11.4 Level 3
  ElectroStatic Charges removed when placed on a grounded surface or handled by a grounded operator
• Printed with ESD Protective Symbol and Lot Code Information
  Meets the requirements of ANSI/ESD S541 for quality control purposes
• 40% Light Transmission
  Allows for identification of bag contents.
• OpenTop and ZipTop styles are available
• Lead-free RoHS 2, REACH and Conflict Minerals Compliant

Many sizes are stocked in Sanford, NC.
