JBC Tools P1068 Protector — 18.5 x 24 mm

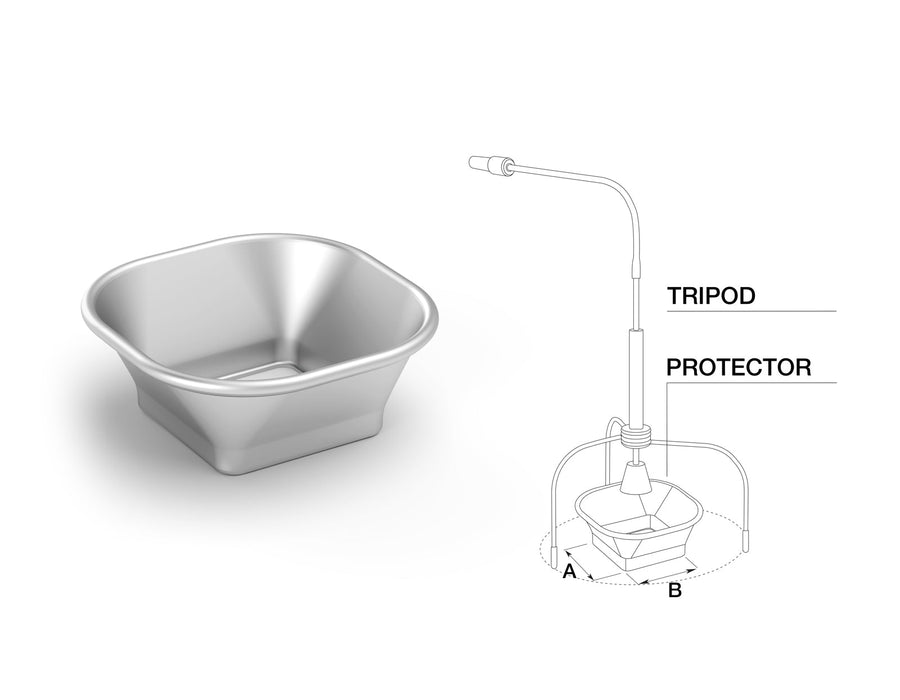

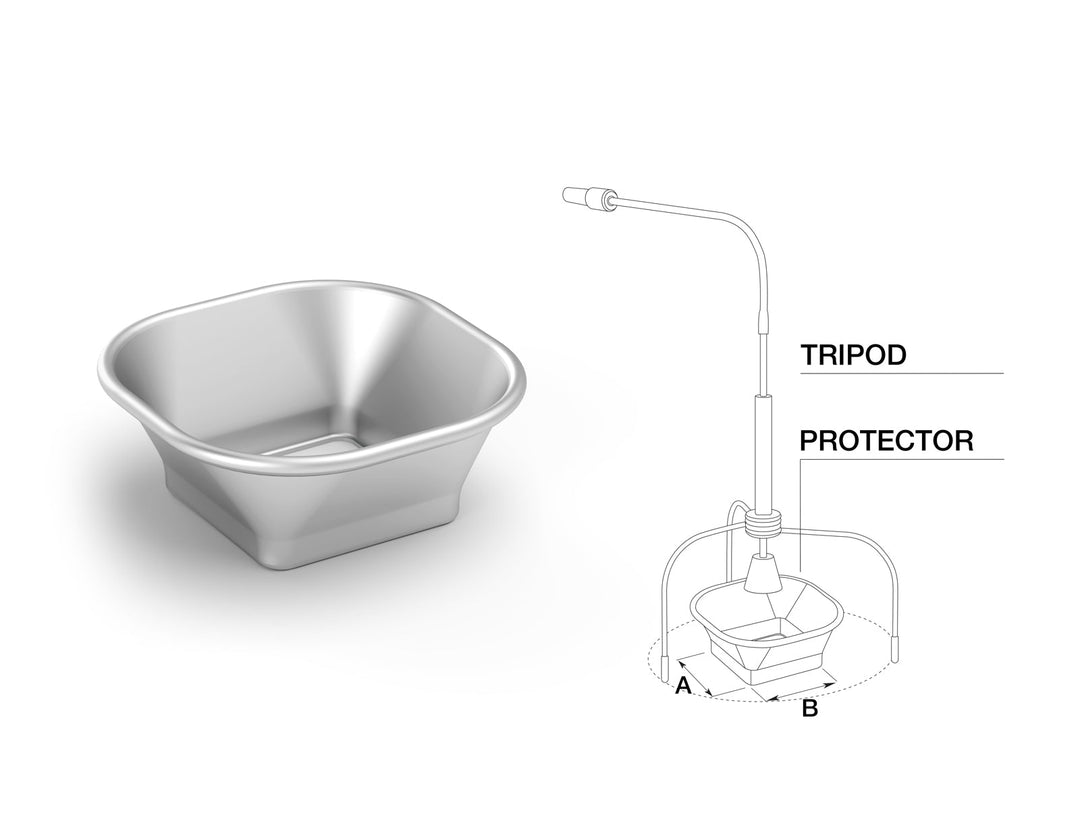

The JBC Tools P1068 is a 18.5 x 24 mm protector designed to concentrate heat on the target component during SMD desoldering while shielding adjacent components from thermal damage. Used in combination with a JBC tripod, it precisely directs hot air or conductive heat to the desired pad area, reducing the risk of collateral damage to nearby components during rework and desoldering operations.
Specifications
| Part Number | P1068 |
|---|---|
| Brand | JBC Tools |
| Type | Protector / Heat Shield |
| Dimensions | 18.5 x 24 mm |
| Net Weight | 8 g (0.02 lb) |
| Compatible With | JBC tripod systems |
| Application | SMD desoldering and rework heat concentration |
| Manufacturer | JBC Tools |
Key Features
- Concentrates heat on the target area — directs thermal energy precisely to the component being desoldered, improving process efficiency and reducing dwell time
- Shields adjacent components — protects neighboring SMD components from heat exposure during rework, reducing collateral damage risk
- Tripod compatible — designed to work with JBC tripod accessories for hands-free positioning during desoldering operations
- 18.5 x 24 mm format — sized for medium SMD packages; select the protector size that matches the component footprint being reworked
- Part of JBC’s full protector range — available in multiple shapes and sizes to match a wide variety of SMD component footprints
Applications
- SMD rework and desoldering — heat concentration on QFP, SOIC, and medium-pitch SMD packages
- PCB repair — protecting adjacent components during localized rework in densely populated boards
- Electronics manufacturing — production rework stations requiring precise thermal control
- Contract electronics manufacturing (EMS/CEM) — high-mix rework with varied component sizes
Frequently Asked Questions
What does a JBC protector do?
A JBC protector concentrates heat from a soldering or rework tool onto the specific component being desoldered while physically shielding surrounding components from heat exposure. This reduces the risk of thermal damage to adjacent SMD parts on densely populated PCBs.
How do I select the right protector size?
The protector should match or closely fit the footprint of the component being desoldered. JBC offers protectors in a range of shapes and sizes — select the P1068 (18.5 x 24 mm) for medium SMD packages. For other component sizes, see MTE’s full JBC protector selection.
Does the P1068 require a tripod?
The P1068 is designed to work with a JBC tripod for hands-free positioning, which is the recommended setup for precise heat concentration. It can also be hand-held in some applications, but tripod use provides more consistent results.
Is this compatible with all JBC rework stations?
JBC protectors are accessories designed for use with JBC hot air and desoldering systems. Verify compatibility with your specific JBC rework station model when selecting protectors and tripods.
