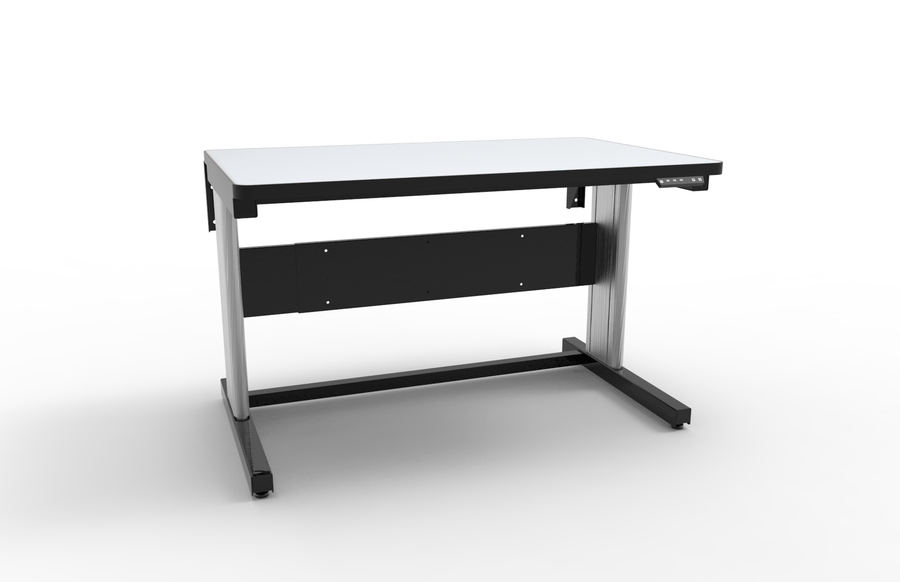

Production Basics 4305 Dual Leg Electric Height Adjustable Workstation with ESD Laminate, 30 in D x 60 in W
Production Basics 4305, Dual Leg Electric Height Adjustable Workstation with ESD Laminate, 30 in D x 60 in W
The Production Basics 4305 Easy-Lift Dual Leg Workstation is an ergonomic, electric push-button height adjustable workstation with an ESD static dissipative laminate worksurface. Height adjusts from 30" to 42" to accommodate both sitting and standing tasks. The ESD worksurface features an integrated grounding bolt and static dissipative laminate (10⁶ to 10⁹ Ω) for rapid charge drainage. 400 lb weight capacity (evenly distributed).
Note: Lift system weight capacity does not include the worksurface or accessories. Final capacity varies by surface size and accessory configuration.
Product Specifications
| Specification | Value |
|---|---|
| Part Number | 4305 |
| Manufacturer | Production Basics |
| Worksurface Size | 30 in D x 60 in W |
| Surface Thickness | 1.25" |
| Height Range | 30" to 42" (electric push-button) |
| Weight Capacity | 400 lbs (evenly distributed)* |
| Unit Weight | 130 lbs |
| Frame Material | Steel support frame, extruded aluminum legs |
| Worksurface Material | Industrial grade ESD laminate |
| ESD Surface Resistivity | 10⁶ to 10⁹ Ω |
| Grounding | Integrated grounding bolt and wire included |
| Leg Configuration | Dual leg |
| Leveling Feet | 4 included |
Kit Contents
- 1 Easy-Lift frame
- 1 ESD laminate worksurface (30" x 60")
- 1 Ground bolt & wire
- 1 Electric hydraulic module
- 4 Leveling feet
Key Features & Benefits
- Electric Push-Button Height Adjustment — Effortlessly adjusts from 30" to 42" for sit-stand flexibility without manual effort
- ESD Static Dissipative Laminate — 10⁶–10⁹ Ω surface resistivity with integrated grounding bolt for ANSI/ESD S20.20 compliant workstations
- 400 lb Weight Capacity — Heavy-duty steel and aluminum frame supports demanding production and assembly loads
- Dual Leg Design — Stable, open-front configuration provides maximum legroom and under-bench storage access
- Accessory Compatible — Uprights accept most standard Production Basics accessories for shelves, monitor arms, and tool holders
- Leveling Feet — 4 adjustable leveling feet for stability on uneven floors
Typical Applications
- ESD-controlled electronics assembly and rework workstations
- Sit-stand ergonomic workstations in manufacturing and production
- PCB inspection and test stations
- Laboratory and cleanroom benching
- ANSI/ESD S20.20 compliant workstation programs
Frequently Asked Questions
Is the ESD laminate surface grounded?
Yes — the worksurface includes an integrated grounding bolt and wire. Connect a standard ESD grounding cord from the bolt to a verified common point ground to complete the ESD ground path.
What is the height adjustment range?
The electric push-button system adjusts from 30" to 42" worksurface height, accommodating both seated and standing operators.
What is the weight capacity?
400 lbs evenly distributed. Note that this capacity applies to the lift system and does not include the weight of the worksurface itself or accessories — final capacity varies by configuration.
Can I add shelves or accessories to this workstation?
Yes — the uprights are compatible with most standard Production Basics accessories including shelves, monitor arms, pegboards, and tool holders. Contact MTE Solutions for compatible accessories.
Is a 30" x 72" version available?
Yes — the Production Basics 4310 offers the same dual leg electric configuration in a 30" x 72" worksurface. Contact MTE Solutions for other size options.
