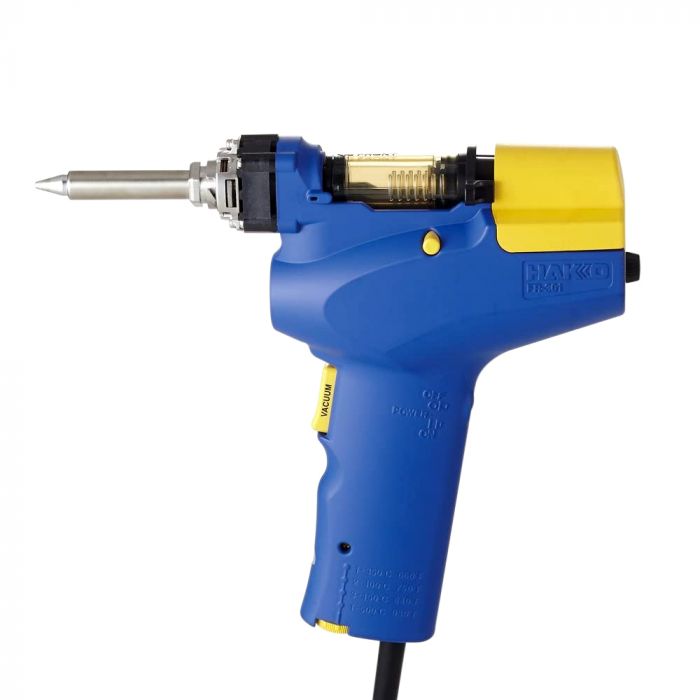

Hakko FR301-03/P Portable Desoldering Tool
Hakko FR301-03/P Portable Desoldering Tool
The Hakko FR-301 is an improved version of the legendary FR-300, featuring faster temperature recovery time for greater efficiency in desoldering operations. Its quick-change nozzle system uses Hakko's versatile N61 series nozzle tips, and the built-in single-cylinder diaphragm pump delivers strong, consistent vacuum for clean solder removal. Ceramic heating element, ergonomic grip, and temperature control handle make the FR-301 the go-to portable desoldering tool for professional electronics assembly and rework.
Key Specifications
| Specification | Value |
|---|---|
| Model | FR-301 |
| Part Number | FR301-03/P |
| Input Voltage | 120 VAC, 50/60 Hz |
| Power Consumption | 140W |
| Temperature Range | 350–500°C (660–930°F) |
| Heating Element | Ceramic |
| Vacuum Source | Single-cylinder diaphragm pump |
| Vacuum Pressure | 81 kPa (610 mm Hg / 24 in. Hg) |
| Suction Flow | 11 L/min |
| Tip to Ground Resistance | <2 Ohms |
| Tip to Ground Potential | <2 mV |
| Temperature Stability | Meets or exceeds IPC J-STD-001 |
| Nozzle Series | N61 (quick-change) |
| Standard Nozzle Included | N61-08 (ø1.0mm) |
| Weight (without cord) | 0.52 kg (1.1 lb) |
| Country of Origin | Japan |
Key Features
- Improved temperature recovery — faster than the FR-300 for greater efficiency in high-volume desoldering
- Ceramic heating element — fast heat-up and stable temperature performance
- Quick-change N61 nozzle system — tool-free nozzle changes for fast switchover between tip sizes
- 81 kPa vacuum pressure — strong, consistent suction for clean solder removal
- Temperature control handle — adjust temperature directly on the tool without a separate station
- Ergonomic grip — reduces operator fatigue during extended desoldering sessions
- IPC J-STD-001 compliant — meets temperature stability and accuracy requirements
- ESD safe — tip to ground resistance <2 Ohms, tip to ground potential <2 mV
What's in the Box
| Item | Part No. |
|---|---|
| FR-301 Desoldering Tool | — |
| Carrying Case | C5042 |
| Ceramic Filter (1 installed + 2 replacements) | A5044 |
| Nozzle Wrench | B5106 |
| Pre Filter | B5104 |
| Iron Holder | C5003 |
| Cleaning Pin for ø1.0mm nozzle | B1087 |
| Cleaning Pin (for heating element) | B1085 |
| Standard Nozzle ø1.0mm | N61-08 |
| Instruction Manual | — |
Frequently Asked Questions
What is the difference between the Hakko FR-301 and FR-300?
The FR-301 is an improved version of the FR-300 with faster temperature recovery time, allowing for more efficient desoldering in high-volume production environments. Both use the N61 nozzle series and ceramic heating element.
What nozzles are compatible with the FR-301?
The FR-301 uses Hakko's N61 series nozzle tips with a quick-change system. The standard N61-08 (ø1.0mm) nozzle is included. Additional N61 series nozzles in various sizes are available separately.
Is the FR-301 ESD safe?
Yes — the FR-301 has a tip to ground resistance of less than 2 Ohms and tip to ground potential of less than 2 mV, making it safe for use on ESD-sensitive components and assemblies.
Does the FR-301 meet IPC J-STD-001 requirements?
Yes — the FR-301 meets or exceeds IPC J-STD-001 temperature stability and accuracy requirements for soldering and desoldering equipment.
