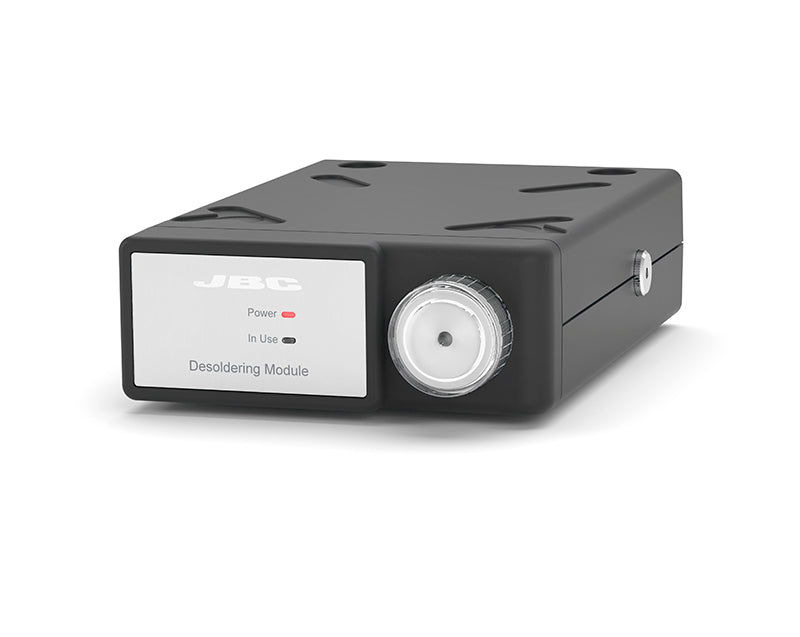

JBC Tools MV-A, Pneumatic Desoldering Module for DI

Clean and dry compressed air is required.

Pneumatic Desoldering Module is indispensable for a complete desoldering process.

By using compressed air and a Venturi valve, the system provides the best results due to its instantaneous vacuum ramp.

It is supplied with easy-to-change filters for extending the life of the module.

MV is compatible with CDD Desoldering station and DIU Control Unit, which manage the tip temperature while the module removes the molten solder.

It works with the comfortable DS360 Micro Desoldering Iron or DR560 Desoldering Iron and their corresponding tips.

PRODUCT COMPOSITION
1 MV-A Pneumatic Desoldering Module
SPECIFICATIONS
Air pressure: 4 - 6 Bar
Vacuum (at 6 bar): 90% / 680mmHg / 26.8inHg
Flow rate: 15 SLPM
Operating temp. range: 10-40 ºC / 50-104 ºF
ESD safe

DIMENSIONS AND WEIGHT
Control Unit
225 x 145 x 55 mm / 0.68 kg.

8.86 x 5.71 x 2.17 in / 1.50 lb.
Package
280 x 195 x 115 mm / 0.98 kg.

11.02 x 7.68 x 4.53 in / 2.16 lb.
MV Pneumatic Desoldering Module for DIU
