Transforming Technologies BFN803LED, Overhead AC Ionizer, 3 Fan, Led Task Lights
Transforming Technologies BFN803LED, Overhead AC Ionizer, 3 Fan, Led Task Lights

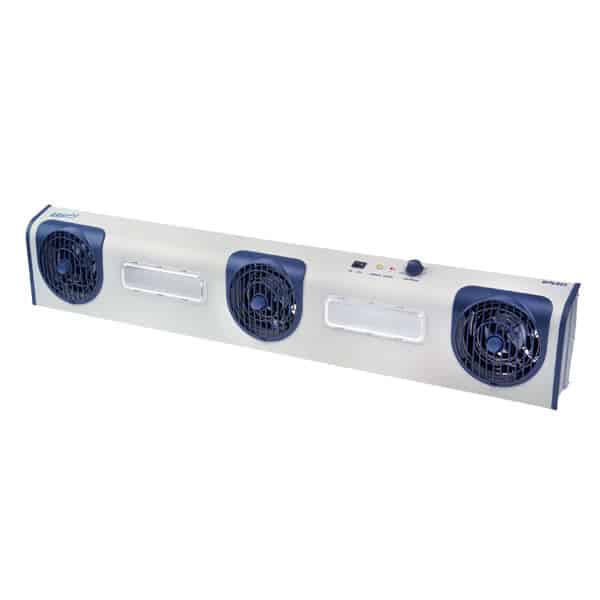

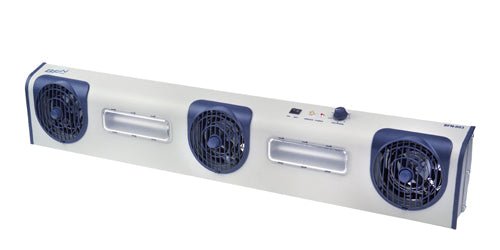

The Transforming Technologies BFN803LED is a three-fan overhead AC ionizer with two integrated LED task lights. Its manufacturer-listed 2 × 4 ft coverage area suits workstations needing ionized airflow from above without placing a blower on the bench. Variable fan speed and an integrated emitter cleaning device support routine operation and maintenance.
Best Uses / Applications
- Electronic assembly workstations handling static-sensitive components.
- Medical device assembly and packaging processes requiring localized static control.
- Semiconductor manufacturing work areas.
- Benches where overhead ionization and task lighting can preserve usable work surface.
Key Features
- Three fans with AC ionization output.
- Two integrated LED task lights.
- Variable fan speed control.
- Integrated emitter point cleaner.
- Removable front and rear fan guards with automatic shut-off safety sensor.
- Steel enclosure with off-white powder-coat finish.
Technical Specifications
| Specification | Manufacturer data |
|---|---|
| Ordering SKU / datasheet model | BFN803LED / BFN803 |
| Brand | Transforming Technologies |
| Type / fans | Overhead AC ionizer / three fans |
| Task lighting | Two LED task lights |
| Coverage area | 2 × 4 ft, per manufacturer product page |
| Typical balance | +10 V, as printed in the manufacturer datasheet |
| Typical decay time | Less than 2 seconds from 1,000 V to 100 V at 12 inches |
| Power input | 110 V AC, 60 Hz, 110 W; 220 V AC, 50 Hz available by custom order |
| Status indication | ON/OFF status light |
| Operating temperature | 32–122°F |
| Audible noise | 52 dB(A) at 1 meter |
| Enclosure / finish | Steel / off-white powder coat |
| Unit dimensions | 38.78 in W × 6.75 in H × 3.35 in D, as printed in the datasheet |
| Manufacturer unit weight | 18.7 lb (8.5 kg); not a packed shipping weight |
| Warranty | 1-year limited manufacturer warranty |
| Manufacturer performance statement | Meets ANSI/ESD S20.20 offset-voltage requirements as tested per ANSI/ESD STM3.1 |
The June 6, 2023 datasheet prints metric dimensions that do not agree with its inch dimensions. Inch dimensions are reproduced above; confirm critical installation clearances with the manufacturer before mounting.
Balance and decay values are typical manufacturer measurements using a charged plate monitor. Verify offset voltage and discharge time at actual working positions and fan settings. The manufacturer's offset-voltage statement does not establish compliance of an entire workstation or ESD program.
BFN803LED vs. BFN802LED
| Selection consideration | BFN803LED | BFN802LED |
|---|---|---|
| Fans | Three | Two |
| Manufacturer-listed coverage | 2 × 4 ft | 2 × 3 ft |
| Lighting | Two LED task lights | Integrated LED task lighting |
| Datasheet power input | 110 V AC, 60 Hz, 110 W | 110 V AC, 60 Hz, 70 W |
| Selection priority | Wider specified coverage and suitable overhead mounting space | Smaller specified coverage area and suitable overhead mounting space |
Frequently Asked Questions
Are BFN803 and BFN803LED the same model reference?
The manufacturer product page lists the ordering SKU BFN803LED, while the datasheet calls the model BFN803. This listing is for the three-fan overhead unit with two LED task lights.
What area does the BFN803LED cover?
The manufacturer's product page specifies 2 × 4 ft coverage. Verify performance at the actual handling locations because mounting position, obstructions and fan settings affect the installation.
How does it compare with the BFN802LED?
The BFN803LED has three fans and a specified 2 × 4 ft coverage area; the BFN802LED has two fans and specified 2 × 3 ft coverage. Both use AC ionization and include LED task lighting. Choose based on work area, mounting space and measured performance rather than fan count alone.
What power input is required?
The datasheet lists 110 V AC, 60 Hz, 110 W. A 220 V AC, 50 Hz version is listed as custom order; confirm the required version before ordering.
How should the ionizer be maintained?
The unit includes an integrated emitter cleaning device and removable fan guards with an automatic shut-off sensor. Follow the manufacturer's operating instructions, and base cleaning and verification intervals on the environment and measured performance rather than an unsupported fixed calendar interval.
Does this replace grounding or establish workstation compliance?
No. Ionization helps neutralize charge on materials that cannot be effectively grounded and supplements personnel and workstation grounding. The datasheet's specific statement concerns ANSI/ESD S20.20 offset-voltage requirements tested per ANSI/ESD STM3.1, not every requirement of an entire ESD program.
Technical Data Sheet
Download the BFN803 technical data sheet (PDF, revision June 6, 2023)
