Transforming Technologies BFN802LED, Overhead AC Ionizer, 2 Fan, Led Task Light
Transforming Technologies BFN802LED, Overhead AC Ionizer, 2 Fan, Led Task Light

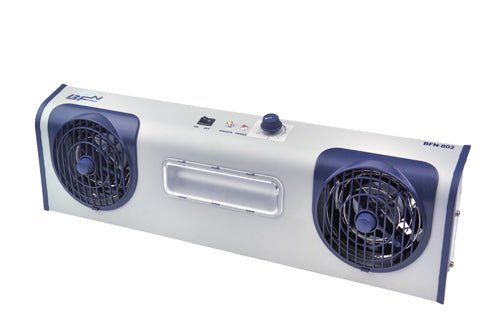

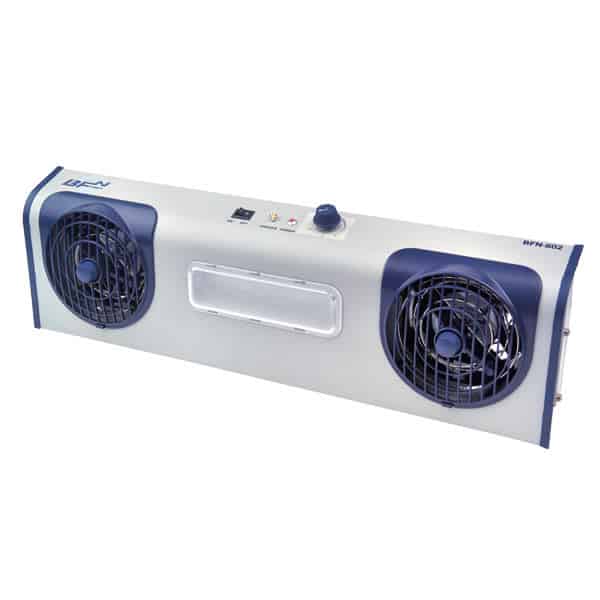

The Transforming Technologies BFN802LED is a two-fan overhead AC ionizer with integrated LED task lighting for localized static-control protection above a workstation. Its specified 2 × 3 ft coverage area, variable fan speed and built-in emitter cleaning device make it a practical choice when bench space is valuable and the work area also needs illumination.
Best Uses / Applications
- Electronic assembly workstations handling static-sensitive components.
- Medical device assembly and packaging processes requiring localized static control.
- Semiconductor manufacturing work areas where overhead ionization is appropriate.
- Benches where an overhead unit can provide ionized airflow without occupying the work surface.
Key Features
- Two-fan AC ionization with integrated LED task lighting.
- Variable fan speed for adjusting airflow to the task.
- Integrated emitter point cleaner for routine maintenance.
- Removable front and rear fan guards with an automatic shut-off safety sensor.
- Steel enclosure with an off-white powder-coat finish.
Technical Specifications
| Specification | Manufacturer data |
|---|---|
| Ordering SKU / datasheet model | BFN802LED / BFN802 |
| Ionization / fans | AC ionization / two fans |
| Task lighting | Integrated LED |
| Effective coverage | 2 × 3 ft |
| Typical balance | +10 V, as printed in the manufacturer datasheet |
| Typical decay time | Less than 2 seconds from 1,000 V to 100 V at 12 inches, fan speed on high |
| Power input | 110 V AC, 60 Hz, 70 W; 220 V AC, 50 Hz available by special order |
| Status indication | ON/OFF status light |
| Operating temperature | 32–122°F (0–50°C) |
| Audible noise | 48 dB(A) at 1 meter |
| Enclosure / finish | Steel / off-white powder coat |
| Unit dimensions | 23 in W × 6.75 in H × 3.35 in D |
| Manufacturer unit weight | 12.8 lb (5.8 kg); not a packed shipping weight |
| Warranty | 1-year limited manufacturer warranty |
| Manufacturer performance statement | Meets ANSI/ESD S20.20 offset-voltage requirements as tested per ANSI/ESD STM3.1 |
Performance values are typical manufacturer test results, not a guarantee at every installation. Verify offset voltage and discharge time at the actual working position with a charged plate monitor. The offset-voltage statement does not establish compliance of an entire workstation or ESD program.
Overhead vs. Benchtop Ionization
| Selection consideration | BFN802LED overhead ionizer | Benchtop ionizer |
|---|---|---|
| Placement | Above the workstation, leaving the work surface available | On the bench, directed toward a localized task |
| Lighting | Integrated LED task lighting | Depends on the model; separate task lighting may be needed |
| Selection priority | Specified 2 × 3 ft coverage, overhead mounting suitability and measured performance at the work surface | Available bench space, airflow direction and measured performance at the task |
Frequently Asked Questions
Are BFN802 and BFN802LED the same model reference?
The manufacturer's product page lists the ordering SKU BFN802LED, while the supplied datasheet identifies the model as BFN802. This listing is for the two-fan overhead unit with LED task lighting.
What area does the BFN802LED cover?
The manufacturer specifies a 2 × 3 ft effective coverage area. Confirm performance at the actual component-handling locations, since mounting height, airflow obstructions and fan settings affect the installation.
How fast does it remove static charge?
The datasheet lists a typical decay time below 2 seconds from 1,000 V to 100 V at a distance of 12 inches with the fan on high. Different distances or operating settings should be evaluated rather than assumed to match that result.
Which power supply does it require?
The standard datasheet specification is 110 V AC, 60 Hz, 70 W. A 220 V AC, 50 Hz version is listed as special order; confirm the required version before ordering.
How should the emitters be maintained?
The BFN802 includes an integrated emitter point cleaner and removable guards for maintenance access. Follow the manufacturer's operating instructions and set the cleaning interval according to the environment and measured performance, rather than relying on a universal calendar interval.
Does an ionizer replace grounding or prove workstation compliance?
No. Ionization supplements grounding by helping neutralize charge on materials that cannot be effectively grounded. The manufacturer's claim here is specifically that the BFN802 meets ANSI/ESD S20.20 offset-voltage requirements when tested per ANSI/ESD STM3.1. Validate the complete workstation against your ESD control plan.
Technical Data Sheet
Download the Transforming Technologies BFN802 datasheet (PDF, revision June 6, 2023)
