Hakko A1471, BGA Nozzle for 852; 13 x 13 x 12.4mm
Hakko A1471 BGA Nozzle – 13 x 13 x 12.4mm | For 852 SMD Rework Stations

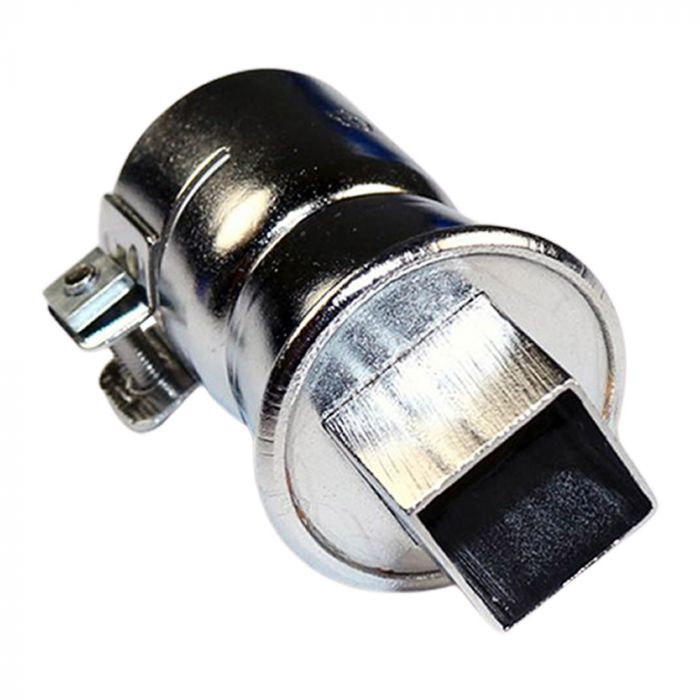

The Hakko A1471 is a 13 x 13 x 12.4mm BGA nozzle designed for use with Hakko 852-series SMD hot air rework stations and compatible FR-series rework systems. It concentrates hot airflow precisely over a 13mm BGA package footprint for controlled, repeatable reflow and removal without disturbing adjacent components.
Sold individually.
Specifications
| Part Number | A1471 |

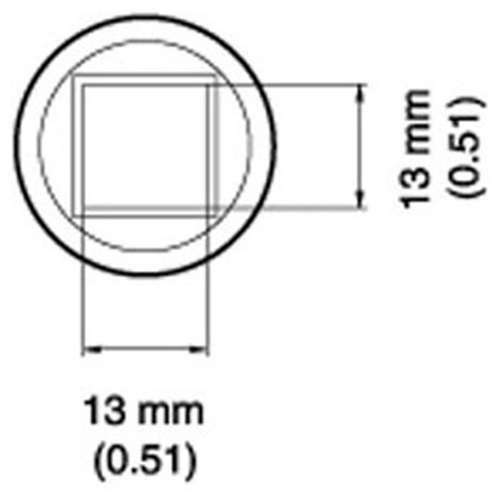

| Nozzle Dimensions | 13 x 13 x 12.4(H) mm |
| Type | BGA nozzle |
| Compatible Systems | Hakko FR-811, FR-810B, FR-810 (with B5058 adapter), FR-803B, FR-803, FR-802, FR-801, 850, 850B, 850D, 852 |
| Adapter Required | B5058 adapter required for FR-810 only |
| Manufacturer | Hakko |
Frequently Asked Questions
What BGA package size does the A1471 nozzle fit?
The A1471 is sized for 13 x 13mm BGA packages. The nozzle opening matches the package footprint to direct hot air evenly across all solder balls simultaneously, ensuring uniform reflow temperature across the entire BGA array. Using a correctly sized nozzle is critical for preventing cold joints on one side and overheating on the other.
Does the A1471 work with the Hakko FR-810?
Yes, but it requires the Hakko B5058 adapter for use with the FR-810. Without the adapter, the nozzle will not seat correctly on the FR-810 nozzle mount. The FR-810B and FR-811 do not require the adapter. See Hakko Product Bulletin PB377 for full compatibility details.
How do I select the right BGA nozzle size for my application?
Match the nozzle opening to the BGA package body size, not the ball array. A nozzle that is too small will overheat the center balls; one that is too large will heat adjacent components. Hakko offers a full range of BGA nozzle sizes — contact MTE Solutions if you need a different size for your specific package.
Is the A1471 in stock and ready to ship?
Yes, the Hakko A1471 is in stock at MTE Solutions and ships same or next business day. We carry a broad selection of Hakko nozzles, tips, and rework accessories — contact us for volume pricing or to find the right nozzle for your BGA package.
