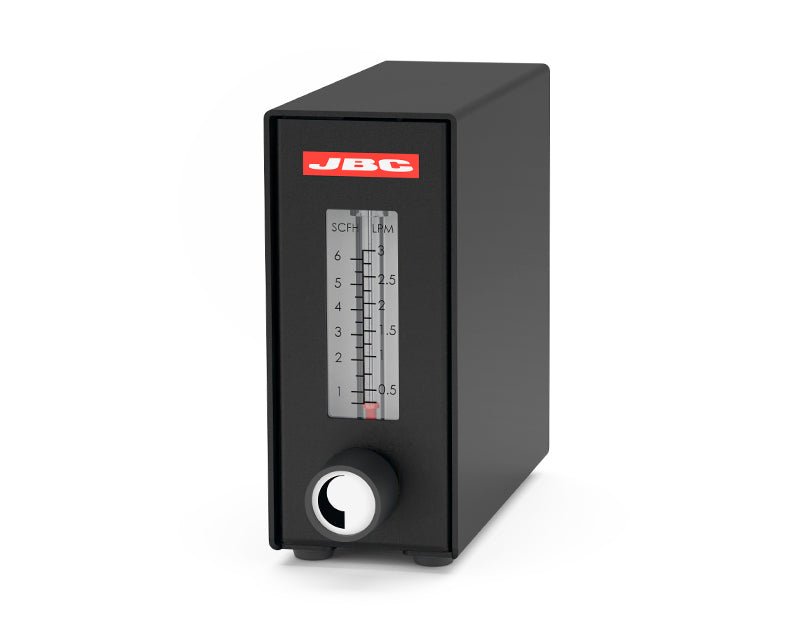

JBC Tools MN-A, Nitrogen Flow Regulator for DIU
Nitrogen improves the quality of any solder joint as it provides extra heat and helps prevent oxidation during soldering processes.
MN regulates nitrogen flow to the soldering tip in order to optimize consumption.
It automatically activates the flow when you remove Nitrogen Handle (T210N or T245N) from the stand. The flow stops when the handle is placed back and the tip temperature drops to the sleep temperature.
It requires GN Nitrogen Generator or an available nitrogen supply at the operators' bench.
MN works with DIU Control Unit and the discontinued DD or DM Control Units.
PRODUCT COMPOSITION
1 MN Nitrogen Flow Regulator for DIU
SPECIFICATIONS
Net weight: 1,14 kg (2.52lb)
Size: 50x120x130 mm
0.20 x 0.47 x 5.12 in
Voltage: 24V (from control unit)
Power: 3W
N2 flow regulation: 0,5 - 3,5 SLPM (5 Bar)
Max. pressure: 6 Bar
Operating temp. range: 10-40 ºC / 50-104 ºF
ESD safe
DIMENSIONS AND WEIGHT
1.142 kg (2.52 lb)
1.298 kg (2.86 lb)
