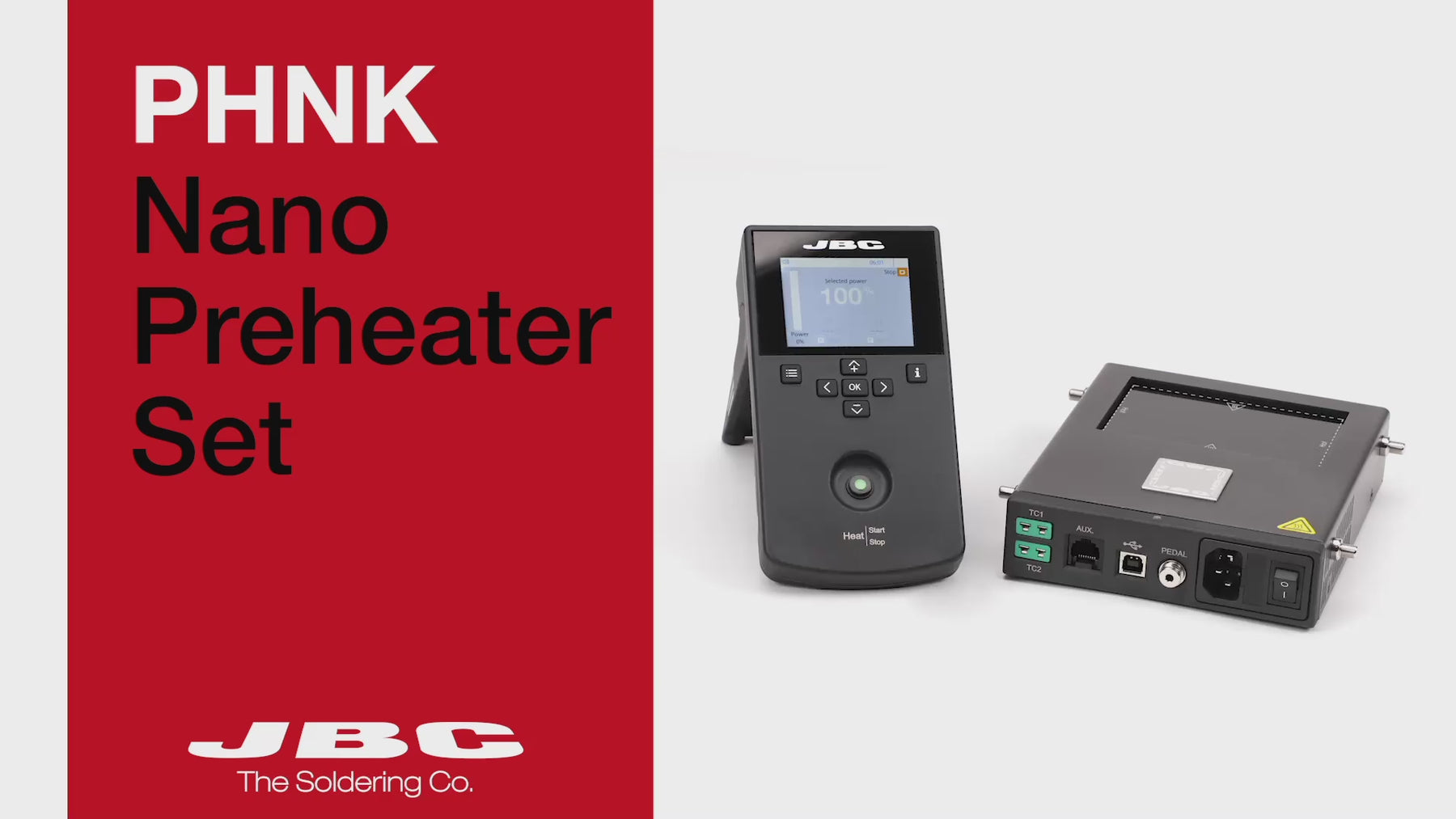

JBC Tools PHNE-1KA, 120V Nano Preheater Set
Reduce the risk of thermal shock while reworking
It is the best solution to rework small PCBAs, such as the ones commonly used in smartphones. It features a heating area of 108 x 70 mm / 4.25 x 2.75 in and two TC connections.
Matchless reliability in temperature accuracy and control of the PCBA so that no component is damaged.
The Preheater can be operated easily and conveniently via the intuitive menu navigation.
It features three work modes:
Power Mode allows working at a fixed power level with the option of using protection thermocouple.
Temperature Mode keeps the PCBA at a selected temperature, using the regulation thermocouple and, optionally, protection thermocouples.
Profile Mode allows control of the heating rate of the PCBA by the use of a control and protection thermocouple, without exceeding the recommended limit levels in each application. It features 22 customizable profiles.
Two thermocouple can be connected in any of the three work modes.

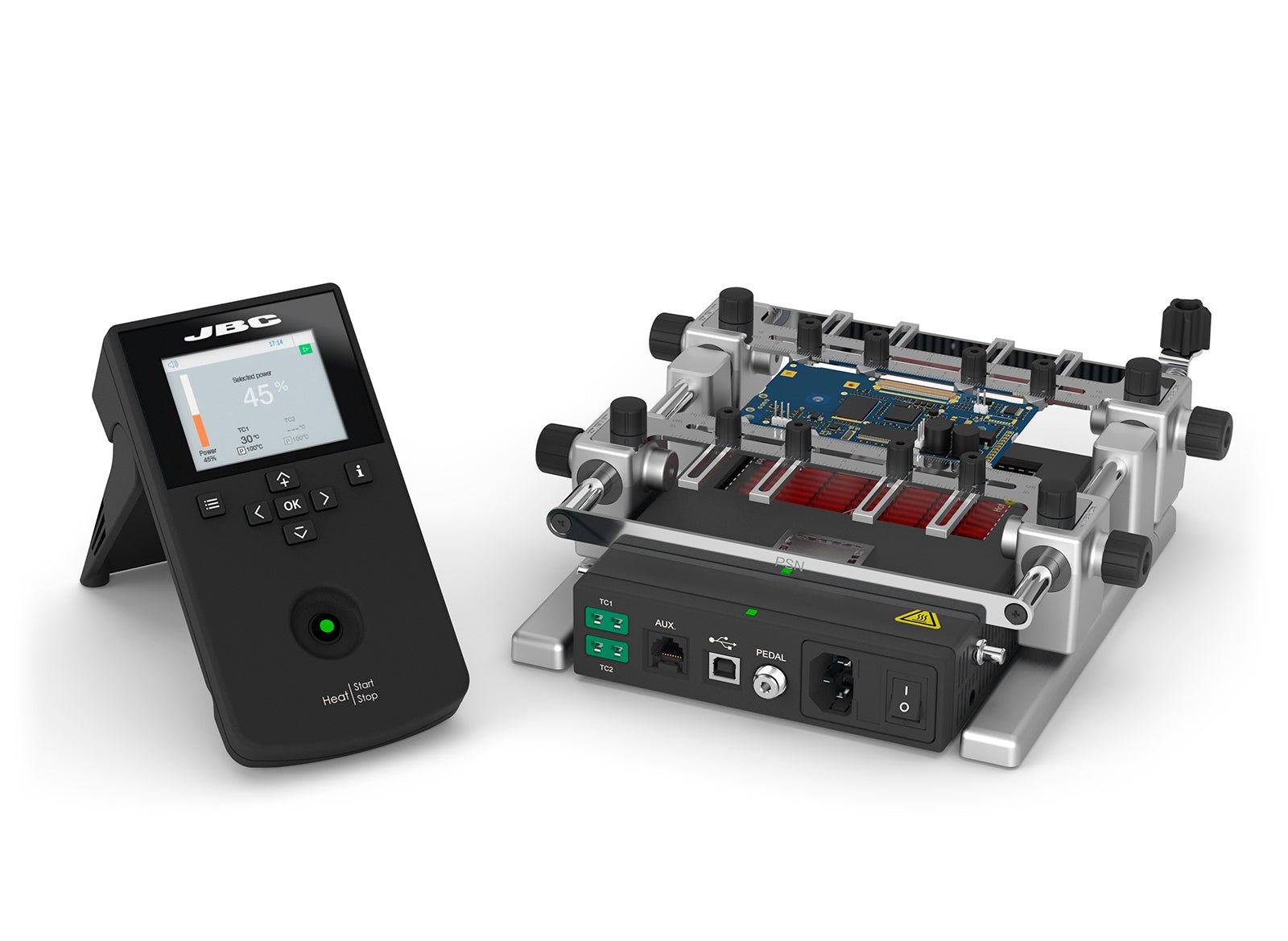

PSN Nano PBC Support is perfectly adapted to any type of PCB by means of its many adjustable components and its 3 adjustable clearance positions 22, 45 or 65 mm / 0.86, 1.77 or 2.55 in.
By means of JBC Software, the Preheater can be synchronized with other JBC Hot Air, Soldering Stations as well as Fume Extractor equipment in order for them to work jointly and to perform your rework process optimally.
It is the best solution to rework small PCBAs, such as the ones commonly used in smartphones. It features a heating area of 108 x 70 mm / 4.25 x 2.75 in and two TC connections.
Matchless reliability in temperature accuracy and control of the PCBA so that no component is damaged.
The Preheater can be operated easily and conveniently via the intuitive menu navigation.
It features three work modes:
Power Mode allows working at a fixed power level with the option of using protection thermocouple.
Temperature Mode keeps the PCBA at a selected temperature, using the regulation thermocouple and, optionally, protection thermocouples.
Profile Mode allows control of the heating rate of the PCBA by the use of a control and protection thermocouple, without exceeding the recommended limit levels in each application. It features 22 customizable profiles.
Two thermocouple can be connected in any of the three work modes.
PSN Nano PBC Support is perfectly adapted to any type of PCB by means of its many adjustable components and its 3 adjustable clearance positions 22, 45 or 65 mm / 0.86, 1.77 or 2.55 in.
By means of JBC Software, the Preheater can be synchronized with other JBC Hot Air, Soldering Stations as well as Fume Extractor equipment in order for them to work jointly and to perform your rework process optimally.
PRODUCT COMPOSITION
1 Heater unit
1 Console
SPECIFICATIONS
Operating temp. range: 10 - 50 ºC / 50 - 122 ºF
Temperature range: 50 to 250 ºC / 120 to 482 ºF
Heating area: 108 x 70 mm / 4.25 x 2.75 in
Temperature measurement: Thermocouple type K
Maximum power: 300 W
JBC-Set temperat. profiles: 3 profiles (2, 3 or 4 steps)
User profiles: 22 (up to 6 steps for each)
Maximum work time: 600 min or indefinite
ESD/EOS
ESD safe
CONNECTIVITY
USB-B (rear): Software PC
USB-A (front): Firmware update (Graphics management)
Aux: Console connection
Pedal: Connect a pedal (ref.P-005) to control the heater.
DIMENSIONS AND WEIGHT
PreHeater
179 x 165 x 42 mm / 3.10 kg.
7.05 x 6.50 x 1.65 in / 6.83 lb.
Package
280 x 280 x 164 mm / 4.20 kg.
11.02 x 11.02 x 6.46 in / 9.26 lb.
